In-plane thermal conductivity measurement

Output of InPlaneAnalysis_Metaslope. Souvik Das, 2023

Analyst: Michael Wasem
Analysis date: 10/10/2023
Material: INPL24

Underlying sample results:

• INPL24_1
• INPL24_2
• INPL24_3
• INPL24_4
• INPL24_5
• INPL24_6
• INPL24_7

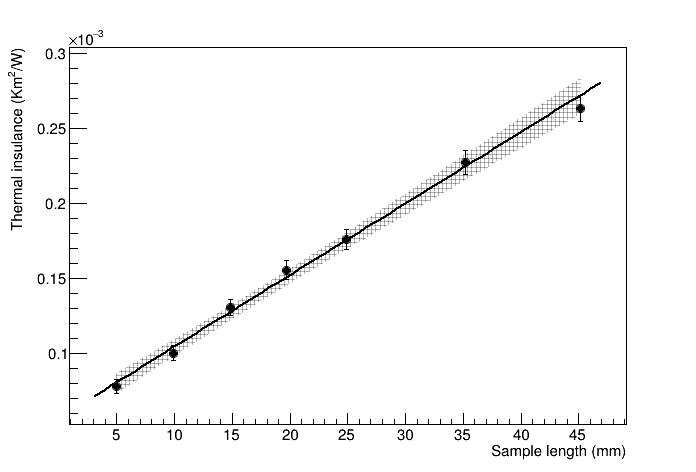

Iterative fit with no correlations between data points. k = 209.577 +/- 8.67548 W/mK

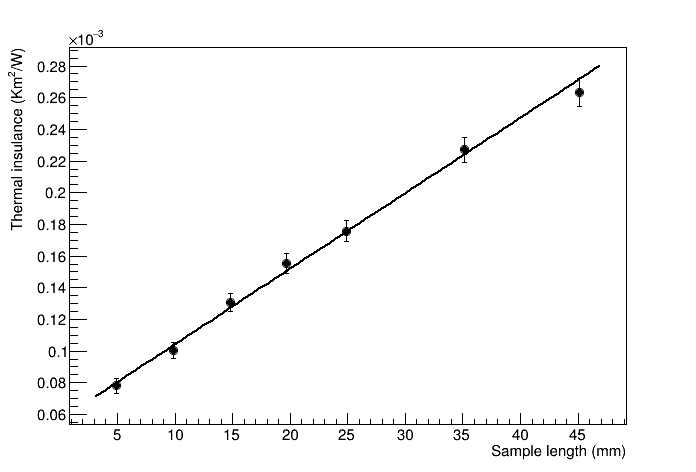

Analytical fit with 0.5 correlation between data point uncertainties. k = 209.692 +/- 9.19253 W/mK

Iterative Minuit fit with 0.5 correlation between data point uncertainties. k = 209.692 +/- 6.94615 W/mK
