Sample Results

In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/25/2023
Apparatus, InPlane
Material, INPL23
Sample, 6
Length (mm), 35.15, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 13.5
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 26.0296, 25.2866, 24.6984, 23.9975, 23.3503, 22.6145
Cold Fluxmeter Temperatures (C), 10.5201, 9.80179, 9.12944, 8.48449, 7.83957, 7.05327
Hot Fluxmeter Temperature Uncertainties (C), 0.00129779, 0.00155577, 0.00137254, 0.00103943, 0.00103217, 0.0012151
Cold Fluxmeter Temperature Uncertainties (C), 0.000773813, 0.000902541, 0.000843613, 0.00107597, 0.000869896, 0.000869101
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.742991, -1.33126, -2.03185, -2.6792, -3.41489
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.718147, -1.39077, -2.03558, -2.68033, -3.46644
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00226813, 0.00200327, 0.00181607, 0.00188549, 0.00168249
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00152025, 0.00088108, 0.00162116, 0.00105356, 0.00113368

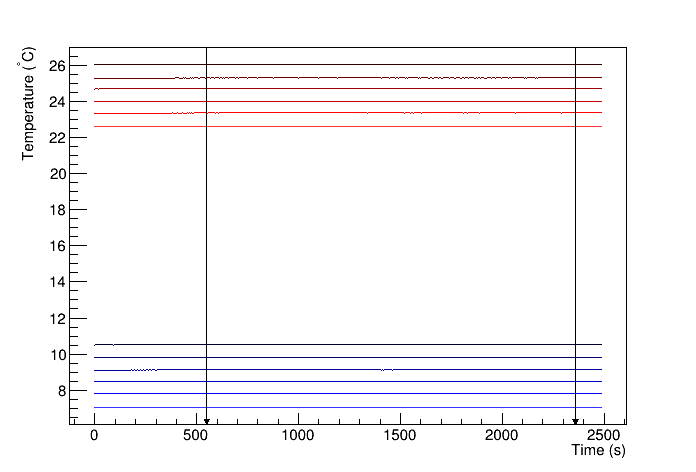

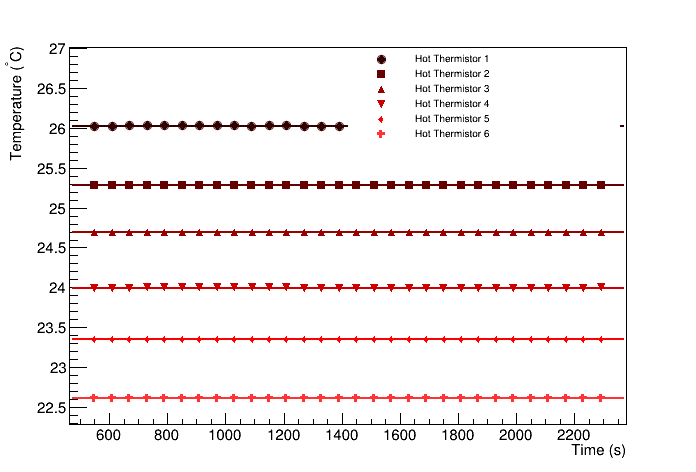

Heater Thermistors

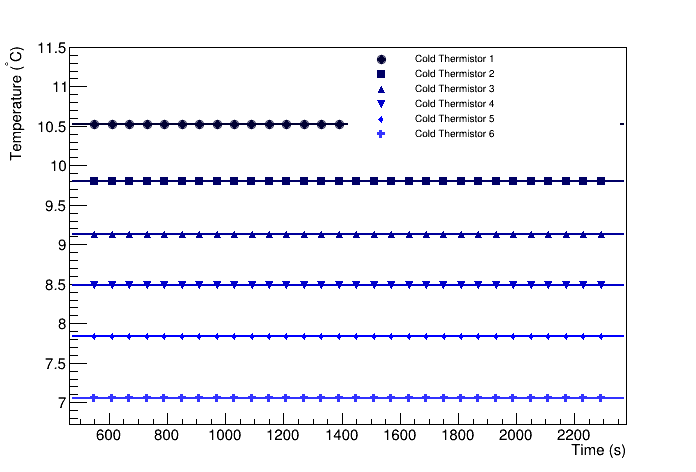

Cooler Thermistors

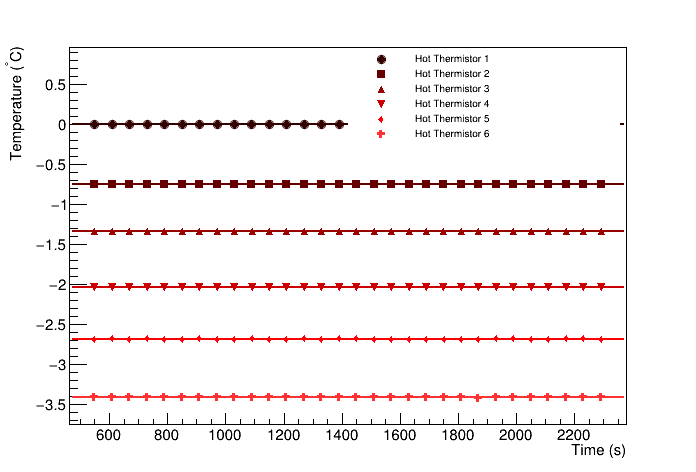

Heater Thermistors relative to hottest thermistor

Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 8/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 29923.7 +/- 1136.17
Cold fluxmeter flux (W/m^2), 30282.1 +/- 1149.81
Heat flux through sample (W/m^2), 30102.9 +/- 827.854
Heat flow through sample (W), 9.72588 +/- 0.26747
Temperature at hot end of sample (C), 21.9691 +/- 0.17205
Temperature at cold end of sample (C), 11.1934 +/- 0.08261
deltaT (C), 10.7758 +/- 0.190855
R (K/W), 1.10795, 0.0362418
RA (Km^2/W), 0.000227129, 7.93235e-06

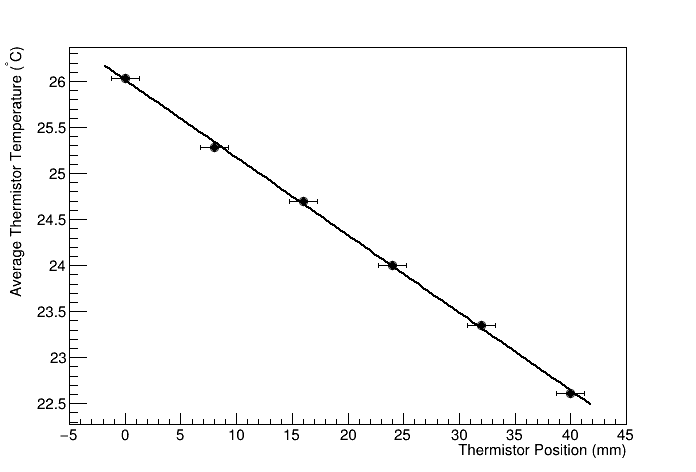

Hot flux meter fit

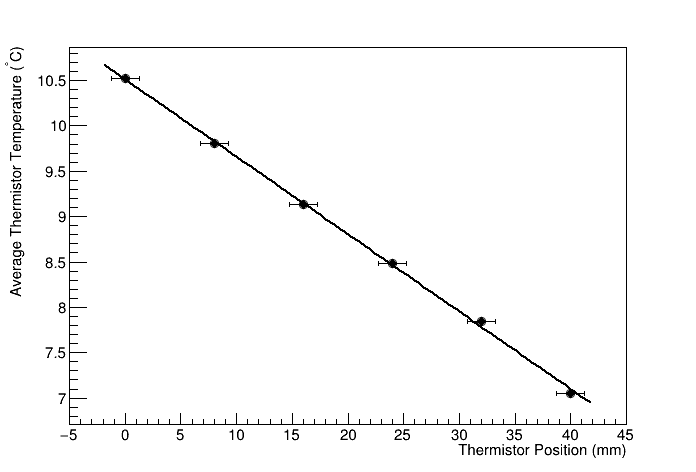

Cold flux meter fit

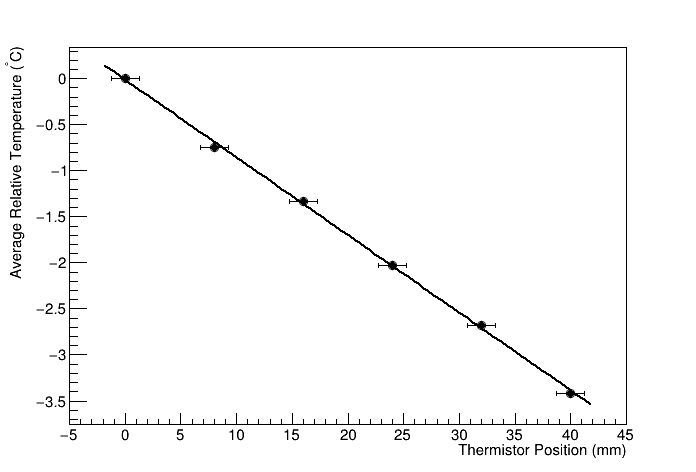

Hot flux meter difference fit

Cold flux meter difference fit
