Sample Results

In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/28/2023
Apparatus, InPlane
Material, INPL23
Sample, 5
Length (mm), 24.85, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 14.9
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 26.3845, 25.6337, 24.893, 24.1213, 23.4088, 22.5875
Cold Fluxmeter Temperatures (C), 11.7364, 10.9287, 10.1731, 9.44509, 8.709, 7.83971
Hot Fluxmeter Temperature Uncertainties (C), 0.00138248, 0.00148549, 0.00139834, 0.00131089, 0.00110984, 0.00126661
Cold Fluxmeter Temperature Uncertainties (C), 0.00079006, 0.000947282, 0.000822361, 0.00108978, 0.000850713, 0.000988641
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.750806, -1.4916, -2.2636, -2.97623, -3.79767
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.807306, -1.56298, -2.29097, -3.02668, -3.89683
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00235706, 0.00201304, 0.00199988, 0.00190032, 0.00186729
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.0015539, 0.00092452, 0.00156212, 0.00117686, 0.00115921

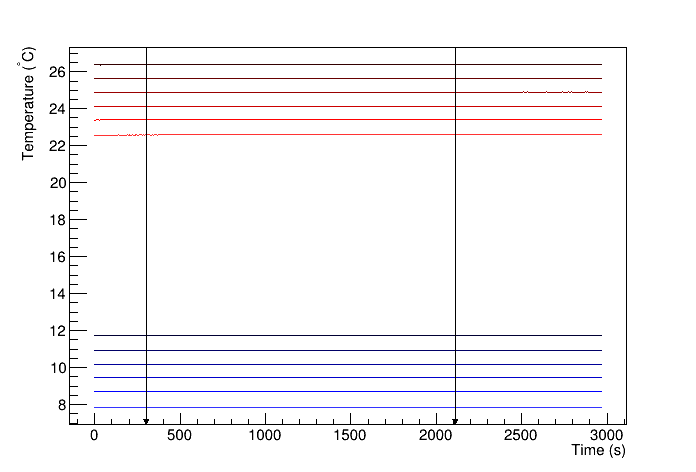

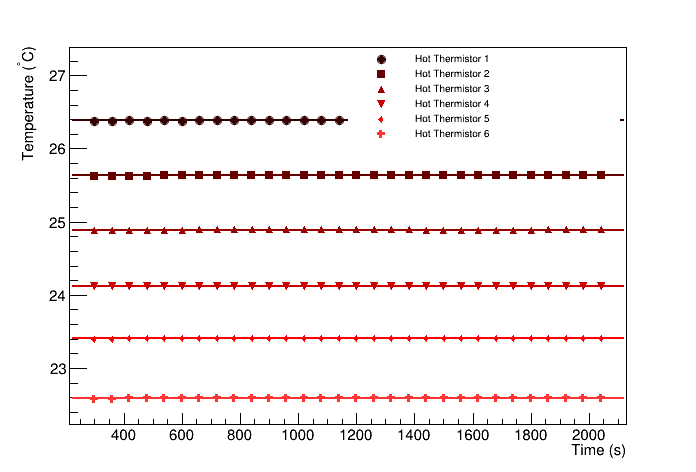

Heater Thermistors

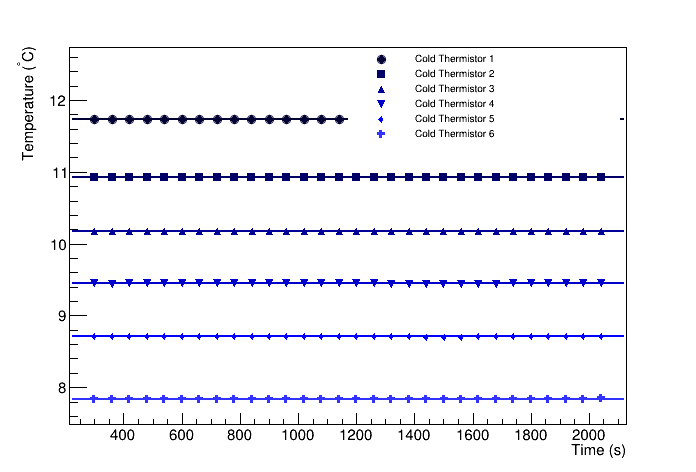

Cooler Thermistors

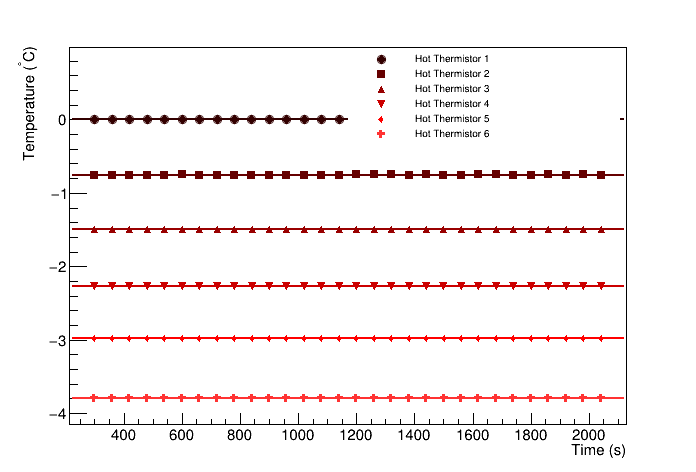

Heater Thermistors relative to hottest thermistor

Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 8/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 33526.2 +/- 1272.61
Cold fluxmeter flux (W/m^2), 34090.9 +/- 1294.25
Heat flux through sample (W/m^2), 33808.5 +/- 950.463
Heat flow through sample (W), 10.9231 +/- 0.307083
Temperature at hot end of sample (C), 21.861 +/- 0.192657
Temperature at cold end of sample (C), 12.4942 +/- 0.0929894
deltaT (C), 9.3668 +/- 0.213925
R (K/W), 0.85752, 0.0310601
RA (Km^2/W), 0.000175792, 6.72083e-06

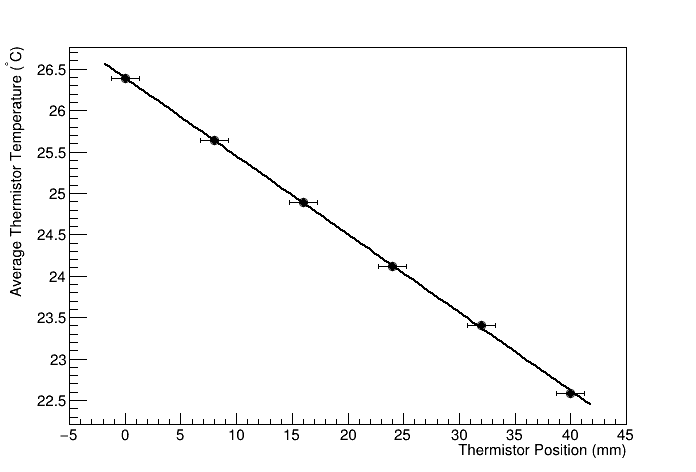

Hot flux meter fit

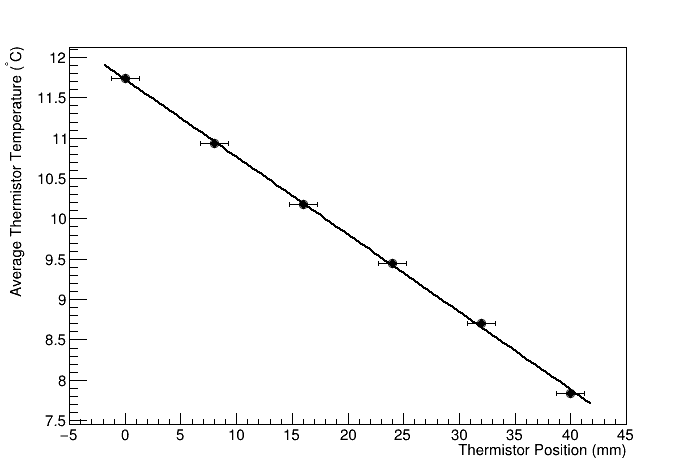

Cold flux meter fit

Hot flux meter difference fit

Cold flux meter difference fit
