Sample Results

In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/28/2023
Apparatus, InPlane
Material, INPL23
Sample, 1
Length (mm), 4.92, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 17.41
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 27.3235, 26.3306, 25.35, 24.3814, 23.4533, 22.3409
Cold Fluxmeter Temperatures (C), 14.9371, 13.8889, 12.8988, 11.9234, 10.9198, 9.8169
Hot Fluxmeter Temperature Uncertainties (C), 0.00137109, 0.00138437, 0.00154532, 0.00151465, 0.00111484, 0.00142198
Cold Fluxmeter Temperature Uncertainties (C), 0.000895051, 0.000929791, 0.000866581, 0.00115187, 0.000981848, 0.00116763
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.993162, -1.97321, -2.94199, -3.87021, -4.9827
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -1.04814, -2.03812, -3.01378, -4.01703, -5.12003
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00215514, 0.00199381, 0.00197941, 0.0018674, 0.00180428
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00164579, 0.000999796, 0.00166015, 0.00132945, 0.00133939

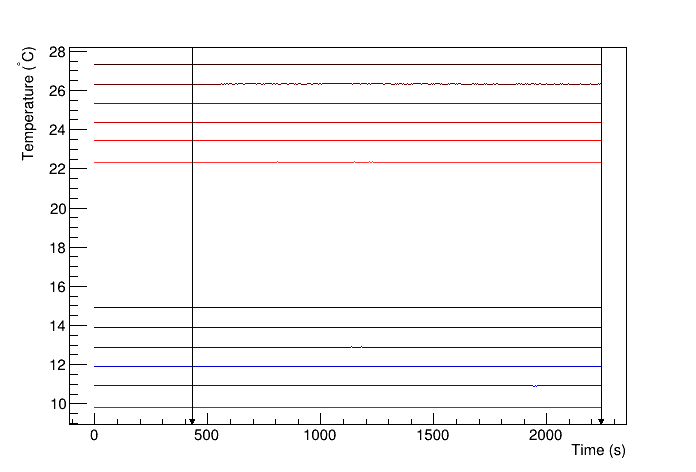

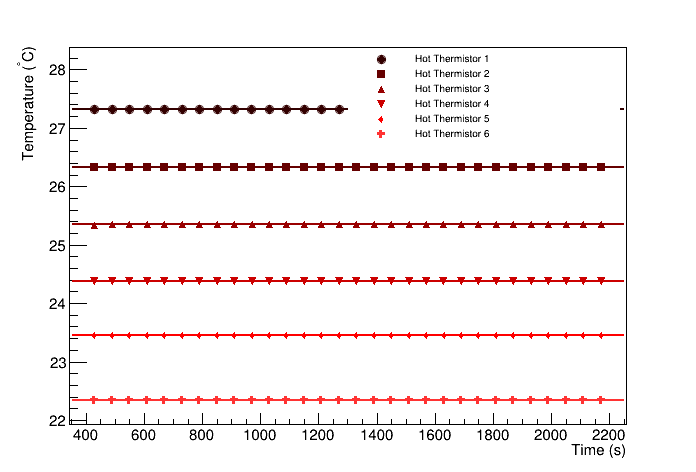

Heater Thermistors

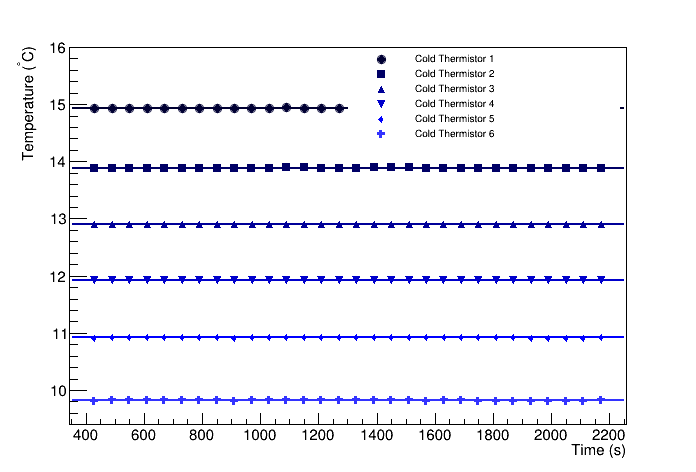

Cooler Thermistors

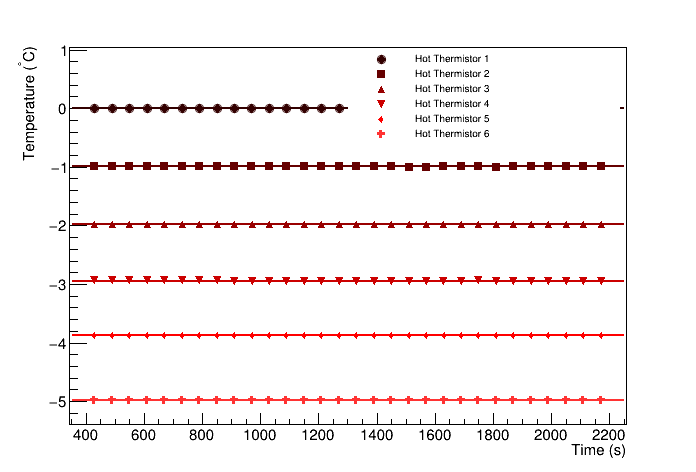

Heater Thermistors relative to hottest thermistor

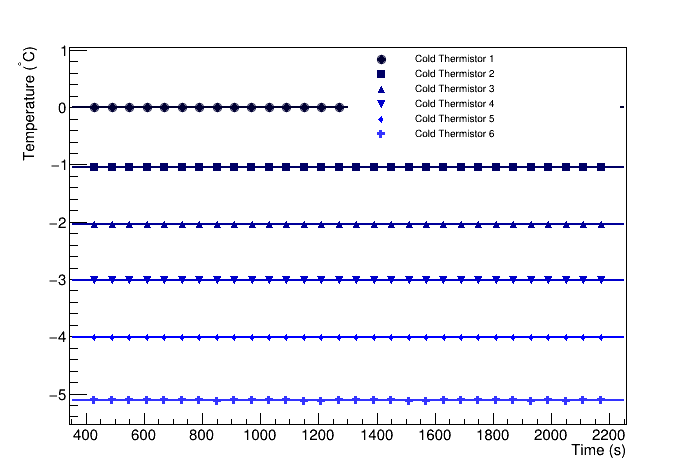

Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 8/29/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 43779.6 +/- 1661.93
Cold fluxmeter flux (W/m^2), 45001.4 +/- 1708.13
Heat flux through sample (W/m^2), 44390.5 +/- 1339.08
Heat flow through sample (W), 14.3421 +/- 0.432641
Temperature at hot end of sample (C), 21.4103 +/- 0.251652
Temperature at cold end of sample (C), 15.9469 +/- 0.122727
deltaT (C), 5.4634 +/- 0.279983
R (K/W), 0.380936, 0.0226529
RA (Km^2/W), 7.80918e-05, 4.74112e-06

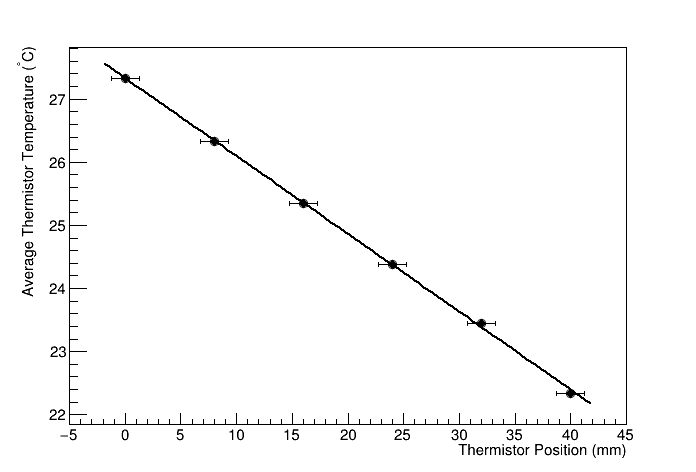

Hot flux meter fit

Cold flux meter fit

Hot flux meter difference fit

Cold flux meter difference fit
