Sample Results

In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/26/23
Apparatus, InPlane
Material, INPL24
Sample, 4
Length (mm), 19.67, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 16.19
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 28.8411, 27.9413, 27.1238, 26.258, 25.4223, 24.4514
Cold Fluxmeter Temperatures (C), 13.2147, 12.2958, 11.4301, 10.5824, 9.71595, 8.73356
Hot Fluxmeter Temperature Uncertainties (C), 0.00145056, 0.00148371, 0.00150512, 0.00139089, 0.00125883, 0.00135761
Cold Fluxmeter Temperature Uncertainties (C), 0.000846861, 0.000976439, 0.000888868, 0.00114931, 0.000877374, 0.000985325
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.899487, -1.71718, -2.58302, -3.41923, -4.3901
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.919486, -1.78508, -2.63274, -3.49881, -4.48204
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00238041, 0.00219483, 0.00203754, 0.00203886, 0.00181085
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.0016871, 0.000918623, 0.00167349, 0.001151, 0.00122171

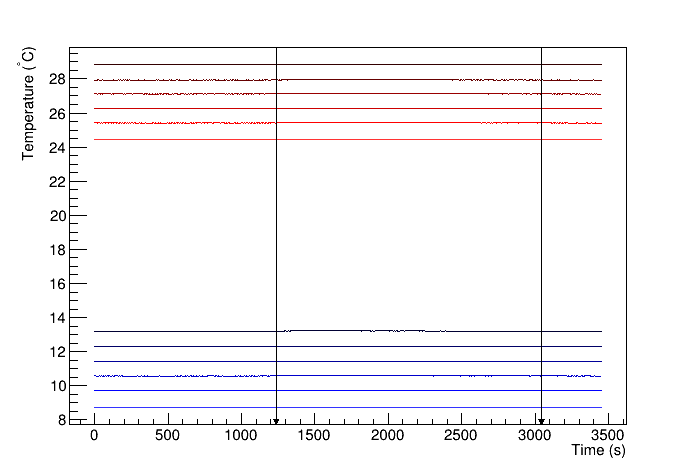

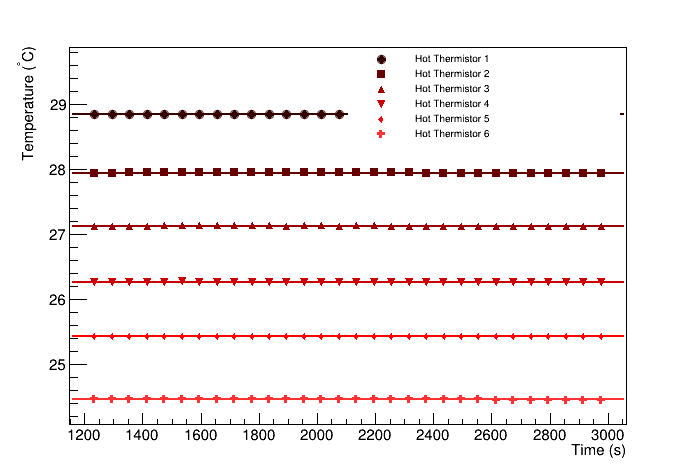

Heater Thermistors

Cooler Thermistors

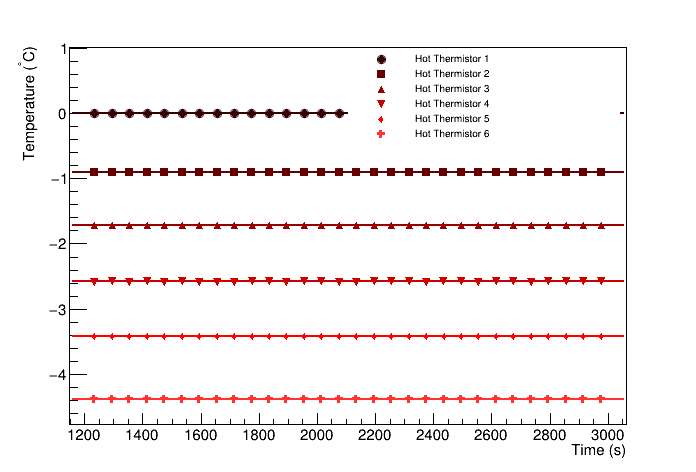

Heater Thermistors relative to hottest thermistor

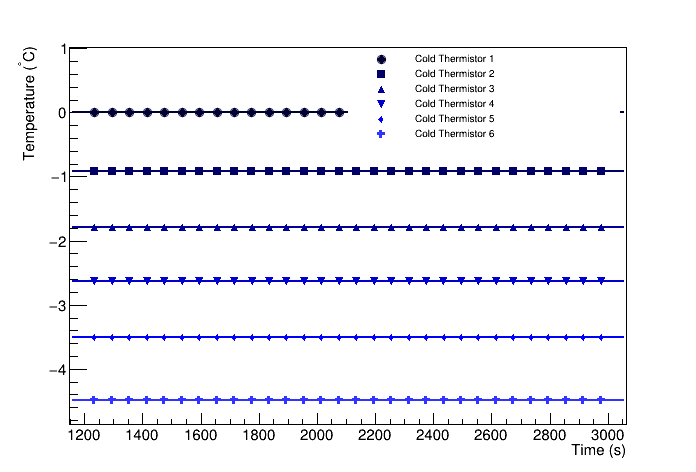

Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 9/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 38532.6 +/- 1462.81
Cold fluxmeter flux (W/m^2), 39317 +/- 1492.49
Heat flux through sample (W/m^2), 38924.8 +/- 1116.11
Heat flow through sample (W), 12.5761 +/- 0.3606
Temperature at hot end of sample (C), 23.6342 +/- 0.22147
Temperature at cold end of sample (C), 14.0962 +/- 0.107225
deltaT (C), 9.53805 +/- 0.246061
R (K/W), 0.758424, 0.0292529
RA (Km^2/W), 0.000155477, 6.29137e-06

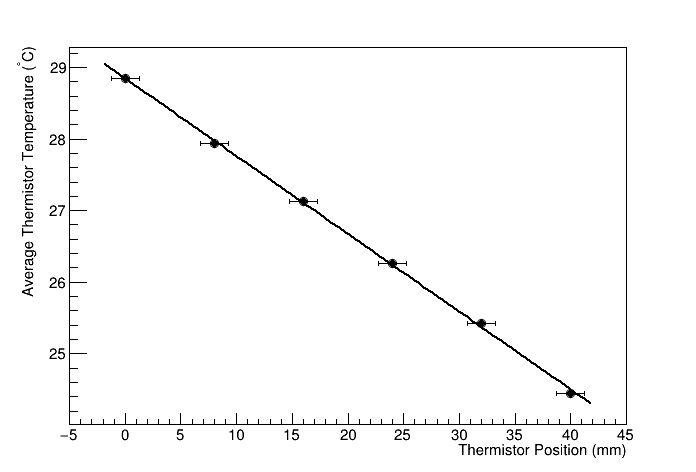

Hot flux meter fit

Cold flux meter fit

Hot flux meter difference fit

Cold flux meter difference fit
