In-plane thermal conductivity measurement

Output of InPlaneAnalysis_Metaslope. Souvik Das, 2023

Analyst: Souvik Das
Analysis date: 8/7/2023
Material: INPL16

Underlying sample results:

• INPL16_1, FEA Heat Loss uncertainty = 0.00071
• INPL16_2, FEA Heat Loss uncertainty = 0.00157
• INPL16_3, FEA Heat Loss uncertainty = 0.00433
• INPL16_4, FEA Heat Loss uncertainty = 0.00842
• INPL16_5, FEA Heat Loss uncertainty = 0.01382

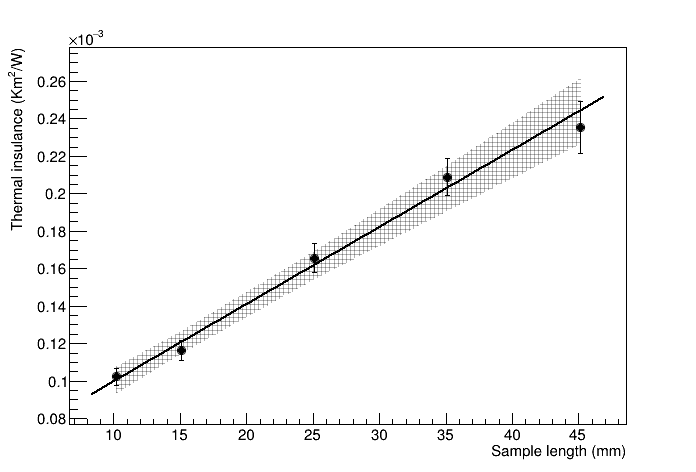

Iterative fit with no correlations between data points. k = 243.171 +/- 17.8539 W/mK

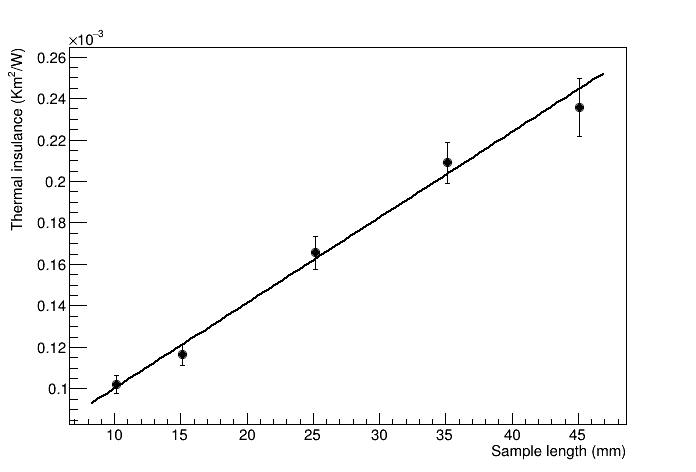

Analytical fit with 0.5 correlation between data point uncertainties. k = 242.861 +/- 29.4025 W/mK

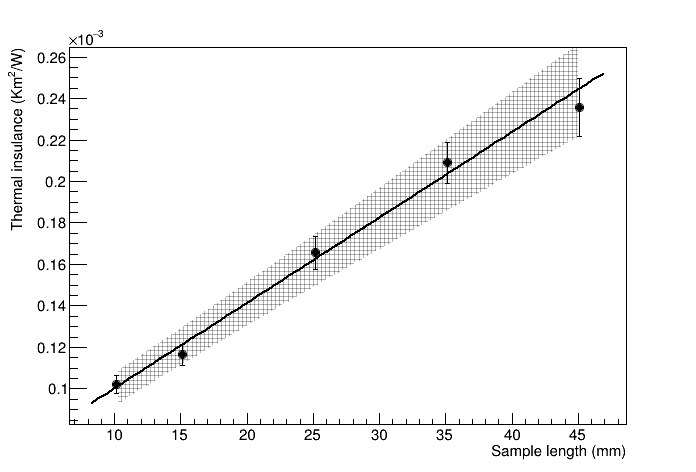

Iterative Minuit fit with 0.5 correlation between data point uncertainties. k = 242.861 +/- 16.3634 W/mK
