Sample Results

In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 11/03/2021
Apparatus, InPlane
Material, INPL16
Sample, 1
Length (mm), 10.16, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 2.38, 0.05
Heater Voltage, 9.20
Cooler Voltage, 0.0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 26.5855, 26.261, 25.9737, 25.6335, 25.3075, 24.9841
Cold Fluxmeter Temperatures (C), 20.4541, 20.1071, 19.8008, 19.5146, 19.1756, 18.8656
Hot Fluxmeter Temperature Uncertainties (C), 0.00234375, 0.00220084, 0.00237403, 0.00211835, 0.00210831, 0.0023804
Cold Fluxmeter Temperature Uncertainties (C), 0.00237324, 0.00232118, 0.00221742, 0.00226811, 0.0021085, 0.00210912
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.328723, -0.614465, -0.953507, -1.27911, -1.60232
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.347378, -0.654151, -0.939092, -1.27834, -1.59008
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00365144, 0.00299135, 0.00302888, 0.00319222, 0.00257748
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00443939, 0.00197678, 0.00359391, 0.00351591, 0.00188881

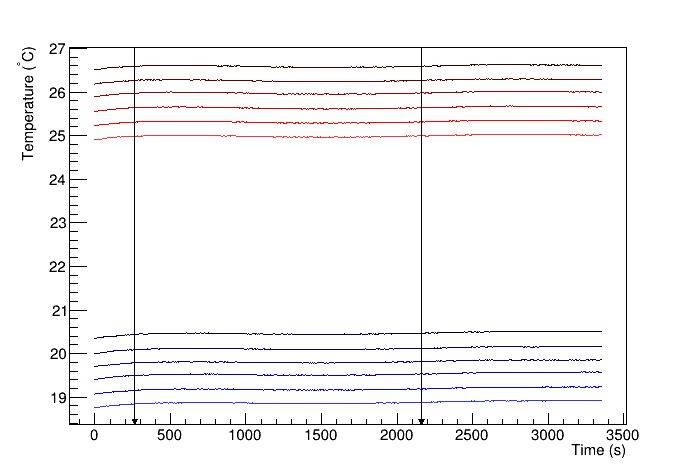

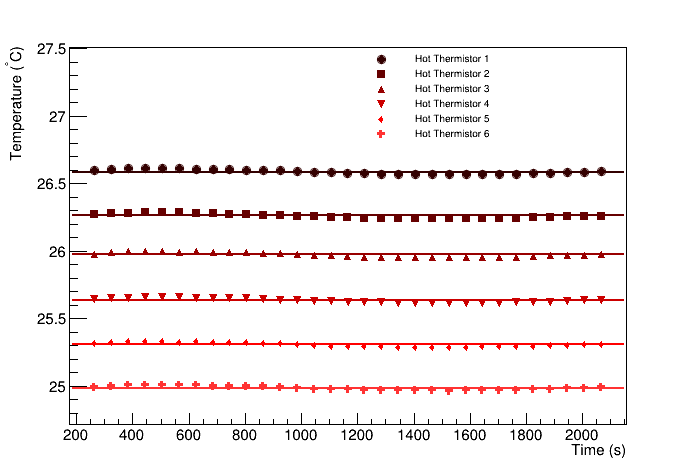

Heater Thermistors

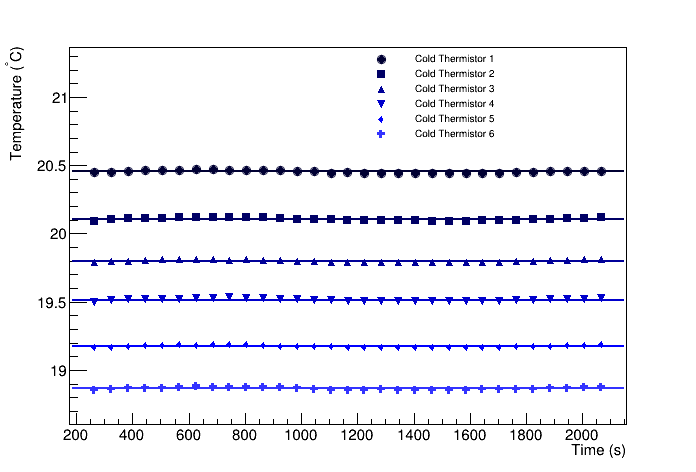

Cooler Thermistors

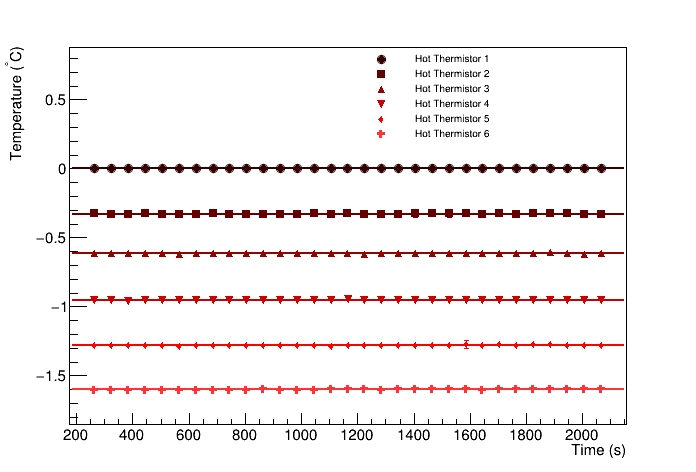

Heater Thermistors relative to hottest thermistor

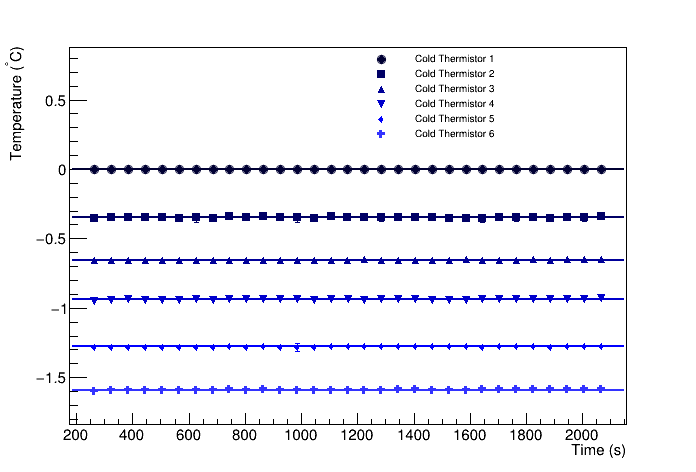

Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 14207.8 +/- 539.896
Cold fluxmeter flux (W/m^2), 13991.5 +/- 531.722
Heat flux through sample (W/m^2), 14099.7 +/- 394.02
Heat flow through sample (W), 4.55544 +/- 0.127303
Temperature at hot end of sample (C), 24.6697 +/- 0.0817844
Temperature at cold end of sample (C), 20.7559 +/- 0.0381818
deltaT (C), 3.91374 +/- 0.0902582
R (K/W), 0.859137, 0.0311286
RA (Km^2/W), 0.000102237, 4.28317e-06

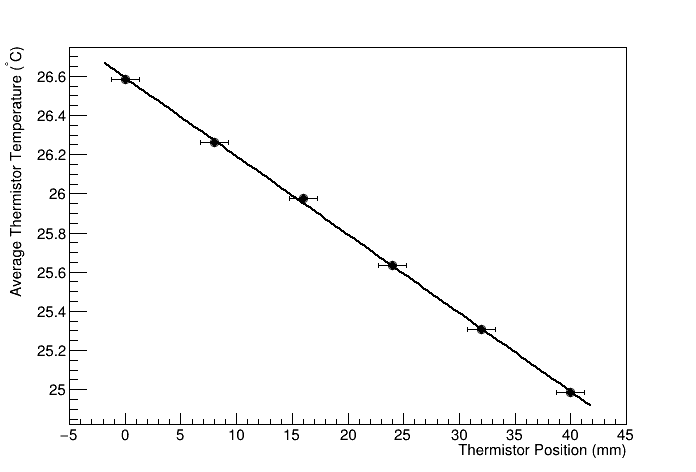

Hot flux meter fit

Cold flux meter fit

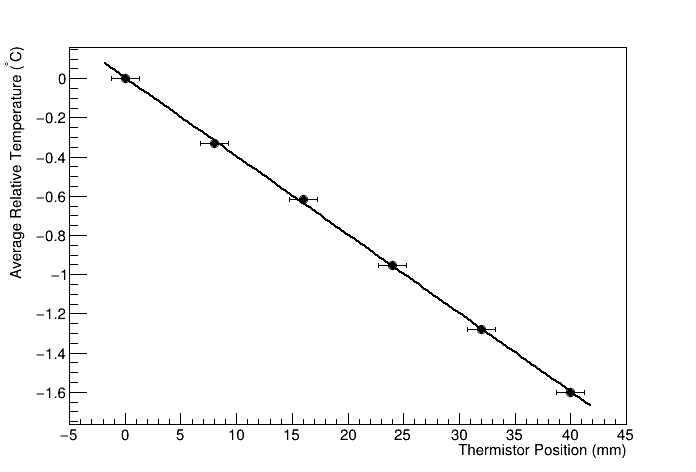

Hot flux meter difference fit

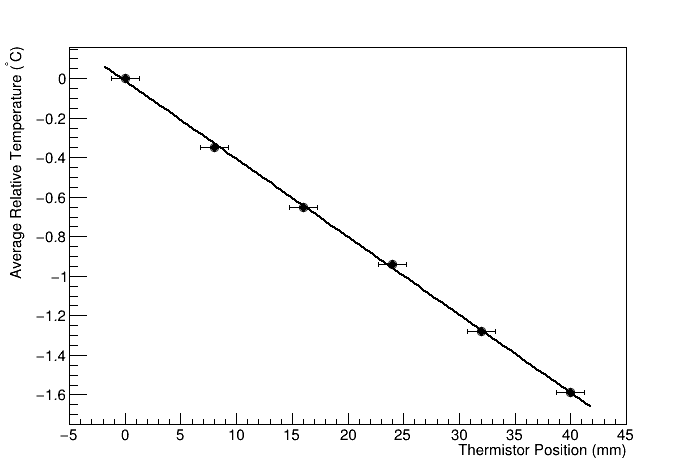

Cold flux meter difference fit
