Sample Results

In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 11/04/2021
Apparatus, InPlane
Material, INPL16
Sample, 4
Length (mm), 35.11, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 2.38, 0.05
Heater Voltage, 7.60
Cooler Voltage, 0.0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 24.7227, 24.4697, 24.2829, 24.0241, 23.7777, 23.5727
Cold Fluxmeter Temperatures (C), 17.3768, 17.1159, 16.8901, 16.702, 16.4603, 16.2362
Hot Fluxmeter Temperature Uncertainties (C), 0.00232082, 0.0023516, 0.00248111, 0.00242653, 0.0022535, 0.00240921
Cold Fluxmeter Temperature Uncertainties (C), 0.00207093, 0.00224247, 0.00166354, 0.00248914, 0.00221404, 0.00240118
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.248322, -0.440191, -0.696092, -0.943891, -1.15291
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.258879, -0.472788, -0.675983, -0.916229, -1.13687
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.0039626, 0.00287623, 0.00316596, 0.00311593, 0.00268978
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00378175, 0.00192353, 0.00299352, 0.00351909, 0.00196211

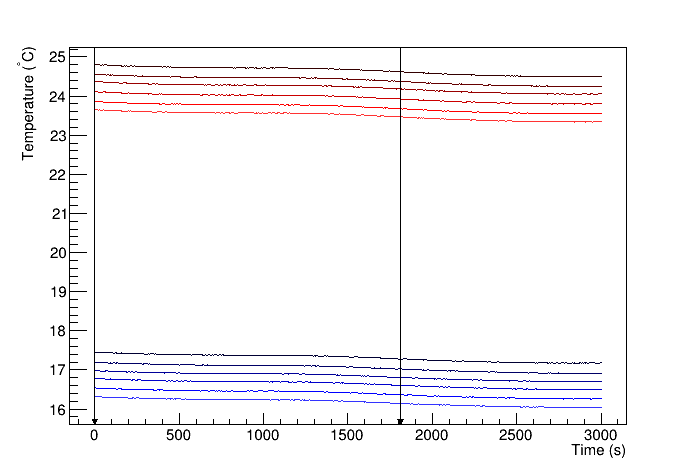

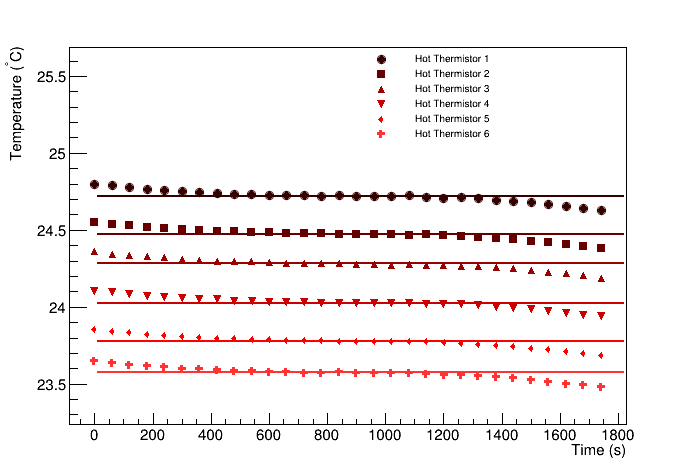

Heater Thermistors

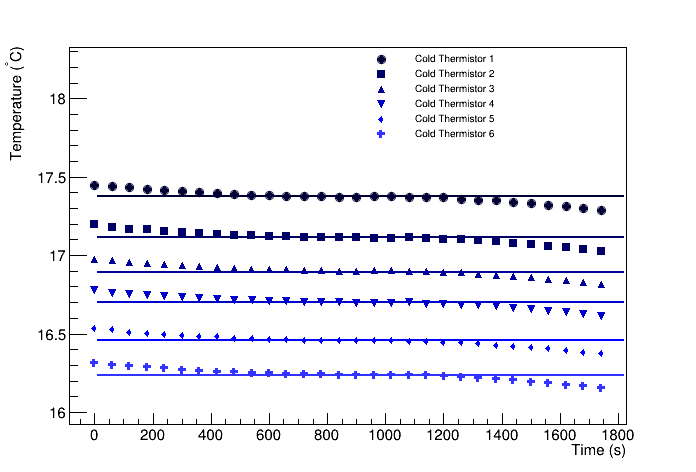

Cooler Thermistors

Heater Thermistors relative to hottest thermistor

Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 10291.3 +/- 391.664
Cold fluxmeter flux (W/m^2), 9975.16 +/- 379.425
Heat flux through sample (W/m^2), 10133.2 +/- 315.155
Heat flow through sample (W), 3.27392 +/- 0.101823
Temperature at hot end of sample (C), 23.3319 +/- 0.059157
Temperature at cold end of sample (C), 17.5839 +/- 0.0272723
deltaT (C), 5.74809 +/- 0.0651408
R (K/W), 1.75572, 0.058117
RA (Km^2/W), 0.000208931, 8.19388e-06

Hot flux meter fit

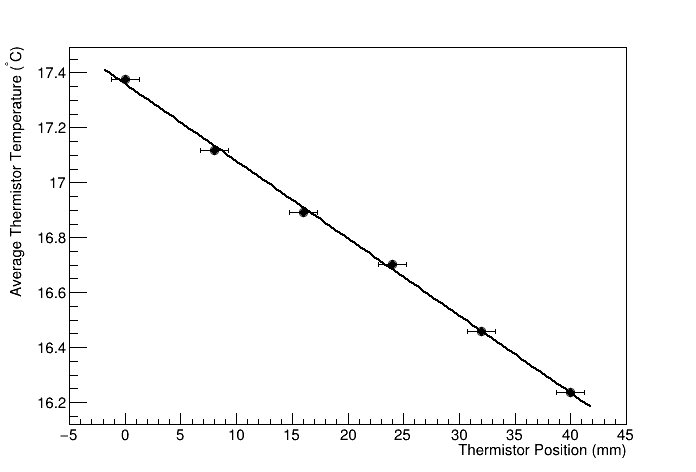

Cold flux meter fit

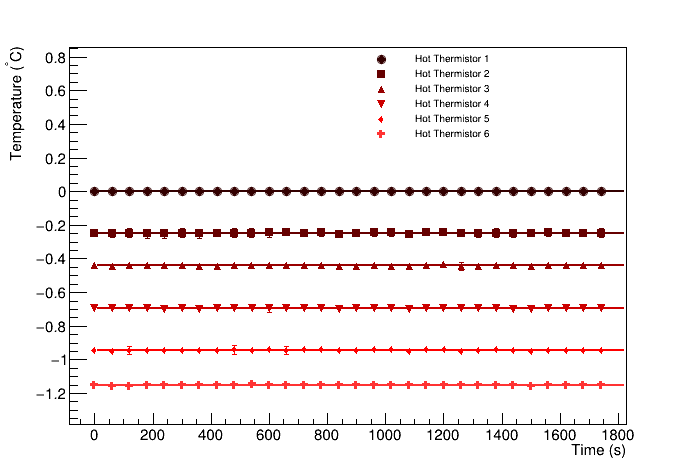

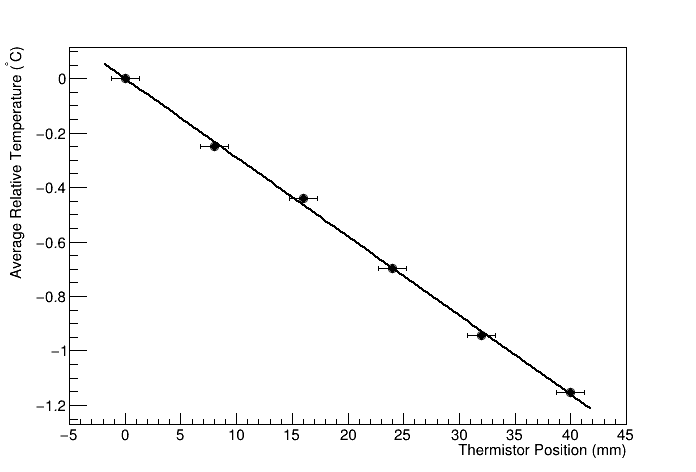

Hot flux meter difference fit

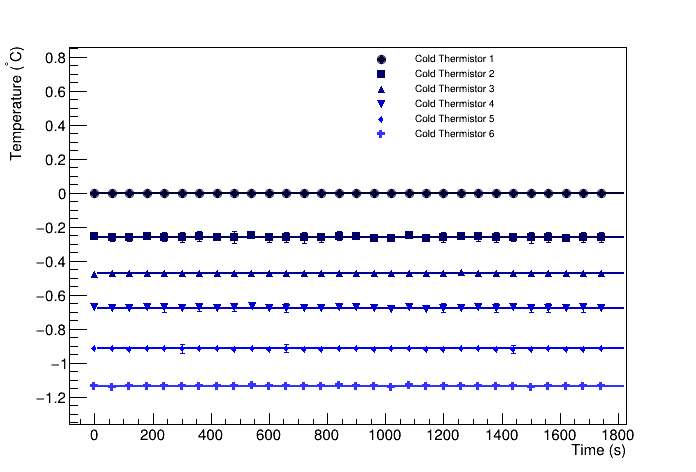

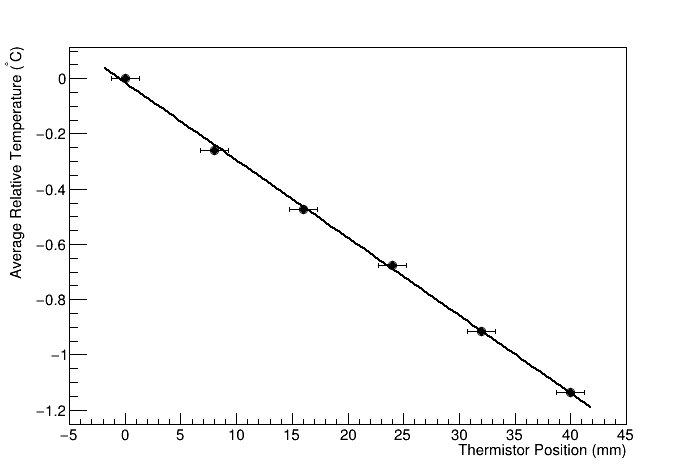

Cold flux meter difference fit
