Sample Results

In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 11/03/2021
Apparatus, InPlane
Material, INPL16
Sample, 2
Length (mm), 15.11, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 2.38, 0.05
Heater Voltage, 9.20
Cooler Voltage, 0.0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 27.4853, 27.1676, 26.8669, 26.5234, 26.1945, 25.8685
Cold Fluxmeter Temperatures (C), 20.7716, 20.4232, 20.1089, 19.8311, 19.4917, 19.1847
Hot Fluxmeter Temperature Uncertainties (C), 0.00220987, 0.00238647, 0.00260429, 0.00242454, 0.00221775, 0.00224467
Cold Fluxmeter Temperature Uncertainties (C), 0.00222469, 0.00223706, 0.00221976, 0.00253618, 0.00220453, 0.00245665
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.318957, -0.619879, -0.963577, -1.29315, -1.61851
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.348155, -0.660437, -0.937184, -1.27718, -1.58412
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00384899, 0.00303839, 0.00317928, 0.003105, 0.00264622
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00411915, 0.00213051, 0.00344471, 0.00356976, 0.00184898

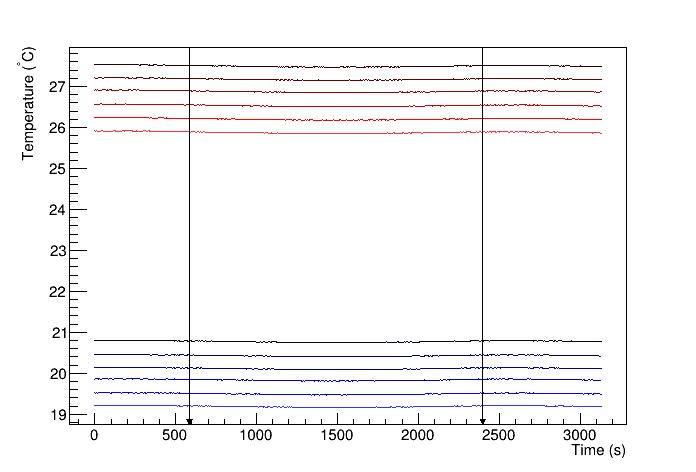

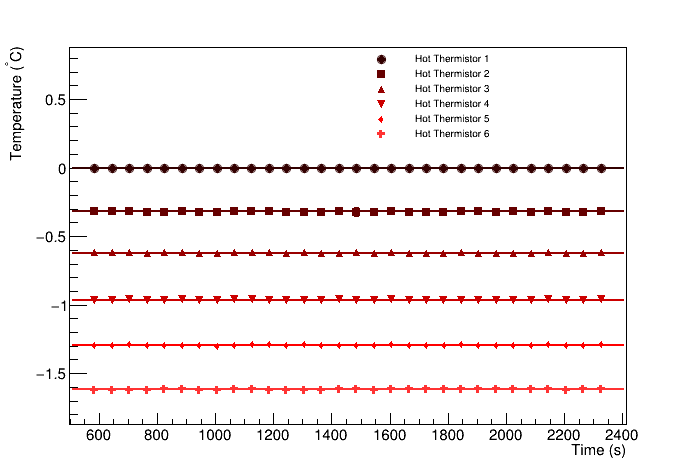

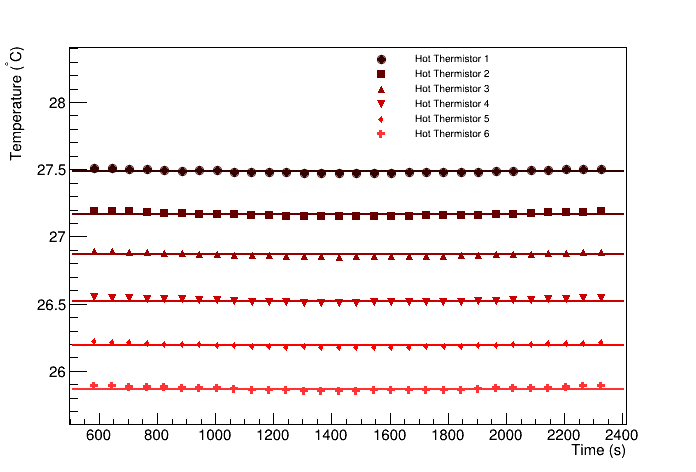

Heater Thermistors

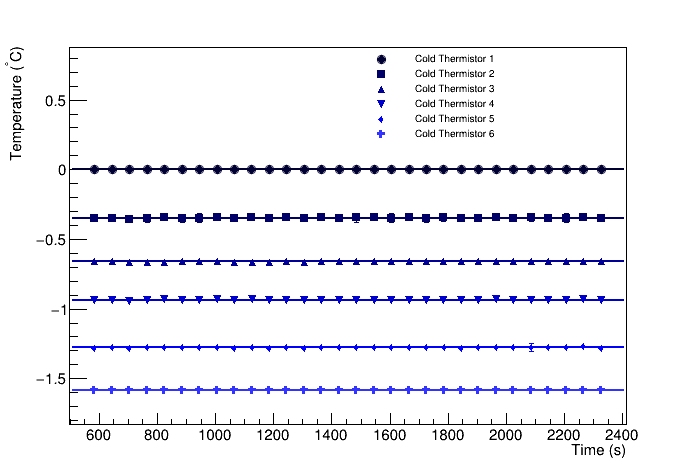

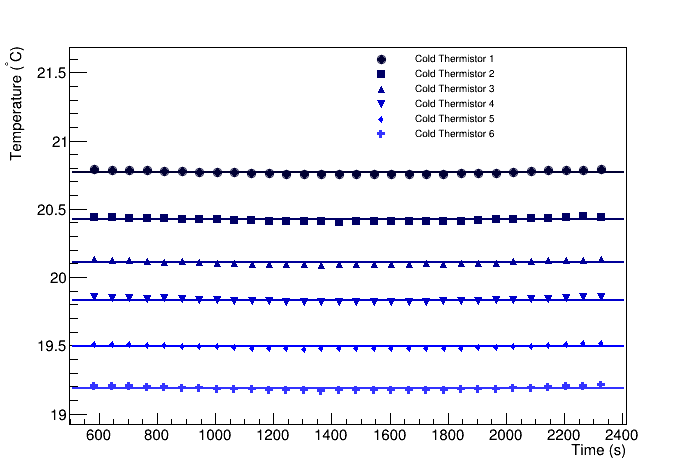

Cooler Thermistors

Heater Thermistors relative to hottest thermistor

Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 14405.4 +/- 547.398
Cold fluxmeter flux (W/m^2), 13938.1 +/- 529.712
Heat flux through sample (W/m^2), 14171.8 +/- 446.825
Heat flow through sample (W), 4.57873 +/- 0.144364
Temperature at hot end of sample (C), 25.5494 +/- 0.0827822
Temperature at cold end of sample (C), 21.07 +/- 0.0381332
deltaT (C), 4.47933 +/- 0.091143
R (K/W), 0.97829, 0.0367101
RA (Km^2/W), 0.000116417, 5.00789e-06

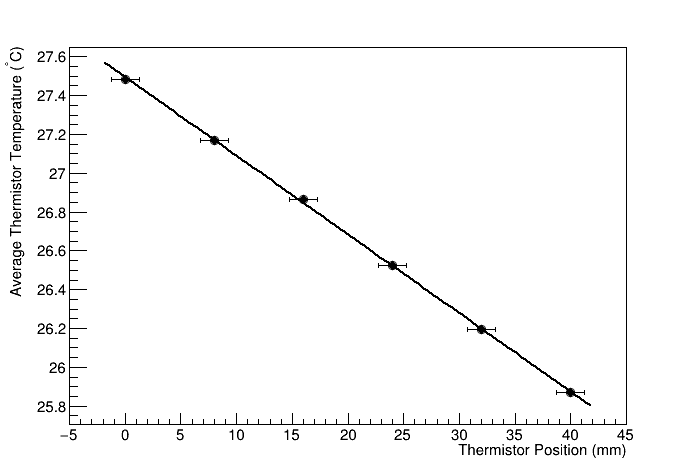

Hot flux meter fit

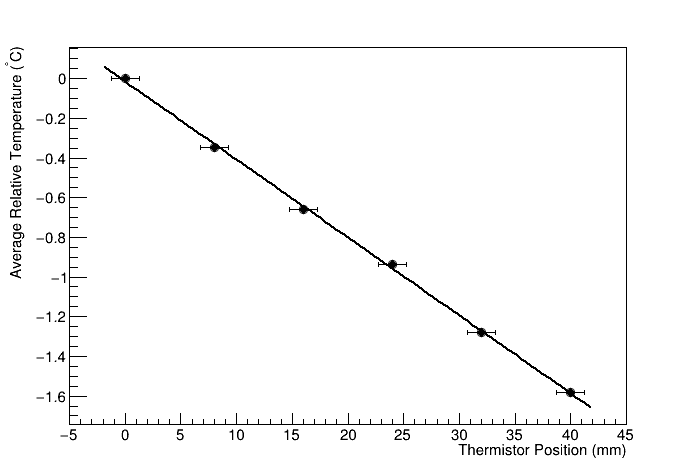

Cold flux meter fit

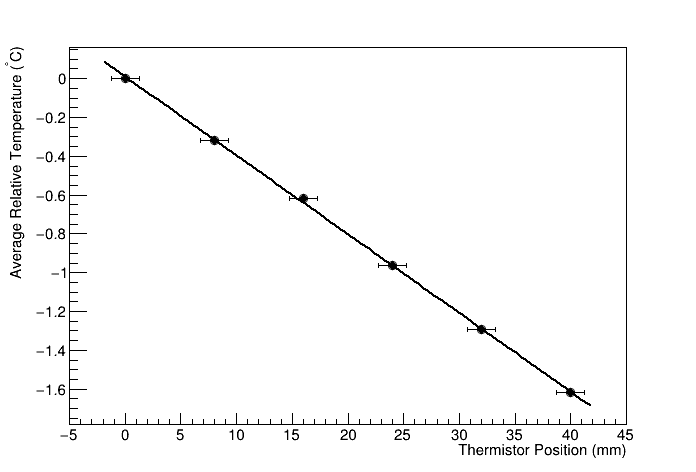

Hot flux meter difference fit

Cold flux meter difference fit
