Sample Results

In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 11/03/2021
Apparatus, InPlane
Material, INPL16
Sample, 3
Length (mm), 25.13, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 2.38, 0.05
Heater Voltage, 9.20
Cooler Voltage, 0.0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 28.9362, 28.6023, 28.3261, 27.9827, 27.6566, 27.3294
Cold Fluxmeter Temperatures (C), 20.4801, 20.1342, 19.8311, 19.5614, 19.2317, 18.9363
Hot Fluxmeter Temperature Uncertainties (C), 0.00197879, 0.00242426, 0.00252046, 0.0023075, 0.00187472, 0.00205075
Cold Fluxmeter Temperature Uncertainties (C), 0.00203272, 0.00186313, 0.00212599, 0.00221789, 0.00210085, 0.00196522
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.334125, -0.609677, -0.953221, -1.27908, -1.60462
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.345139, -0.6495, -0.918716, -1.2489, -1.54351
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.0038083, 0.00333601, 0.00310454, 0.00310449, 0.0026394
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00382656, 0.0018166, 0.00320749, 0.00297401, 0.0019362

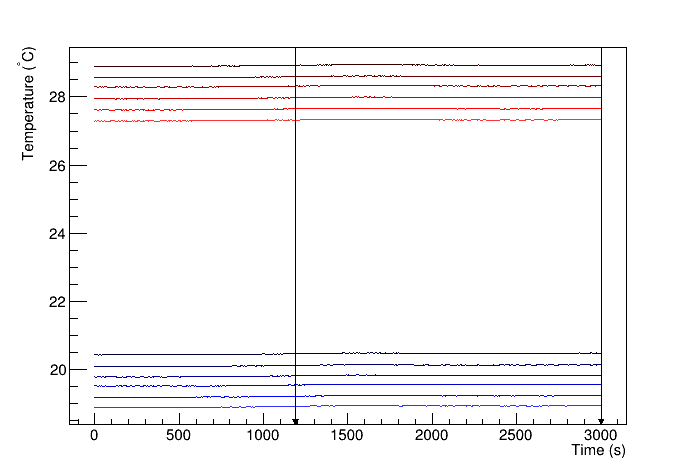

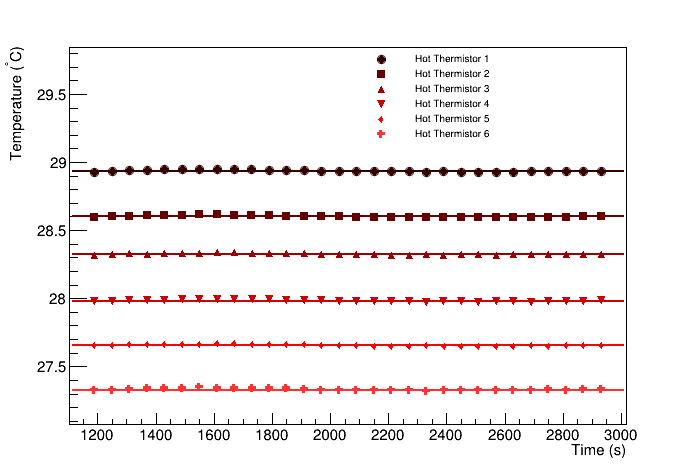

Heater Thermistors

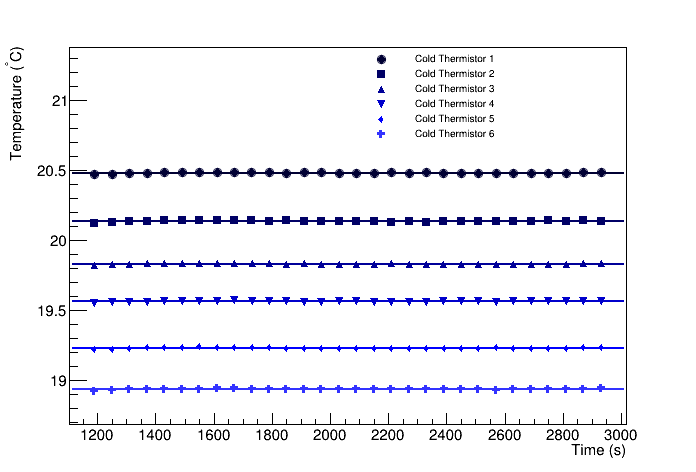

Cooler Thermistors

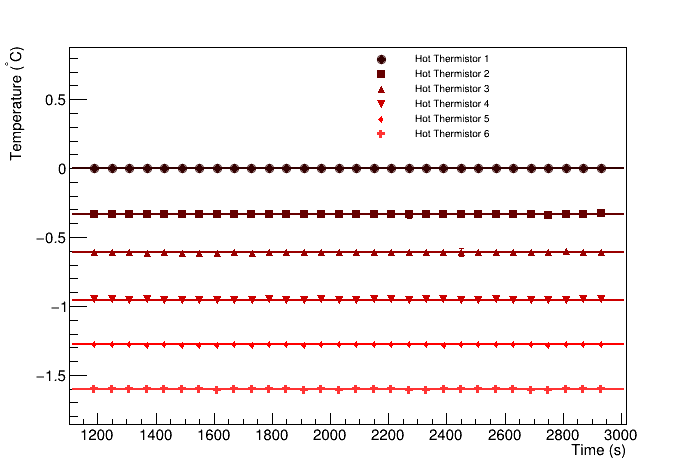

Heater Thermistors relative to hottest thermistor

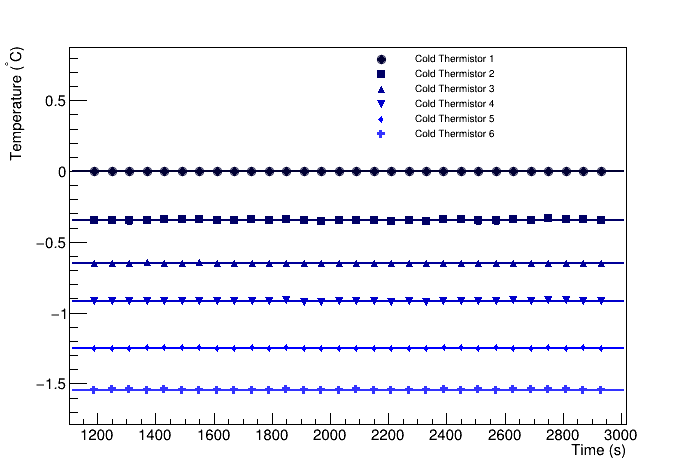

Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 14210.8 +/- 540.095
Cold fluxmeter flux (W/m^2), 13577 +/- 515.982
Heat flux through sample (W/m^2), 13893.9 +/- 489.831
Heat flow through sample (W), 4.48895 +/- 0.158258
Temperature at hot end of sample (C), 27.0167 +/- 0.0818544
Temperature at cold end of sample (C), 20.7664 +/- 0.0370589
deltaT (C), 6.25032 +/- 0.0898527
R (K/W), 1.39238, 0.0530125
RA (Km^2/W), 0.000165693, 7.20704e-06

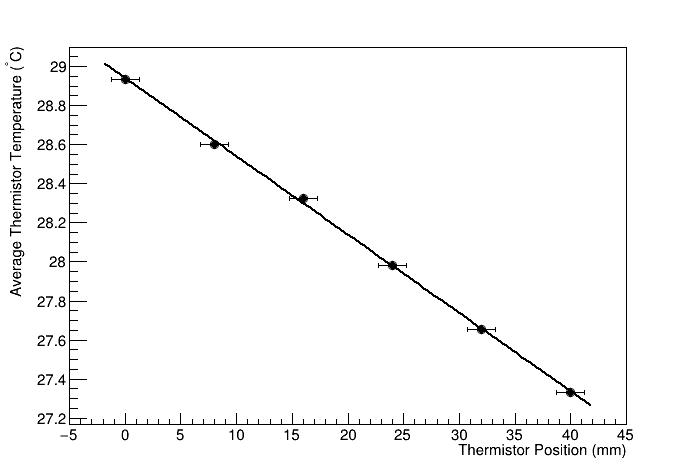

Hot flux meter fit

Cold flux meter fit

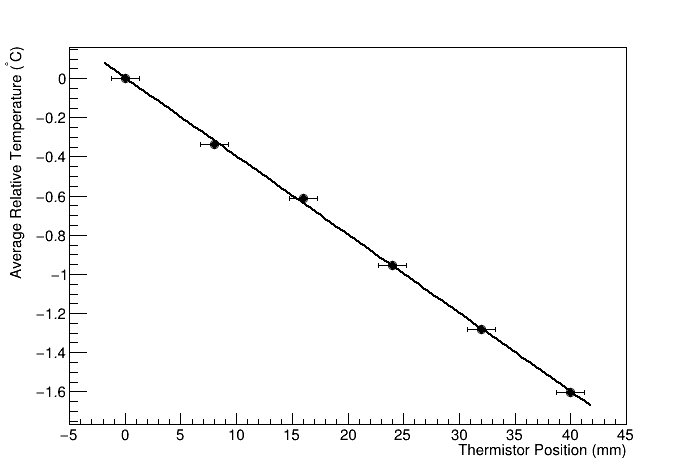

Hot flux meter difference fit

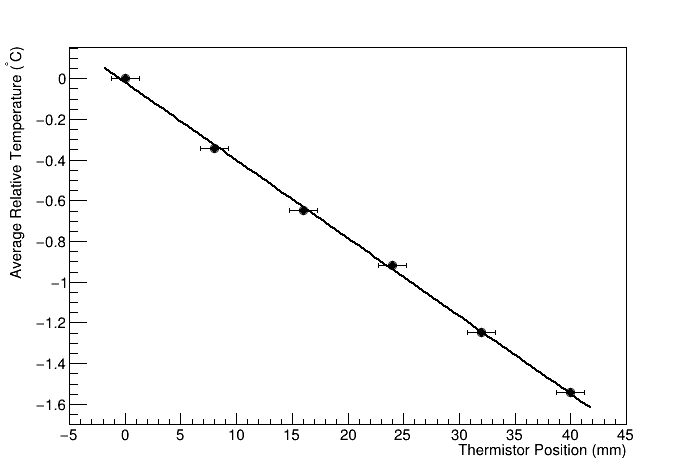

Cold flux meter difference fit
