In-plane thermal conductivity measurement

Output of InPlaneAnalysis_Metaslope. Souvik Das, 2023

Analyst: Souvik Das
Analysis date: 4/28/2023
Material: INPL21

Underlying sample results:

• INPL21_1, FEA Heat Loss uncertainty = 0.00014
• INPL21_2, FEA Heat Loss uncertainty = 0.00102
• INPL21_3, FEA Heat Loss uncertainty = 0.00342
• INPL21_4, FEA Heat Loss uncertainty = 0.00471

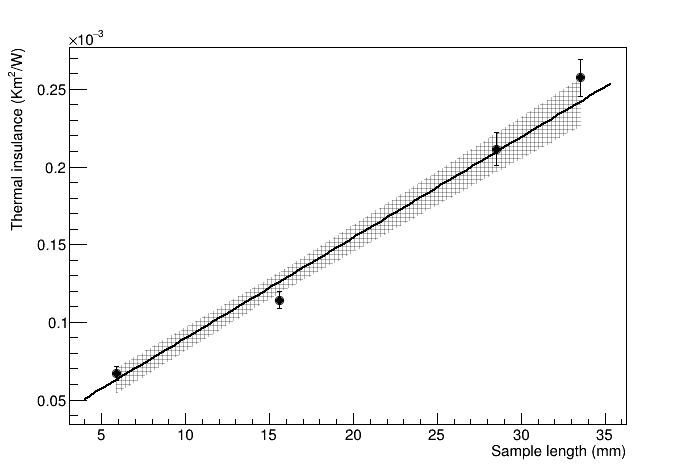

Iterative fit with no correlations between data points. k = 154.439 +/- 8.48752 W/mK

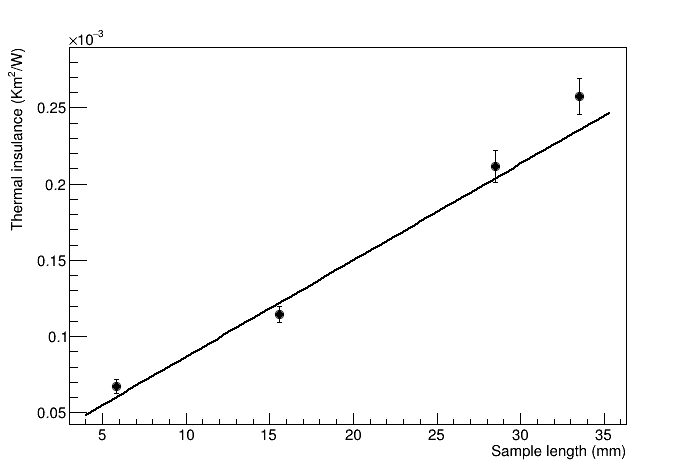

Analytical fit with 0.5 correlation between data point uncertainties. k = 158.041 +/- 11.6645 W/mK

Iterative Minuit fit with 0.5 correlation between data point uncertainties. k = 158.041 +/- 7.57677 W/mK
