Sample Results

In-plane thermal conductivity measurement
Experimentalist, Near Han
Date of measurement, 10/27/2022
Apparatus, InPlane
Material, INPL21
Sample, 4
Length (mm), 33.50, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 4.03, 0.05
Heater Voltage, 8.6
Cooler Voltage, 0.67
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 22.8841, 22.5969, 22.3592, 22.0297, 21.755, 21.4645
Cold Fluxmeter Temperatures (C), 15.8212, 15.5124, 15.228, 14.9833, 14.7858, 14.4129
Hot Fluxmeter Temperature Uncertainties (C), 0.00163727, 0.00156225, 0.00162515, 0.00143713, 0.0013693, 0.00140416
Cold Fluxmeter Temperature Uncertainties (C), 0.000858588, 0.000906947, 0.000813822, 0.000902786, 0.000845857, 0.000902698
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.277336, -0.528514, -0.853371, -1.13812, -1.41494
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.313216, -0.603485, -0.844545, -1.03914, -1.41088
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.000847905, 0.00115354, 0.00117918, 0.0012261, 0.00131838
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00104275, 0.000935288, 0.00107891, 0.000917853, 0.000963182

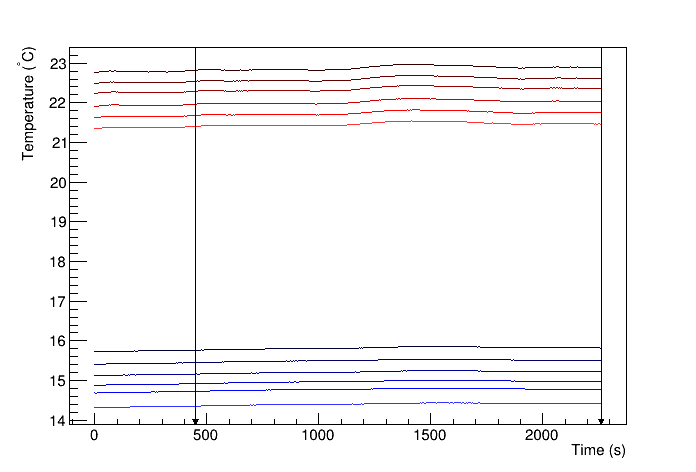

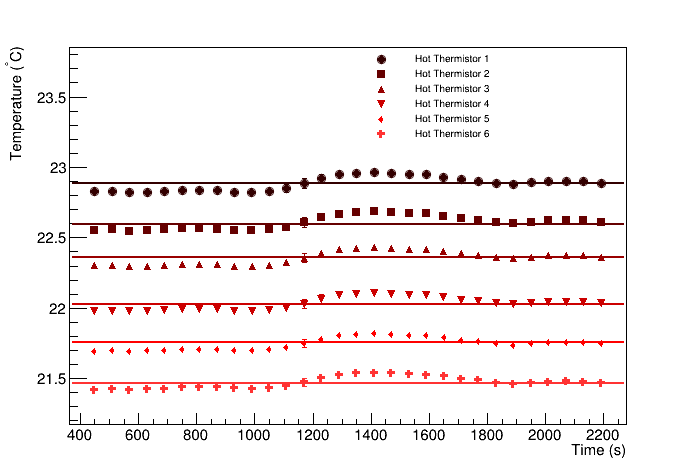

Heater Thermistors

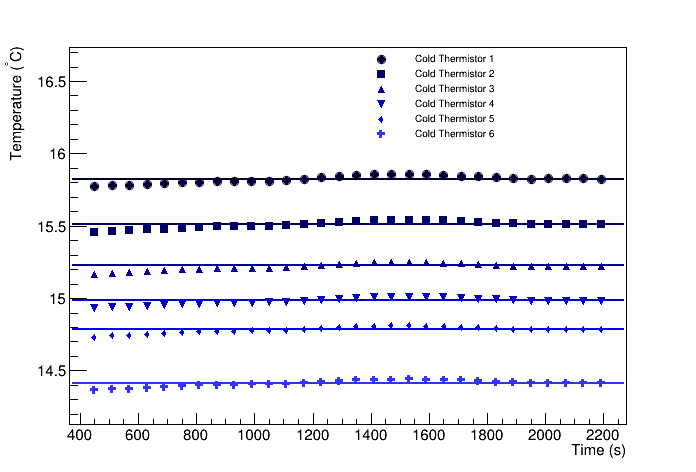

Cooler Thermistors

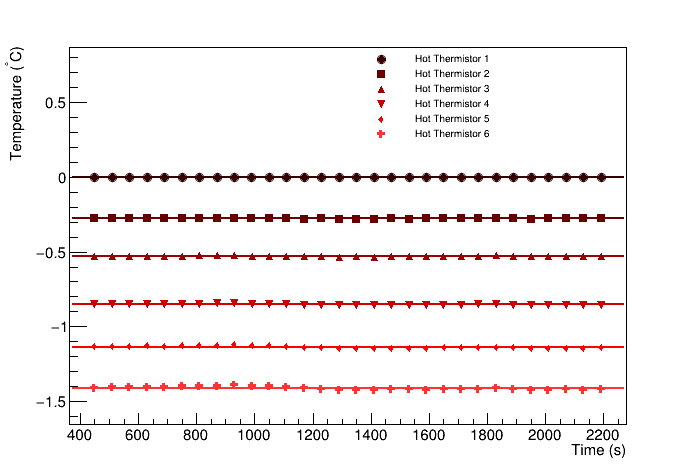

Heater Thermistors relative to hottest thermistor

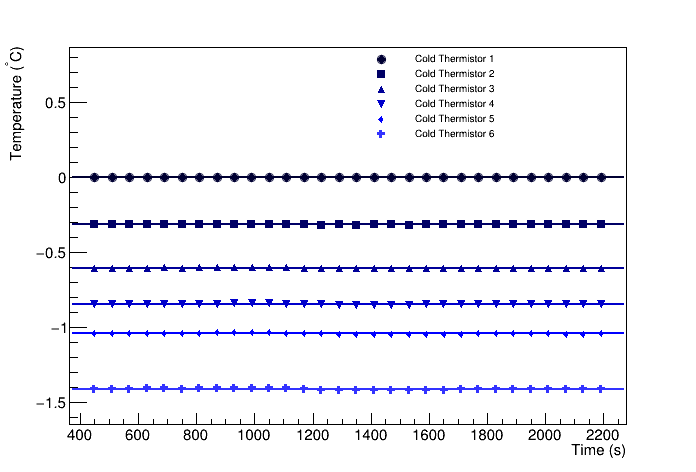

Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/28/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 12666.7 +/- 481.054
Cold fluxmeter flux (W/m^2), 12086.8 +/- 460.264
Heat flux through sample (W/m^2), 12376.8 +/- 441.452
Heat flow through sample (W), 3.99879 +/- 0.142628
Temperature at hot end of sample (C), 21.1851 +/- 0.0726786
Temperature at cold end of sample (C), 16.0761 +/- 0.0330014
deltaT (C), 5.10904 +/- 0.0798202
R (K/W), 1.27765, 0.0497509
RA (Km^2/W), 0.000257446, 1.05245e-05

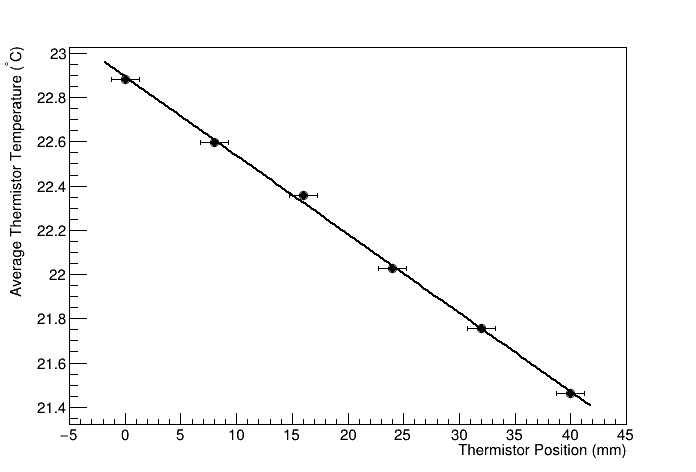

Hot flux meter fit

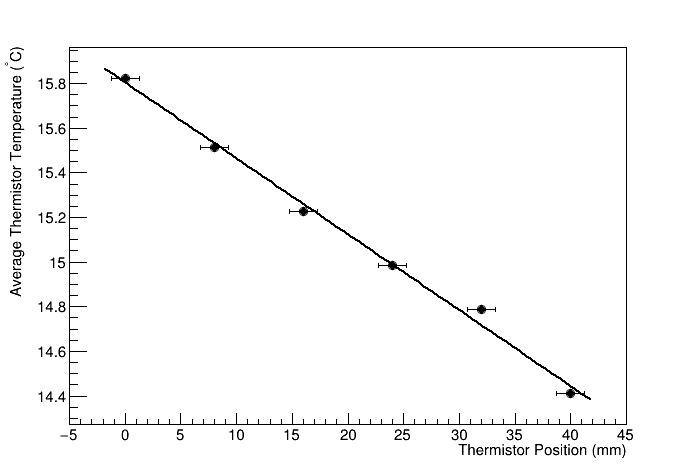

Cold flux meter fit

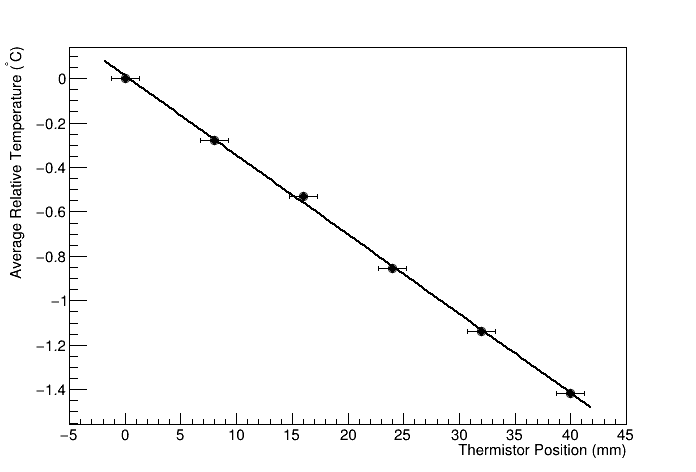

Hot flux meter difference fit

Cold flux meter difference fit
