Sample Results

In-plane thermal conductivity measurement
Experimentalist, Near Han
Date of measurement, 10/29/2022
Apparatus, InPlane
Material, INPL21
Sample, 1
Length (mm), 5.85, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 4.03, 0.05
Heater Voltage, 10.2
Cooler Voltage, 0.82
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 25.1069, 24.7269, 24.3921, 23.9704, 23.5763, 23.2314
Cold Fluxmeter Temperatures (C), 20.6896, 20.2847, 19.8927, 19.5613, 19.2392, 18.7874
Hot Fluxmeter Temperature Uncertainties (C), 0.000980282, 0.000764212, 0.000931988, 0.000831767, 0.000822848, 0.000961431
Cold Fluxmeter Temperature Uncertainties (C), 0.000821933, 0.000845066, 0.000824919, 0.000855301, 0.000747943, 0.000928726
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.380889, -0.713757, -1.13618, -1.5296, -1.87334
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.405549, -0.796691, -1.12957, -1.45273, -1.90279
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00121272, 0.00128823, 0.00110137, 0.00117275, 0.00119328
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00123051, 0.00111792, 0.00115554, 0.00113292, 0.00109422

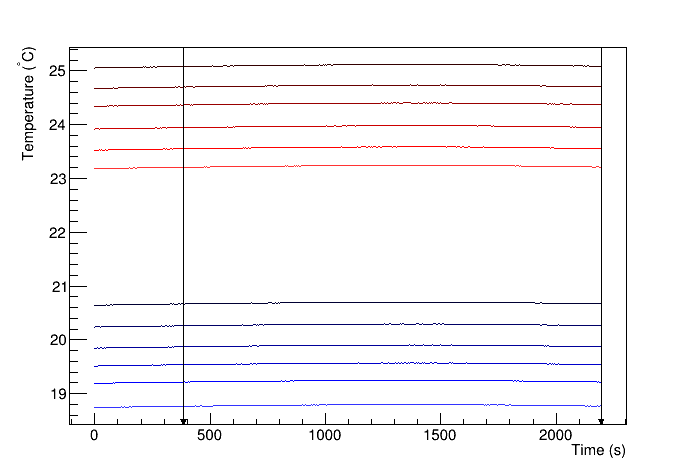

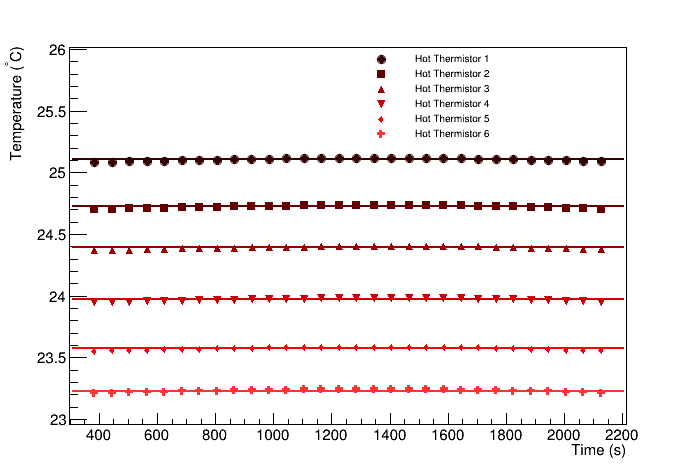

Heater Thermistors

Cooler Thermistors

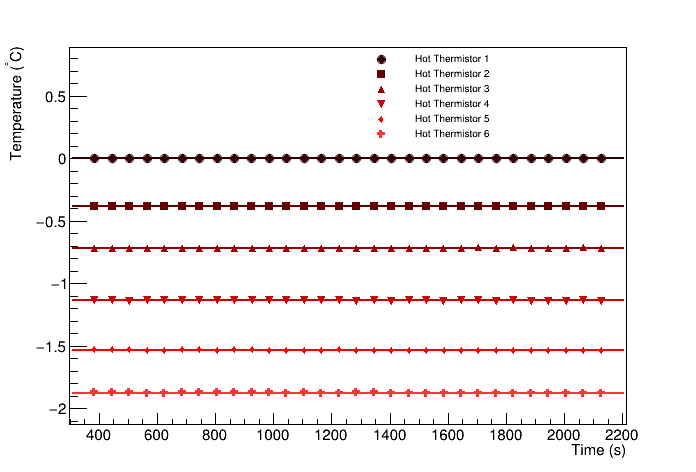

Heater Thermistors relative to hottest thermistor

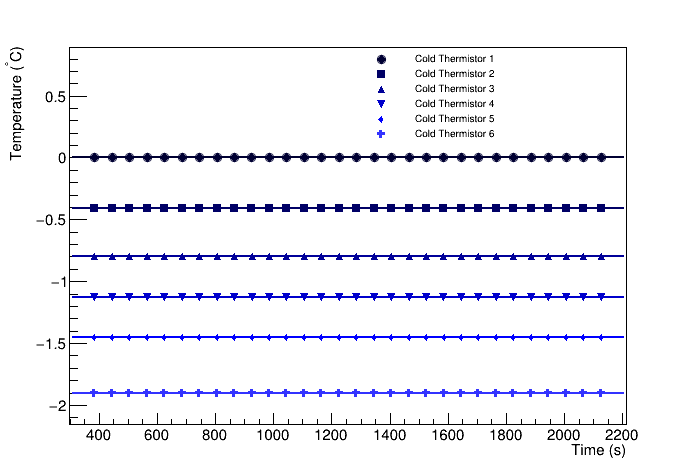

Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/27/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 16794.9 +/- 637.744
Cold fluxmeter flux (W/m^2), 16503.5 +/- 627.113
Heat flux through sample (W/m^2), 16649.2 +/- 470.353
Heat flow through sample (W), 5.37915 +/- 0.151965
Temperature at hot end of sample (C), 22.8411 +/- 0.0966742
Temperature at cold end of sample (C), 21.0433 +/- 0.0450185
deltaT (C), 1.79779 +/- 0.106642
R (K/W), 0.334214, 0.0219587
RA (Km^2/W), 6.73442e-05, 4.50337e-06

Hot flux meter fit

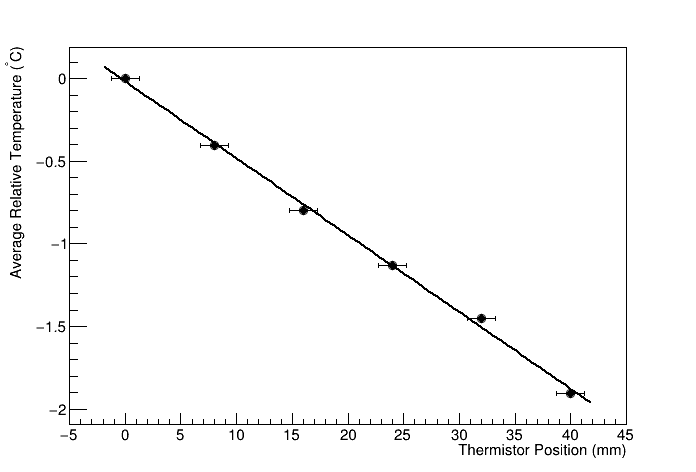

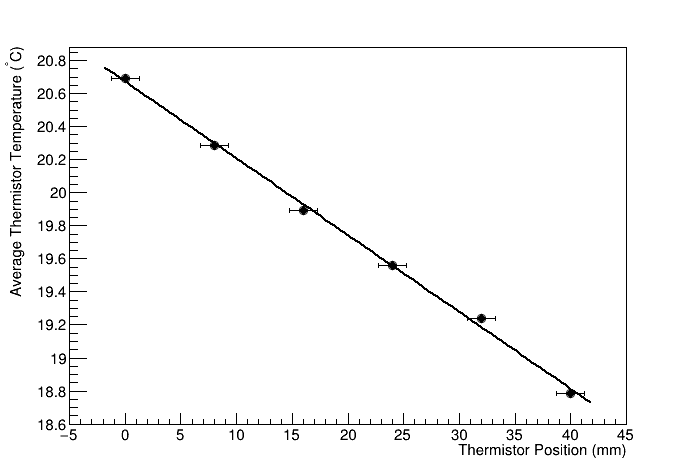

Cold flux meter fit

Hot flux meter difference fit

Cold flux meter difference fit
