Sample Results

In-plane thermal conductivity measurement
Experimentalist, Near Han
Date of measurement, 10/29/2022
Apparatus, InPlane
Material, INPL21
Sample, 2
Length (mm), 15.60, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 4.03, 0.05
Heater Voltage, 10.2
Cooler Voltage, 0.80
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 24.1948, 23.8797, 23.5807, 23.2175, 22.8766, 22.5847
Cold Fluxmeter Temperatures (C), 19.292, 18.9401, 18.6066, 18.3108, 18.0601, 17.6319
Hot Fluxmeter Temperature Uncertainties (C), 0.00178764, 0.00167114, 0.00168322, 0.00141189, 0.00128189, 0.00147059
Cold Fluxmeter Temperature Uncertainties (C), 0.000923735, 0.0009776, 0.000945773, 0.00101163, 0.000909356, 0.000947763
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.318795, -0.61551, -0.985994, -1.32396, -1.61232
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.353488, -0.693556, -0.980093, -1.2453, -1.65635
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00117027, 0.00129699, 0.00129362, 0.00142473, 0.00136879
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00117019, 0.00101114, 0.00115996, 0.00112519, 0.00102756

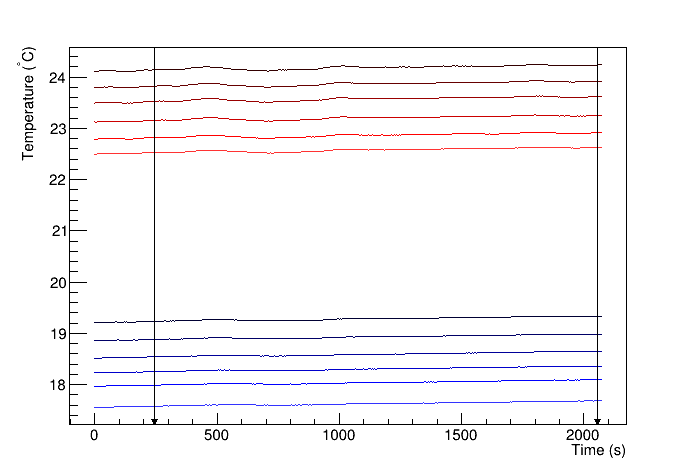

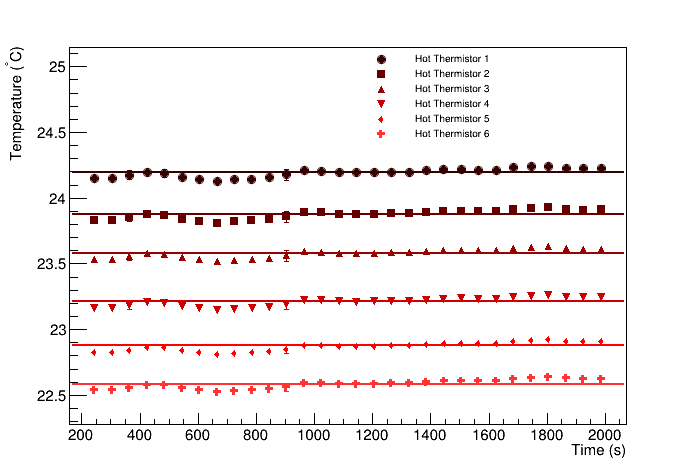

Heater Thermistors

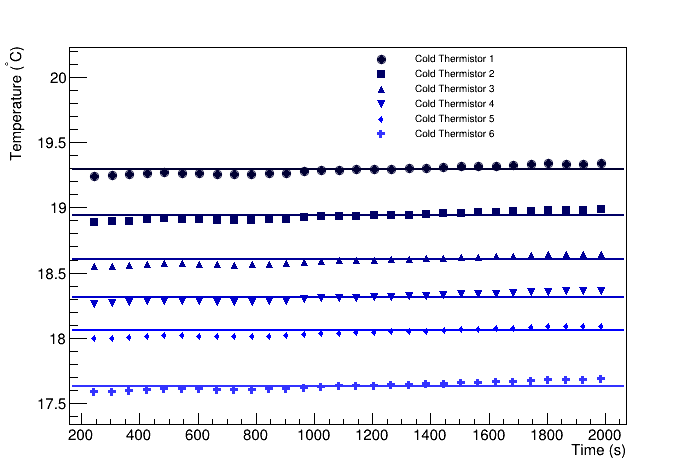

Cooler Thermistors

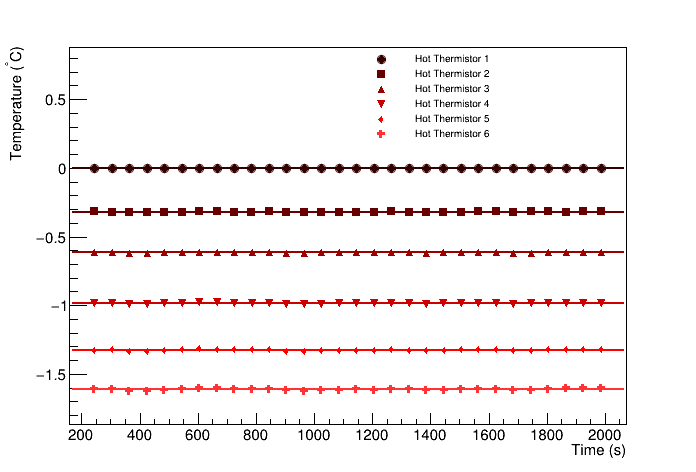

Heater Thermistors relative to hottest thermistor

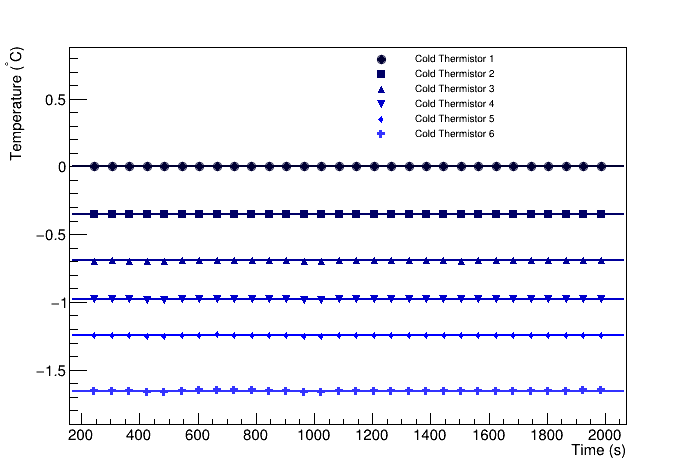

Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/27/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 14529 +/- 551.805
Cold fluxmeter flux (W/m^2), 14302.7 +/- 543.796
Heat flux through sample (W/m^2), 14415.8 +/- 403.55
Heat flow through sample (W), 4.65758 +/- 0.130382
Temperature at hot end of sample (C), 22.2457 +/- 0.083378
Temperature at cold end of sample (C), 19.6018 +/- 0.0390725
deltaT (C), 2.64386 +/- 0.092079
R (K/W), 0.567647, 0.0253643
RA (Km^2/W), 0.000114381, 5.3055e-06

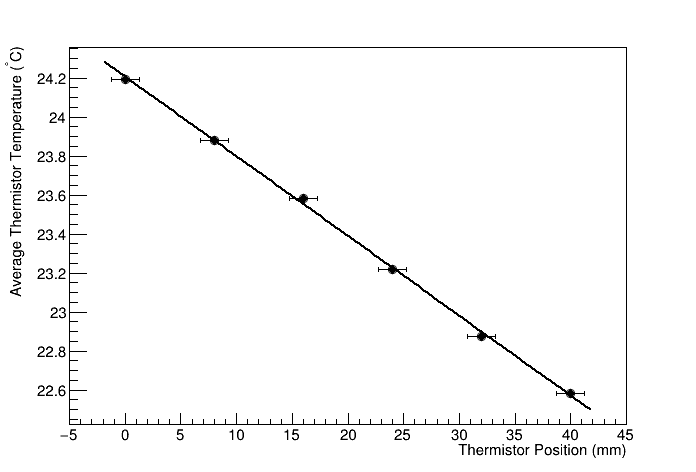

Hot flux meter fit

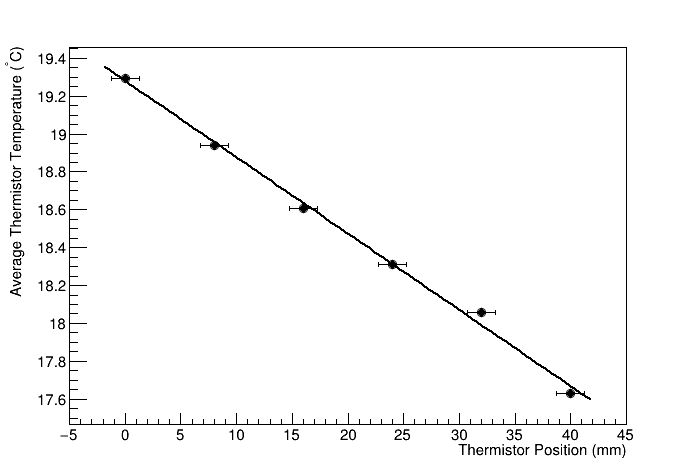

Cold flux meter fit

Hot flux meter difference fit

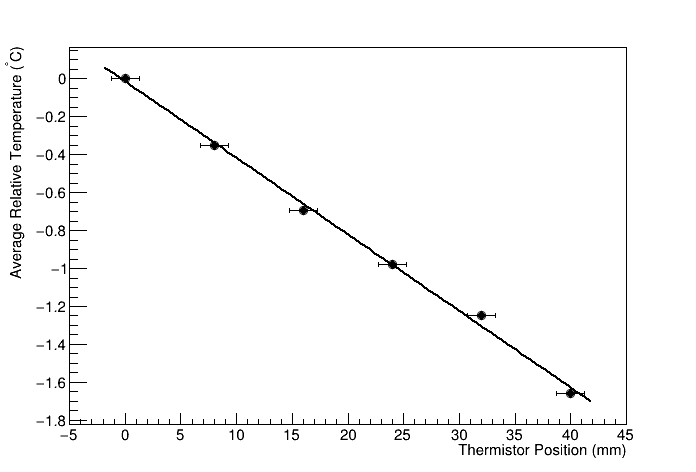

Cold flux meter difference fit
