In-plane thermal conductivity measurement

Output of InPlaneAnalysis_Metaslope. Souvik Das, 2023

Analyst: Michael Wasem
Analysis date: 10/10/2023
Material: INPL23

Underlying sample results:

• INPL23_1
• INPL23_2
• INPL23_3
• INPL23_4
• INPL23_5
• INPL23_6
• INPL23_7

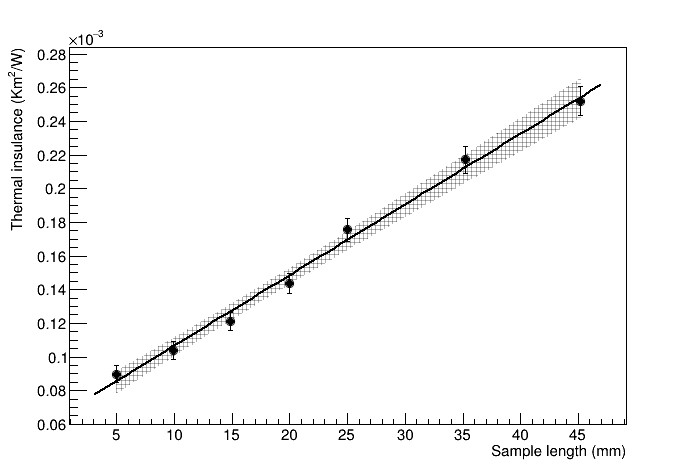

Iterative fit with no correlations between data points. k = 238.314 +/- 11.2085 W/mK

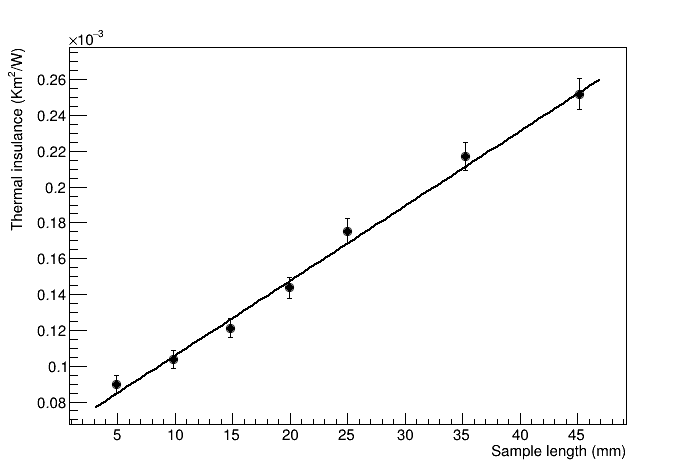

Analytical fit with 0.5 correlation between data point uncertainties. k = 239.278 +/- 11.1385 W/mK

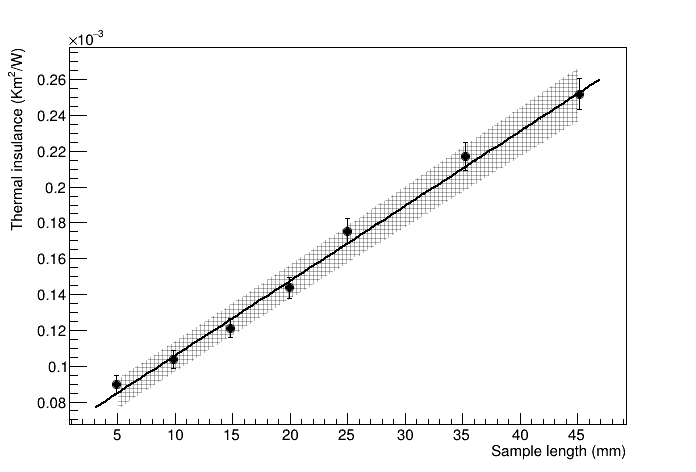

Iterative Minuit fit with 0.5 correlation between data point uncertainties. k = 239.278 +/- 8.91071 W/mK
