Sample Results

In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/31/2023
Apparatus, InPlane
Material, INPL24
Sample, 4
Length (mm), 19.97, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 15.01
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 25.9007, 25.0685, 24.3327, 23.4969, 22.765, 21.8782
Cold Fluxmeter Temperatures (C), 12.2731, 11.4304, 10.6314, 9.8674, 9.09945, 8.19677
Hot Fluxmeter Temperature Uncertainties (C), 0.00512932, 0.00514368, 0.00316132, 0.00362686, 0.00468093, 0.00554806
Cold Fluxmeter Temperature Uncertainties (C), 0.00286609, 0.00257446, 0.00238042, 0.00269174, 0.00252029, 0.00282703
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.833411, -1.57083, -2.40595, -3.14002, -4.02469
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.842739, -1.64133, -2.40523, -3.17361, -4.07658
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00231378, 0.00334924, 0.00388631, 0.00358405, 0.00492075
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00187652, 0.00172233, 0.00274412, 0.00257338, 0.00334666

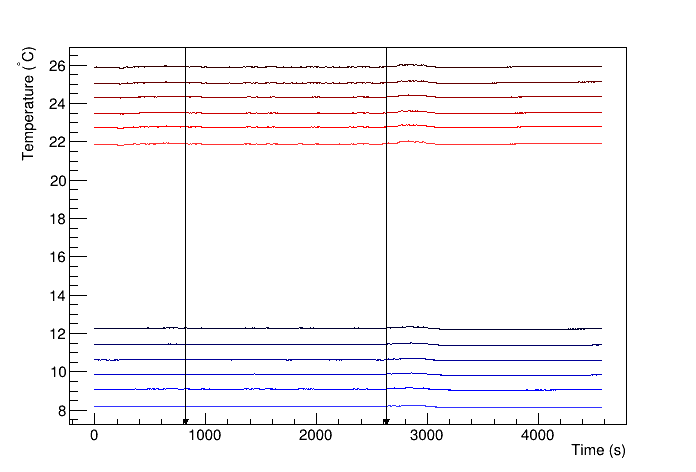

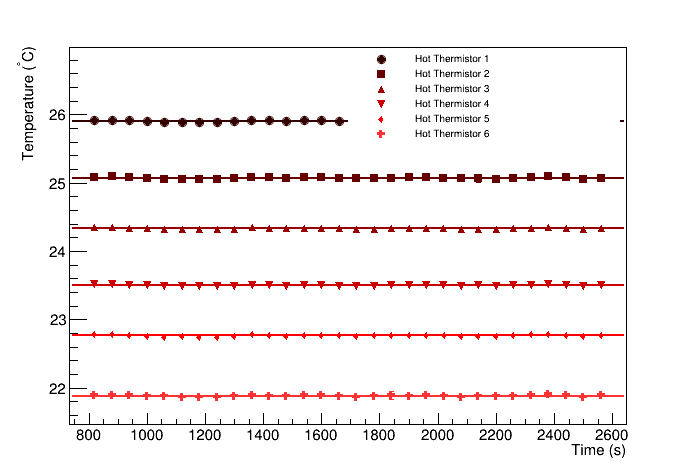

Heater Thermistors

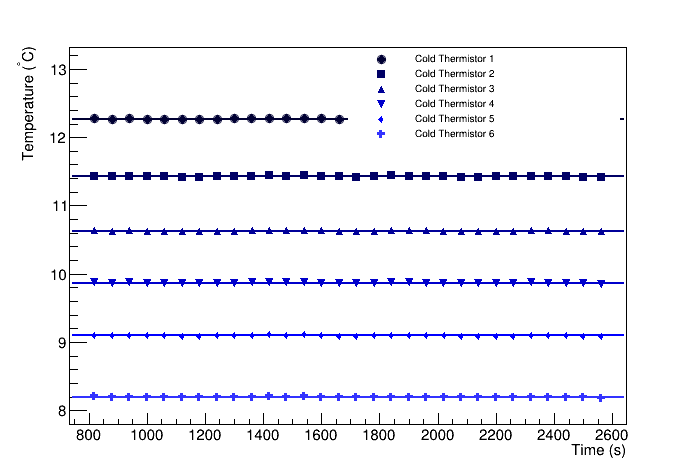

Cooler Thermistors

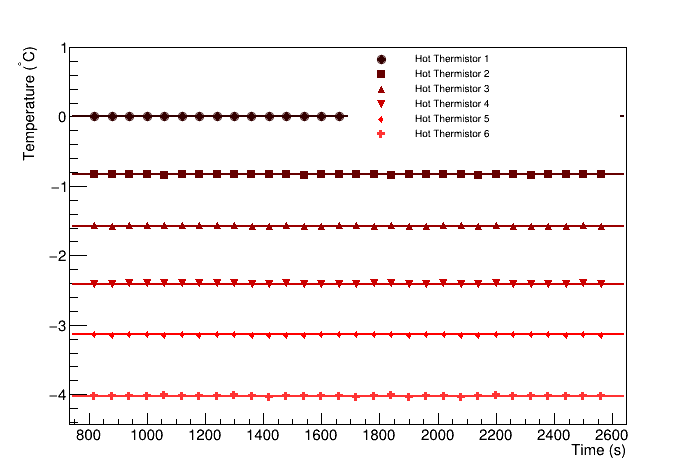

Heater Thermistors relative to hottest thermistor

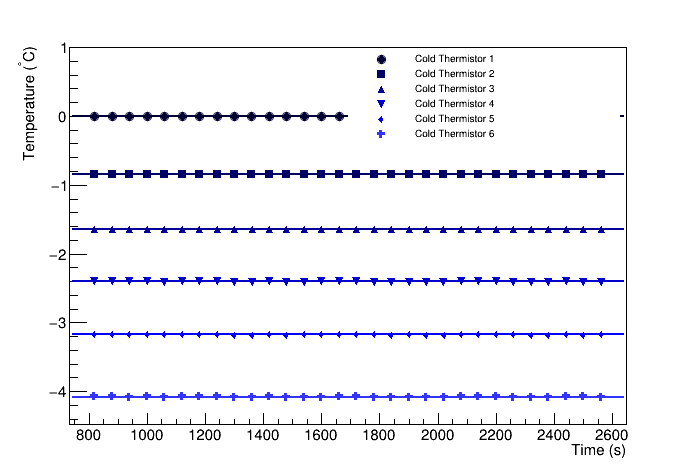

Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 9/1/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 35364.4 +/- 1342.94
Cold fluxmeter flux (W/m^2), 35697.5 +/- 1355.37
Heat flux through sample (W/m^2), 35530.9 +/- 968.438
Heat flow through sample (W), 11.4796 +/- 0.312891
Temperature at hot end of sample (C), 21.1195 +/- 0.203329
Temperature at cold end of sample (C), 13.0652 +/- 0.097384
deltaT (C), 8.0543 +/- 0.225447
R (K/W), 0.701617, 0.0274115
RA (Km^2/W), 0.000143832, 5.88851e-06

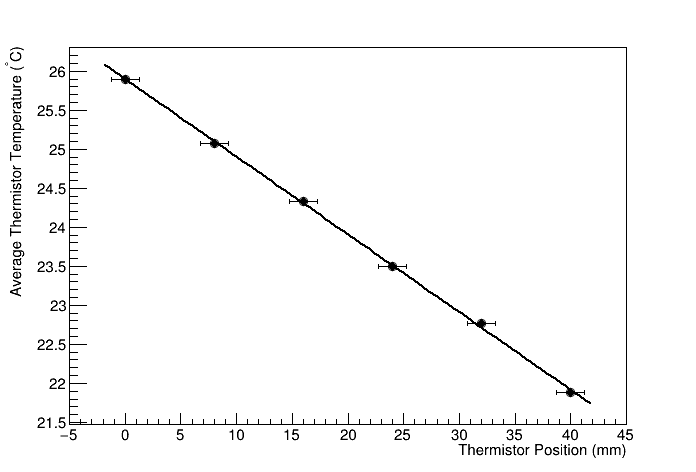

Hot flux meter fit

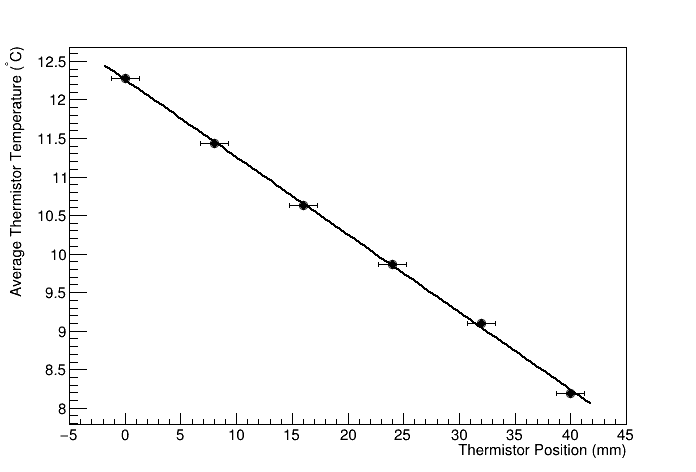

Cold flux meter fit

Hot flux meter difference fit

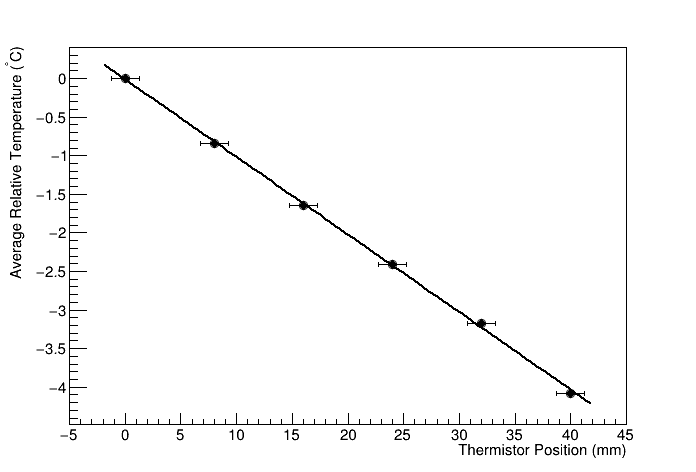

Cold flux meter difference fit
