Sample Results

In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 8/26/2023
Apparatus, InPlane
Material, INPL23
Sample, 2
Length (mm), 9.9, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.1, 0.05
Heater Voltage, 17.5
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 29.9219, 28.8441, 27.8987, 26.8469, 25.8781, 24.735
Cold Fluxmeter Temperatures (C), 15.2246, 14.1544, 13.136, 12.1325, 11.1095, 9.97919
Hot Fluxmeter Temperature Uncertainties (C), 0.00149915, 0.00148907, 0.00155355, 0.0015173, 0.00133602, 0.00150707
Cold Fluxmeter Temperature Uncertainties (C), 0.000883465, 0.00103917, 0.000967049, 0.00112615, 0.000872099, 0.00107584
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -1.07728, -2.0231, -3.07496, -4.04361, -5.18708
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -1.07004, -2.08849, -3.09191, -4.11487, -5.2449
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00235848, 0.00225418, 0.00209237, 0.00218717, 0.00192151
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00170734, 0.00103148, 0.00159168, 0.00130528, 0.00129504

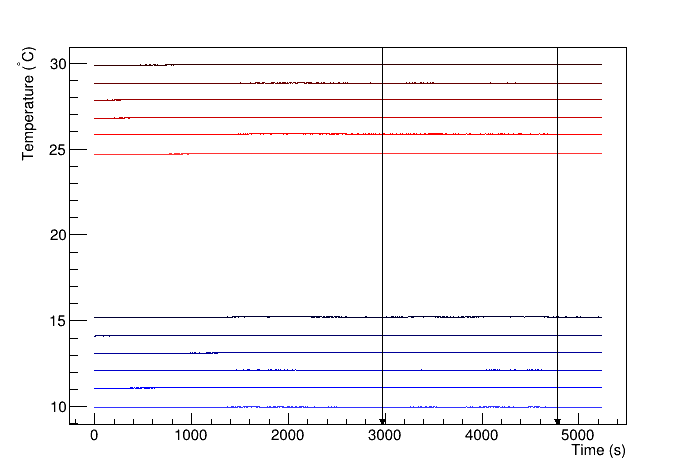

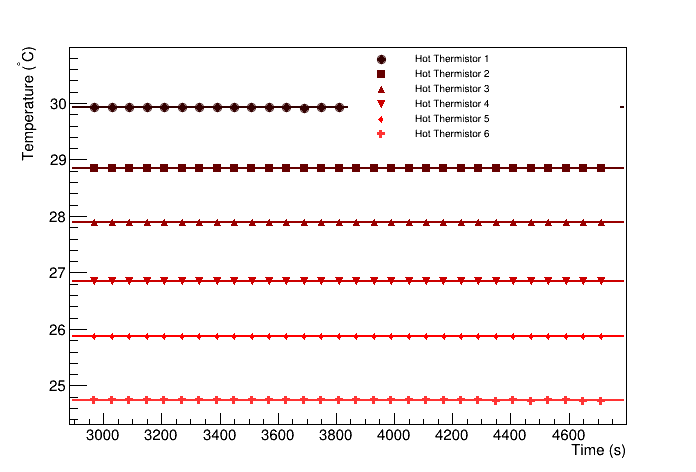

Heater Thermistors

Cooler Thermistors

Heater Thermistors relative to hottest thermistor

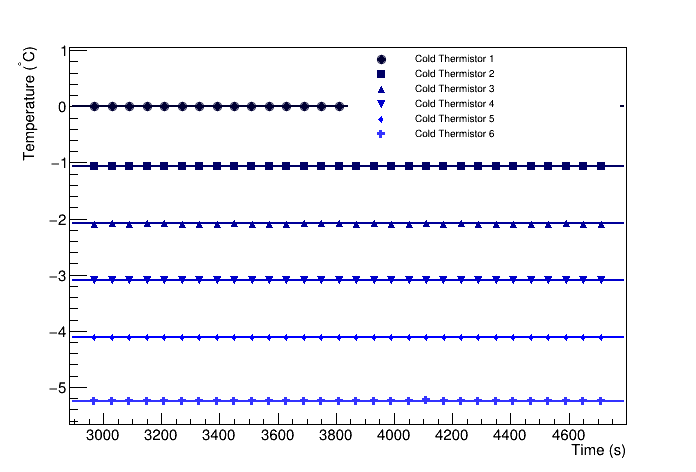

Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 9/1/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 45524.2 +/- 1728.22
Cold fluxmeter flux (W/m^2), 46117.5 +/- 1750.54
Heat flux through sample (W/m^2), 45820.8 +/- 1265.22
Heat flow through sample (W), 14.8042 +/- 0.408776
Temperature at hot end of sample (C), 23.7637 +/- 0.26168
Temperature at cold end of sample (C), 16.2603 +/- 0.12578
deltaT (C), 7.50332 +/- 0.29034
R (K/W), 0.506839, 0.0240934
RA (Km^2/W), 0.000103902, 5.10014e-06

Hot flux meter fit

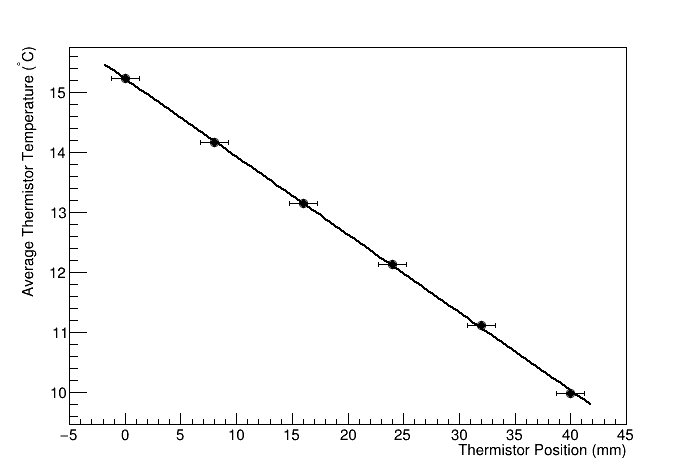

Cold flux meter fit

Hot flux meter difference fit

Cold flux meter difference fit
