In-plane thermal conductivity measurement

Output of InPlaneAnalysis_Metaslope. Souvik Das, 2023

Analyst: Souvik Das
Analysis date: 4/27/2023
Material: INPL13

Underlying sample results:

• INPL13_1, FEA Heat Loss uncertainty = 0.001
• INPL13_2, FEA Heat Loss uncertainty = 0.00278
• INPL13_3, FEA Heat Loss uncertainty = 0.00543
• INPL13_4, FEA Heat Loss uncertainty = 0.00896
• INPL13_5, FEA Heat Loss uncertainty = 0.01333

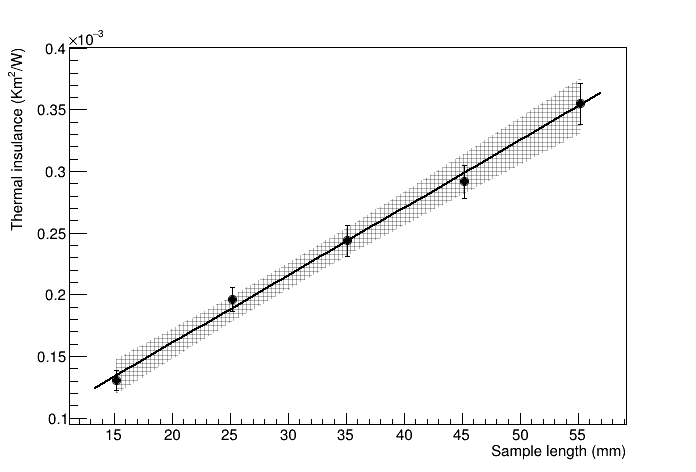

Iterative fit with no correlations between data points. k = 182.214 +/- 12.5406 W/mK

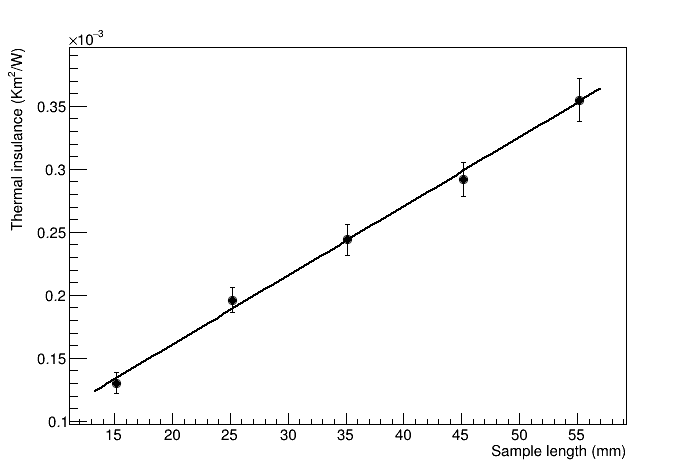

Analytical fit with 0.5 correlation between data point uncertainties. k = 182.198 +/- 13.8157 W/mK

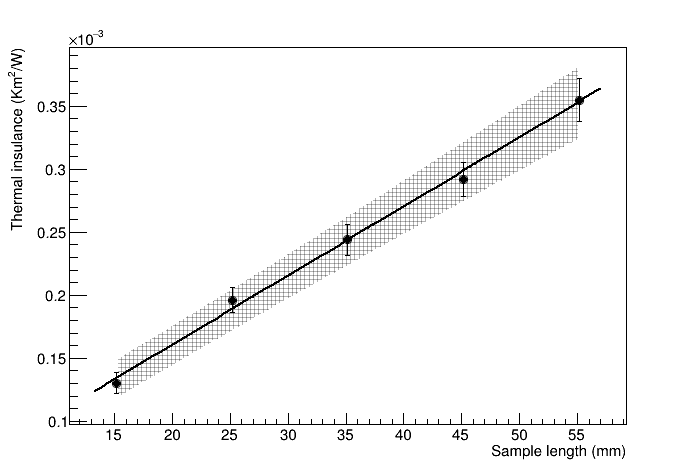

Iterative Minuit fit with 0.5 correlation between data point uncertainties. k = 182.198 +/- 10.1277 W/mK
