Sample Results

In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 07/01/2021
Apparatus, InPlane
Material, INPL13
Sample, 3
Length (mm), 35.14, 0.05
Width (mm), 50.11, 0.05
Thickness (mm), 3.67, 0.05
Heater Voltage, 9.3
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 22.8089, 22.4256, 22.1391, 21.7724, 21.434, 21.0994
Cold Fluxmeter Temperatures (C), 13.7627, 13.3139, 12.9287, 12.6339, 12.2784, 11.9126
Hot Fluxmeter Temperature Uncertainties (C), 0.00147685, 0.00180444, 0.00275249, 0.00135522, 0.00141395, 0.00186962
Cold Fluxmeter Temperature Uncertainties (C), 0.00190672, 0.00149239, 0.00141322, 0.0011883, 0.00111515, 0.00135857
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.382957, -0.669098, -1.03652, -1.37459, -1.71084
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.448424, -0.833629, -1.12797, -1.4843, -1.85007
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00133609, 0.00229372, 0.00128924, 0.00158343, 0.00193391
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00158753, 0.00119637, 0.00169327, 0.00151555, 0.00189587

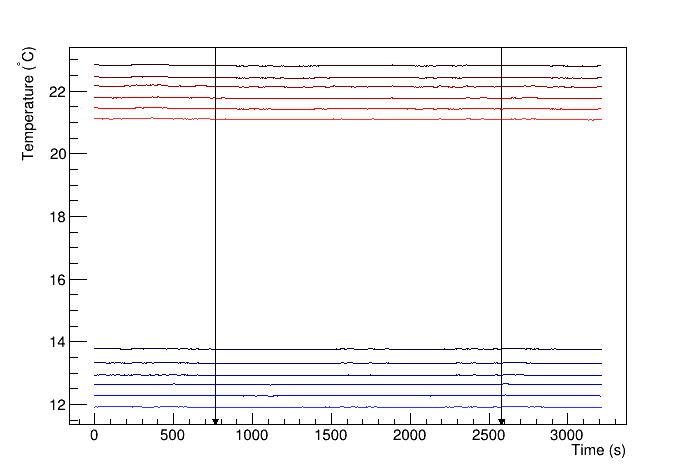

Heater Thermistors

Cooler Thermistors

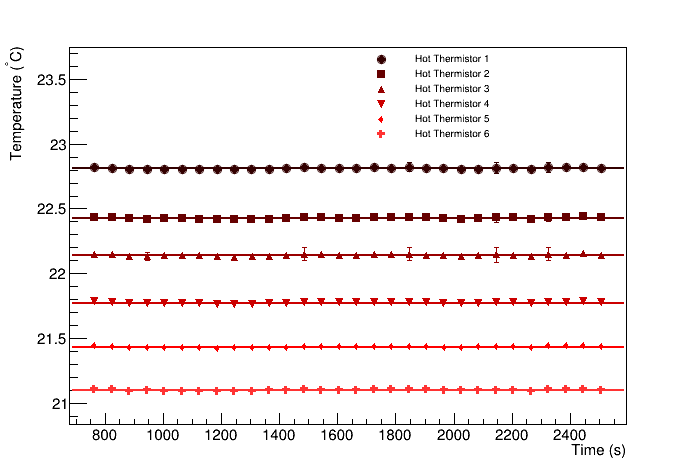

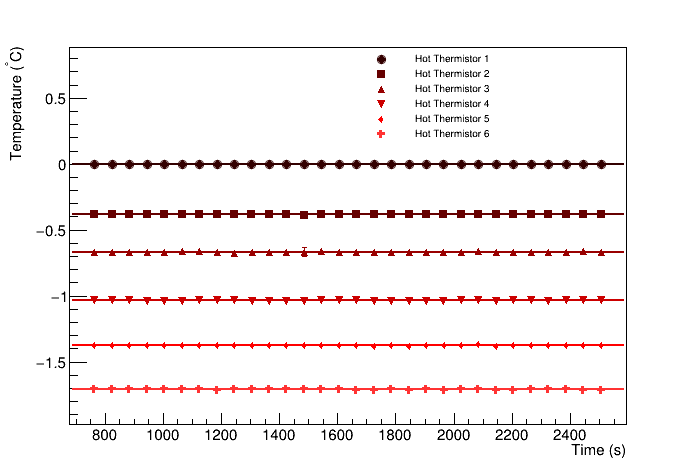

Heater Thermistors relative to hottest thermistor

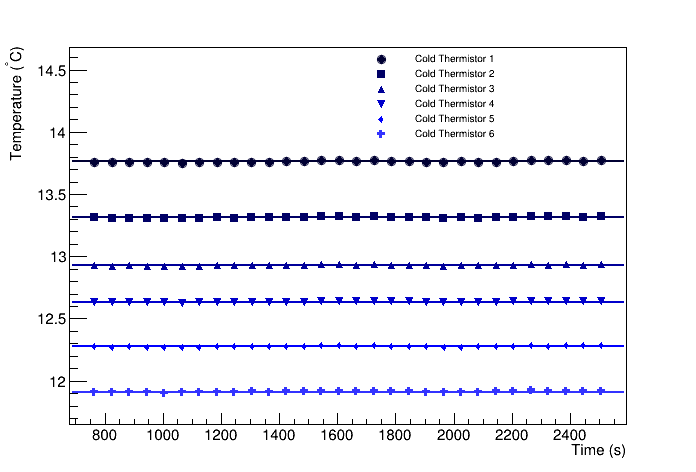

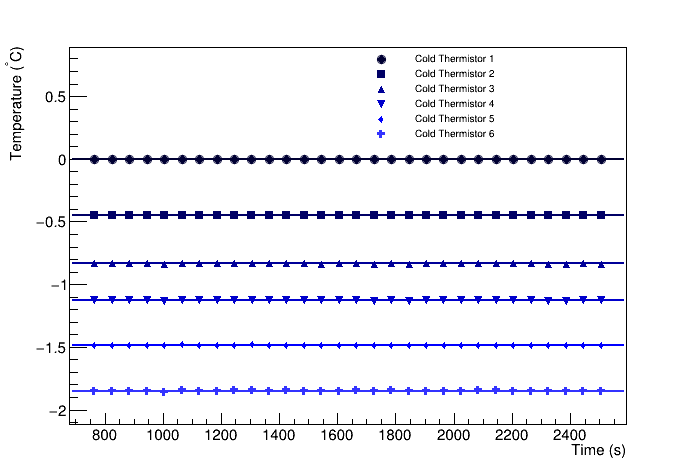

Cooler Thermistors relative to the hottest thermistor

Analyst, SSouvik Das
Analysis date, 4/26/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 15095.4 +/- 573.32
Cold fluxmeter flux (W/m^2), 16095.7 +/- 612.075
Heat flux through sample (W/m^2), 15595.6 +/- 652.665
Heat flow through sample (W), 5.03875 +/- 0.210868
Temperature at hot end of sample (C), 20.7567 +/- 0.0867692
Temperature at cold end of sample (C), 14.0745 +/- 0.0439641
deltaT (C), 6.68221 +/- 0.0972714
R (K/W), 1.32617, 0.0587608
RA (Km^2/W), 0.000243887, 1.13082e-05

Hot flux meter fit

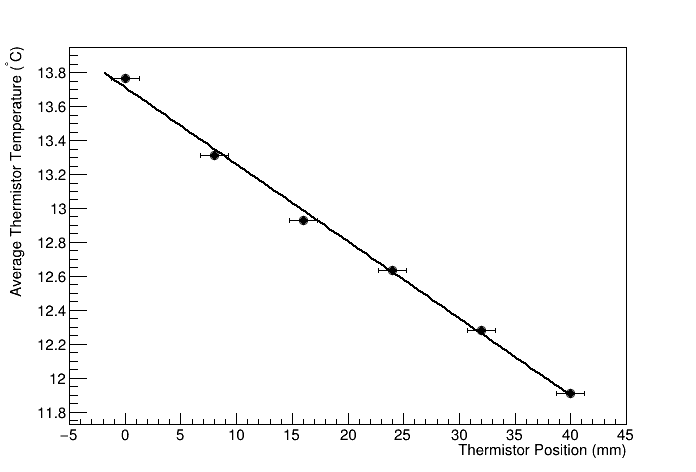

Cold flux meter fit

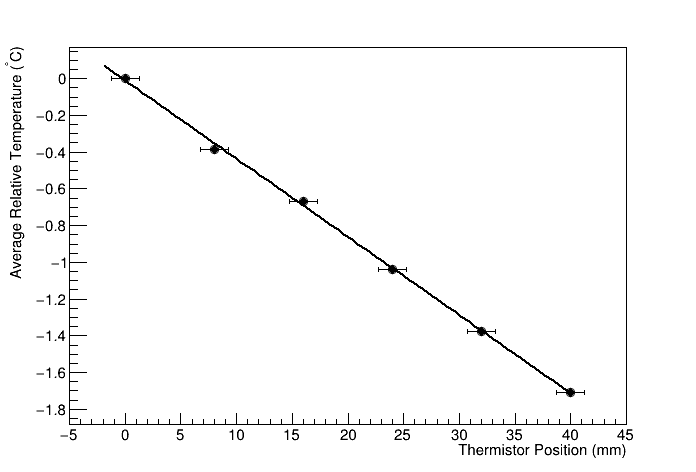

Hot flux meter difference fit

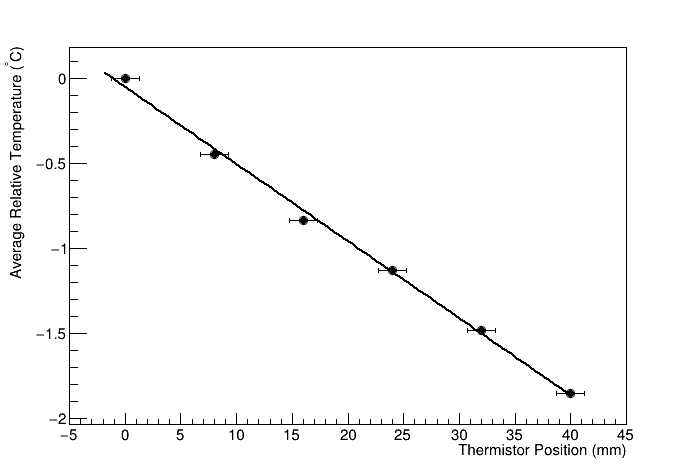

Cold flux meter difference fit
