Sample Results

In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 08/05/2022
Apparatus, InPlane
Material, INPL13
Sample, 1
Length (mm), 15.17, 0.05
Width (mm), 50.11, 0.05
Thickness (mm), 3.67, 0.05
Heater Voltage, 9.4
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 21.7521, 21.3599, 21.0721, 20.683, 20.3323, 19.9792
Cold Fluxmeter Temperatures (C), 15.5097, 15.0975, 14.6225, 14.316, 13.9455, 13.5515
Hot Fluxmeter Temperature Uncertainties (C), 0.00311794, 0.00352462, 0.00450033, 0.00302514, 0.00295036, 0.00363706
Cold Fluxmeter Temperature Uncertainties (C), 0.00262143, 0.00374169, 0.00148566, 0.00172025, 0.00159034, 0.0016893
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.391828, -0.68589, -1.07283, -1.42197, -1.77431
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.424331, -0.877918, -1.18992, -1.56384, -1.95899
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.000793896, 0.00180945, 0.00125086, 0.00137372, 0.00182771
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00412887, 0.00196921, 0.00187665, 0.00221548, 0.00289803

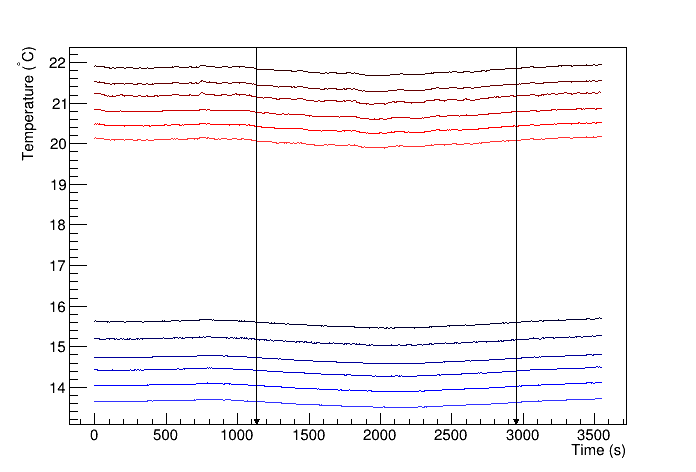

Heater Thermistors Cooler Thermistors Heater Thermistors relative to hottest thermistor Cooler Thermistors relative to the hottest thermistor
Analyst, Souvik Das
Analysis date, 4/26/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 15669.9 +/- 595.096
Cold fluxmeter flux (W/m^2), 17191.4 +/- 653.744
Heat flux through sample (W/m^2), 16430.6 +/- 879.84
Heat flow through sample (W), 5.30854 +/- 0.284266
Temperature at hot end of sample (C), 19.6282 +/- 0.0901769
Temperature at cold end of sample (C), 15.8665 +/- 0.0471018
deltaT (C), 3.76171 +/- 0.101737
R (K/W), 0.708616, 0.0425106
RA (Km^2/W), 0.000130317, 8.01798e-06

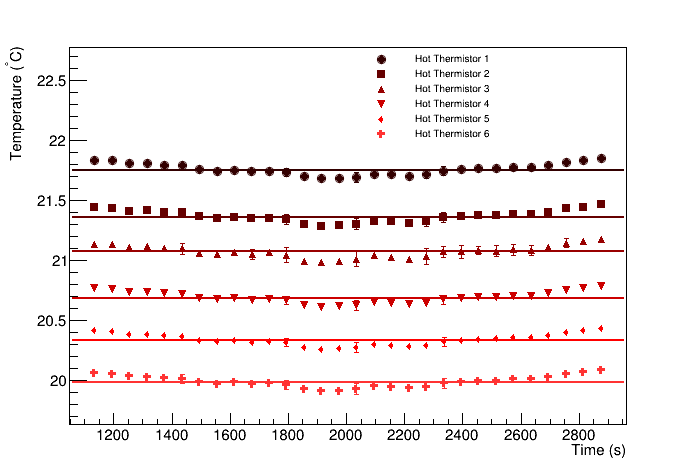

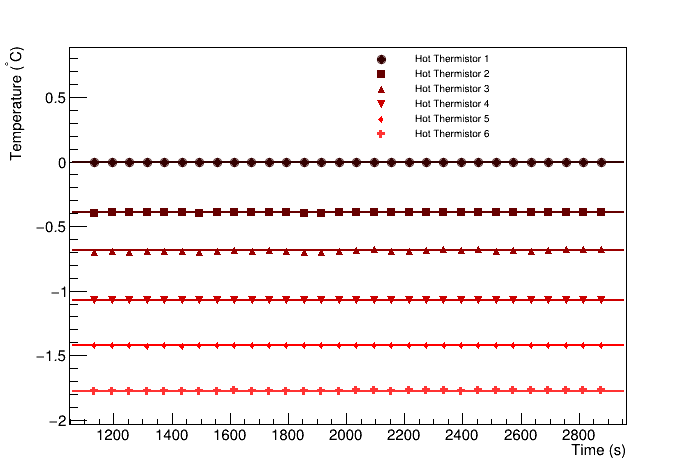

Hot flux meter fit

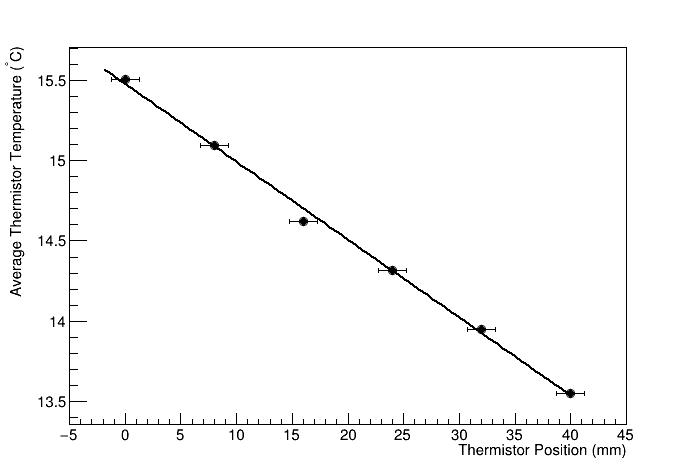

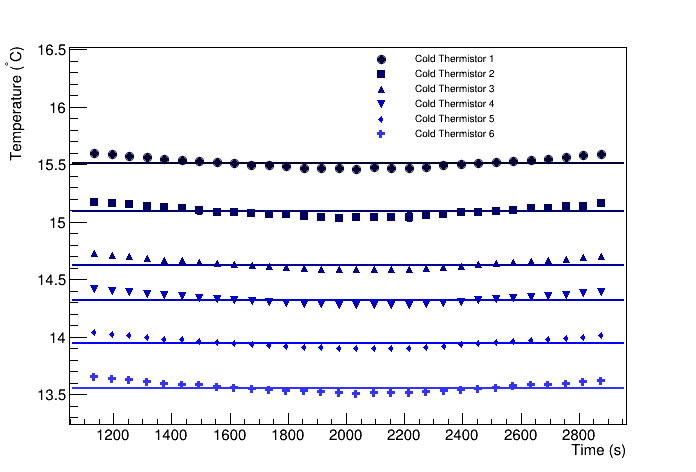

Cold flux meter fit

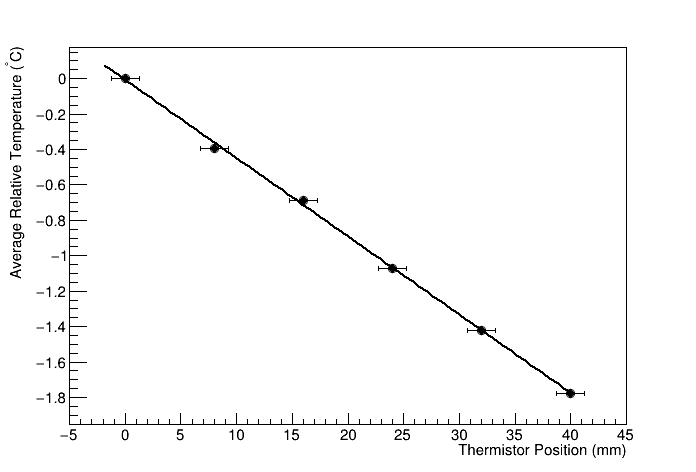

Hot flux meter difference fit

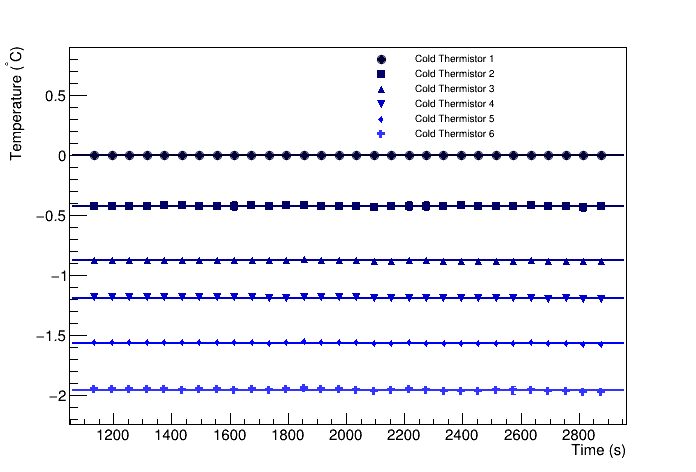

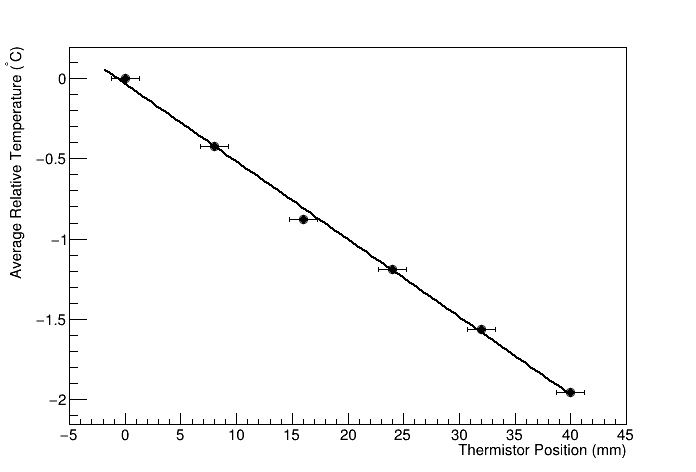

Cold flux meter difference fit
