Sample Results

In-plane thermal conductivity measurement
Experimentalist, Unknown
Date of measurement, 3/23/20
Apparatus, InPlane
Material, INPL11
Sample, 1
Length (mm), 15.2, 0.05
Width (mm), 50, 0.05
Thickness (mm), 3.56, 0.05
Heater Voltage (V), 8.6
Cooler Voltage (V), 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 21.9943, 21.6441, 21.3748, 21.0265, 20.7171, 20.388
Cold Fluxmeter Temperatures (C), 17.6298, 17.2337, 16.8939, 16.6089, 16.2775, 15.9309
Hot Fluxmeter Temperature Uncertainties (C), 0.0044273, 0.00422865, 0.00478144, 0.00301916, 0.00308511, 0.00325326
Cold Fluxmeter Temperature Uncertainties (C), 0.00320207, 0.00314684, 0.00280223, 0.00297242, 0.00300817, 0.00295012
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.348858, -0.623477, -0.976739, -1.27965, -1.61451
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.399241, -0.738169, -1.02031, -1.35609, -1.69862
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00452242, 0.0046163, 0.00407031, 0.00443232, 0.00394846
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00532707, 0.00271462, 0.00414296, 0.004385, 0.00270389

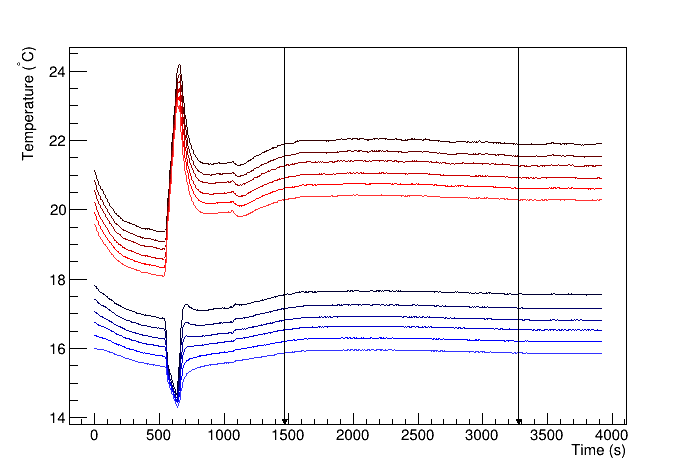

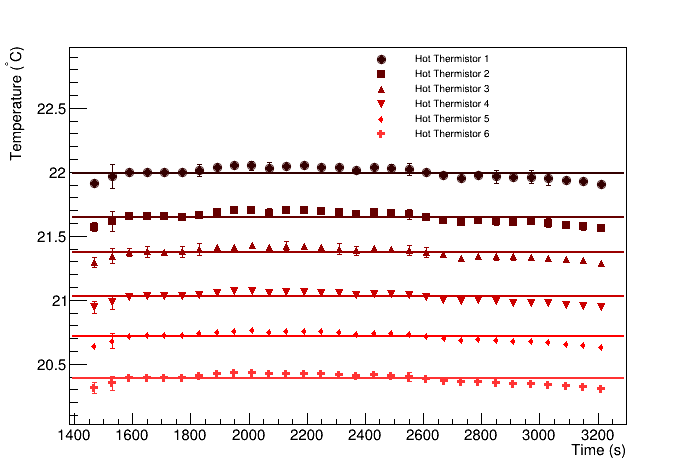

Heater Thermistors

Cooler Thermistors

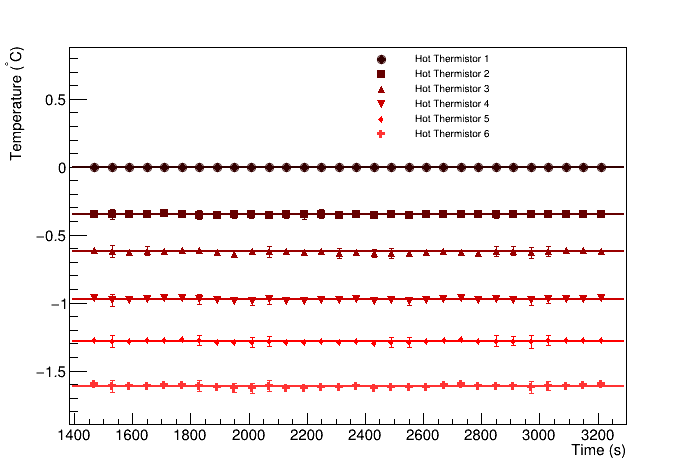

Heater Thermistors relative to hottest thermistor

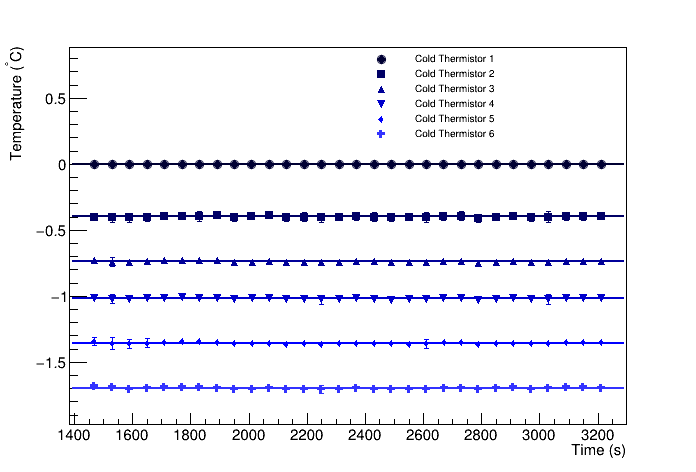

Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 10/22/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 14233.4 +/- 541.512
Cold fluxmeter flux (W/m^2), 14796.3 +/- 562.888
Heat flux through sample (W/m^2), 14514.9 +/- 481.383
Heat flow through sample (W), 4.68958 +/- 0.155529
Temperature at hot end of sample (C), 20.0739 +/- 0.0816525
Temperature at cold end of sample (C), 17.9294 +/- 0.0404464
deltaT (C), 2.14444 +/- 0.0911211
R (K/W), 0.457278, 0.0246483
RA (Km^2/W), 8.13955e-05, 4.53462e-06

Hot flux meter fit

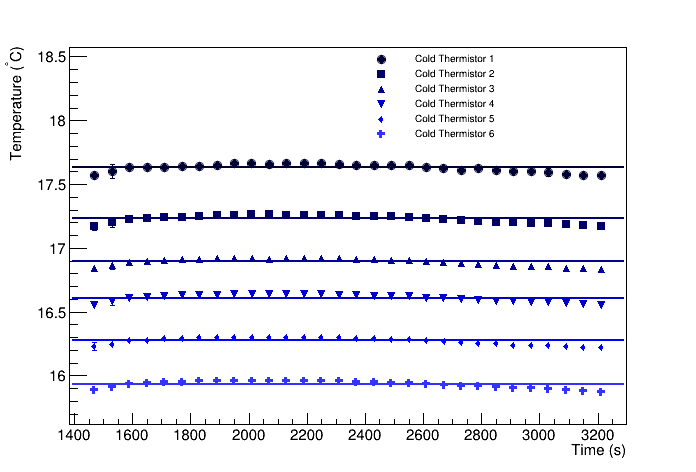

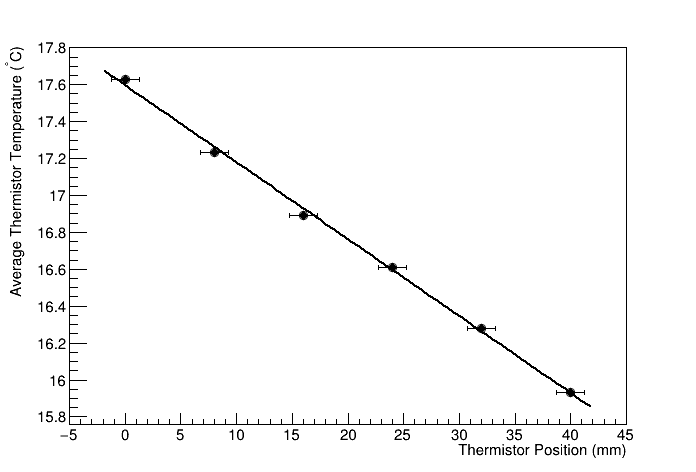

Cold flux meter fit

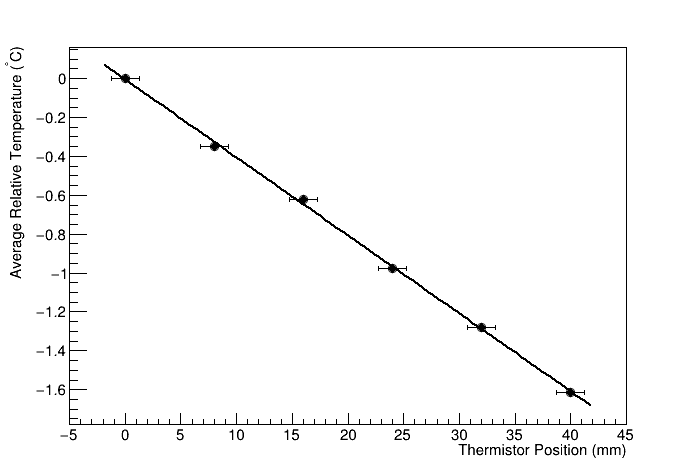

Hot flux meter difference fit

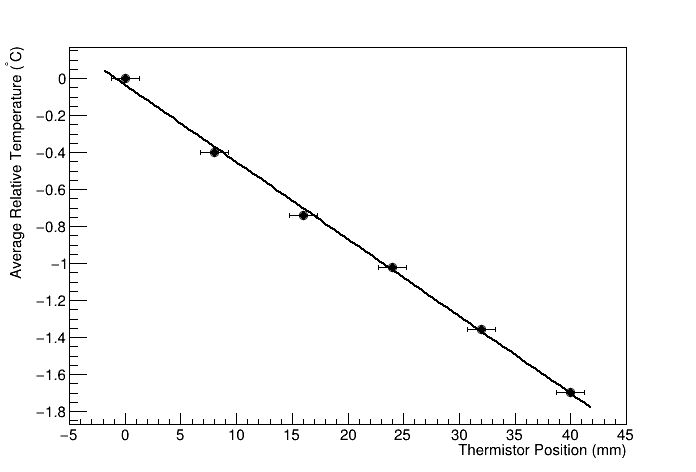

Cold flux meter difference fit
