In-plane thermal conductivity measurement result

Output of InPlaneAnalysis_Metaslope. Souvik Das, 2023

Analyst: Souvik Das
Analysis date: 10/23/2023
Material: INPL11

Underlying sample results:

  • INPL11_1, FEA Heat Loss uncertainty = 0.001
  • INPL11_3, FEA Heat Loss uncertainty = 0.003
  • INPL11_4, FEA Heat Loss uncertainty = 0.005
  • INPL11_5, FEA Heat Loss uncertainty = 0.008

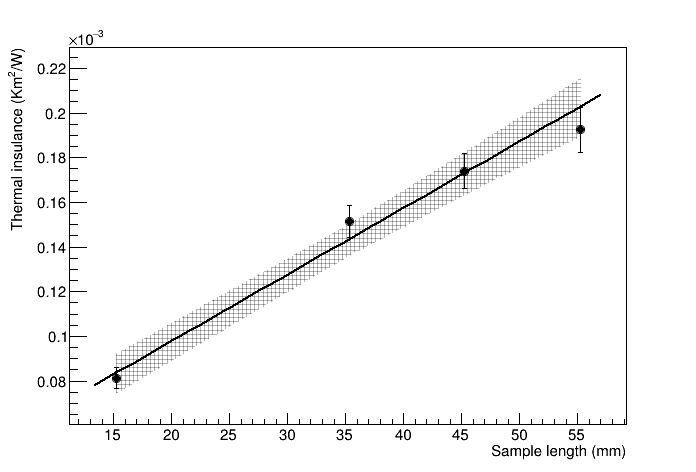

Iterative fit with no correlations between data points:
k = 335.572 +/- 24.6451 W/mK
R = 3.79896e-05 +/- 7.15544e-06 Km^2/W
X^2/(ndof - 2) = 1.28884

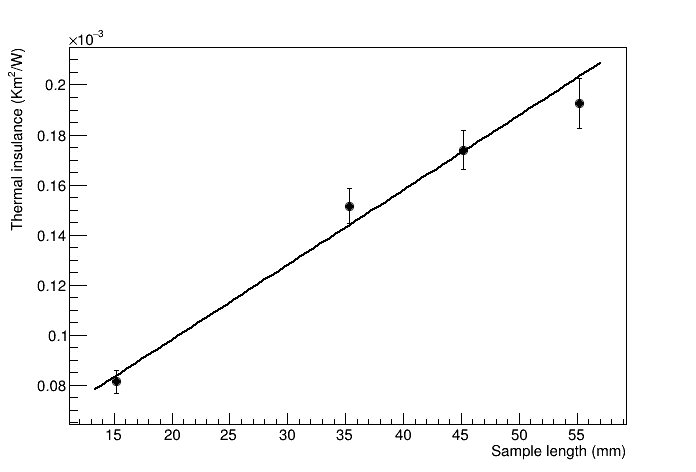

Analytical fit with 0.5 correlation between data point uncertainties:
k = 334.618 +/- 27.2006 W/mK
R = 3.8175e-05 +/- 0 Km^2/W

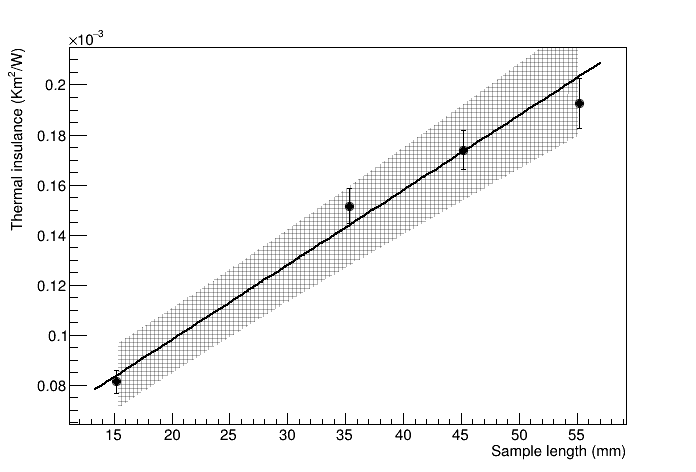

Iterative Minuit fit with 0.5 correlation between data point uncertainties.
k = 334.618 +/- 28.0417 W/mK
Rint = 3.8175e-05 +/- 7.6481e-06 Km^2/W
X^2/(ndof - 2) = 1.28696
