Sample Results

In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 5/29/23
Apparatus, InPlane
Material, INPL22
Sample, 7
Length (mm), 45.19, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.11, 0.05
Heater Voltage, 13.51
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130

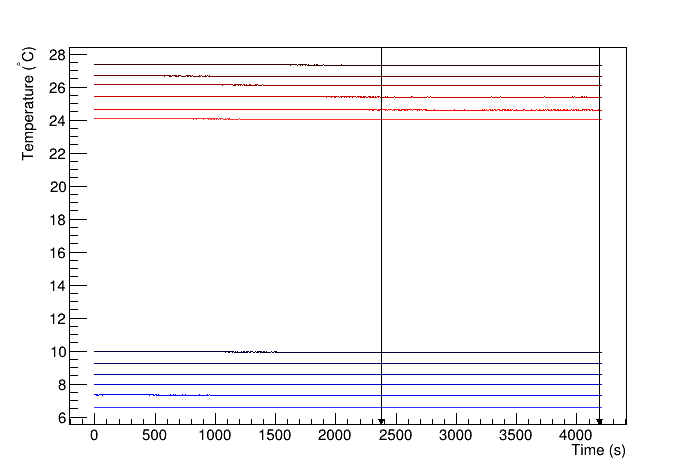

Hot Fluxmeter Temperatures (C), 27.3297, 26.6412, 26.1051, 25.3972, 24.6132, 24.0391
Cold Fluxmeter Temperatures (C), 9.93415, 9.2227, 8.58048, 7.95444, 7.32203, 6.57832
Hot Fluxmeter Temperature Uncertainties (C), 0.00131589, 0.00126308, 0.00136428, 0.00133244, 0.00118961, 0.00146539
Cold Fluxmeter Temperature Uncertainties (C), 0.00117924, 0.000941263, 0.00113505, 0.00116808, 0.000875616, 0.000961306
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.688499, -1.22466, -1.93283, -2.7168, -3.29075
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.711156, -1.35335, -1.97927, -2.61201, -3.35578
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00212344, 0.00187768, 0.00204118, 0.0019754, 0.00177185
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00197008, 0.00108896, 0.00191205, 0.00151094, 0.00126324

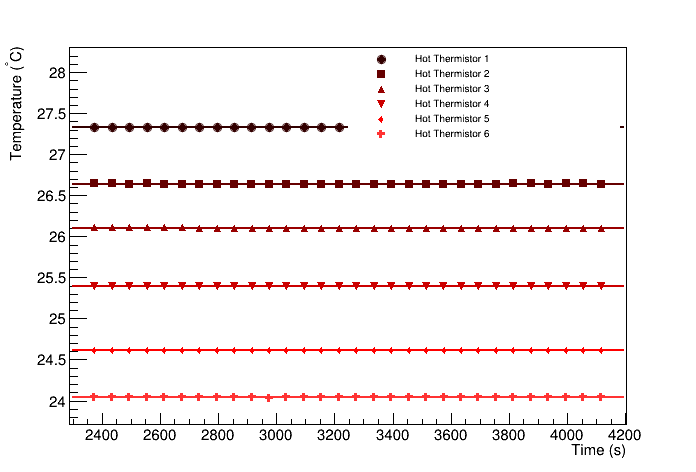

Heater Thermistors

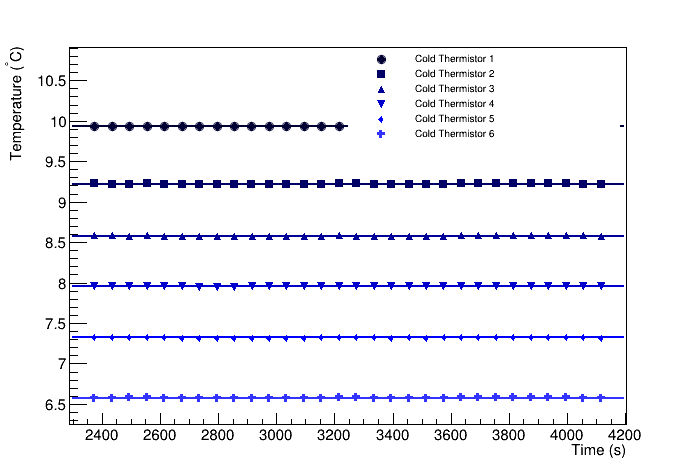

Cooler Thermistors

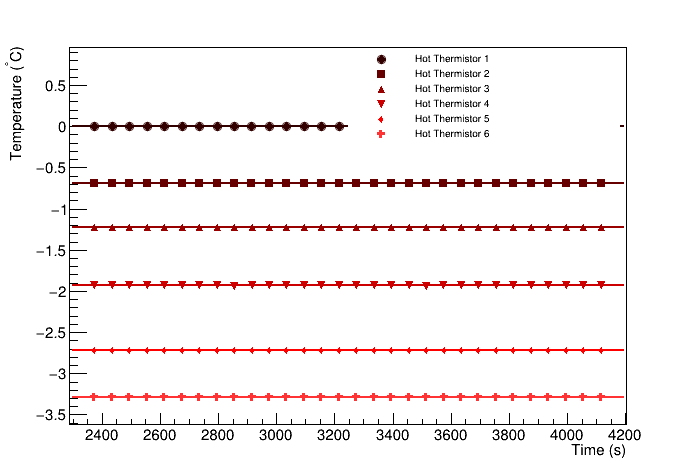

Heater Thermistors relative to hottest thermistor

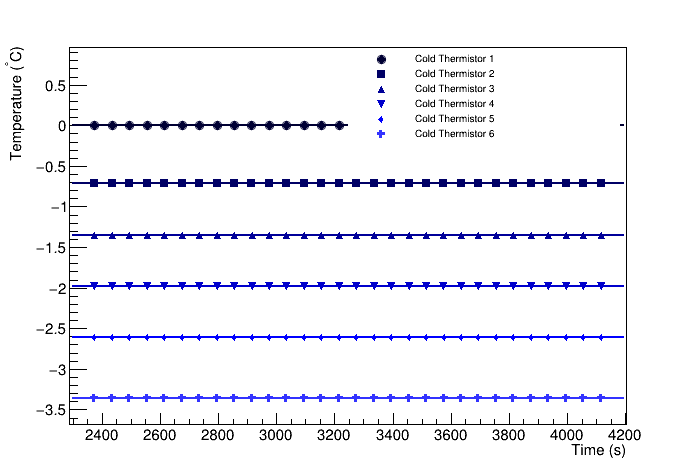

Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 7/18/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 29540.2 +/- 1122.49
Cold fluxmeter flux (W/m^2), 29318.3 +/- 1113.13
Heat flux through sample (W/m^2), 29429.3 +/- 798.171
Heat flow through sample (W), 9.50824 +/- 0.257879
Temperature at hot end of sample (C), 23.3578 +/- 0.169944
Temperature at cold end of sample (C), 10.5778 +/- 0.0799735
deltaT (C), 12.7801 +/- 0.187821
R (K/W), 1.34411, 0.0414624
RA (Km^2/W), 0.000276214, 9.16334e-06

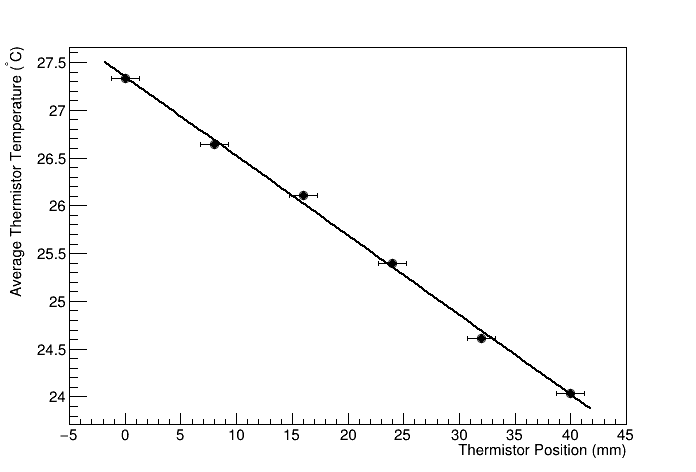

Hot flux meter fit

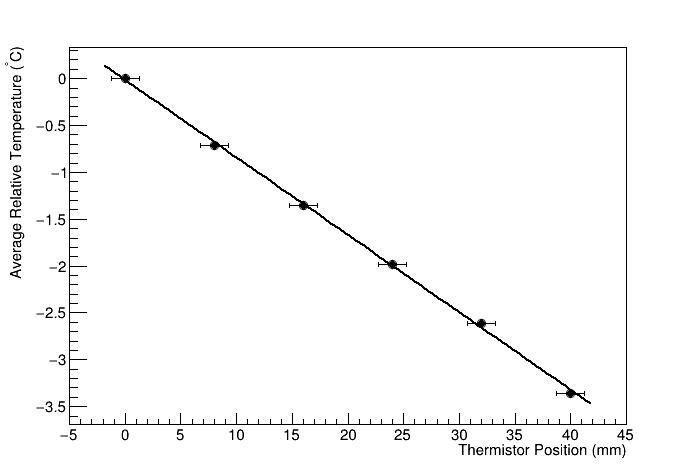

Cold flux meter fit

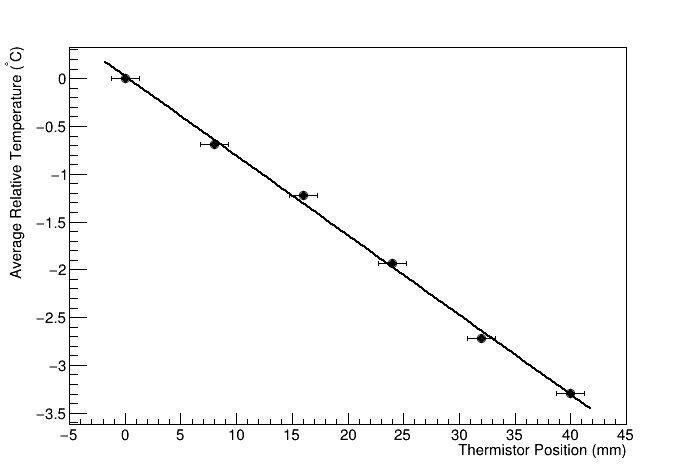

Hot flux meter difference fit

Cold flux meter difference fit
