Sample Results

In-plane thermal conductivity measurement
Experimentalist, Michael Wasem
Date of measurement, 5/29/2023
Apparatus, InPlane
Material, INPL22
Sample, 5
Length (mm), 24.9, 0.05
Width (mm), 50, 0.05
Thickness (mm), 4.11, 0.05
Heater Voltage, 15
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130

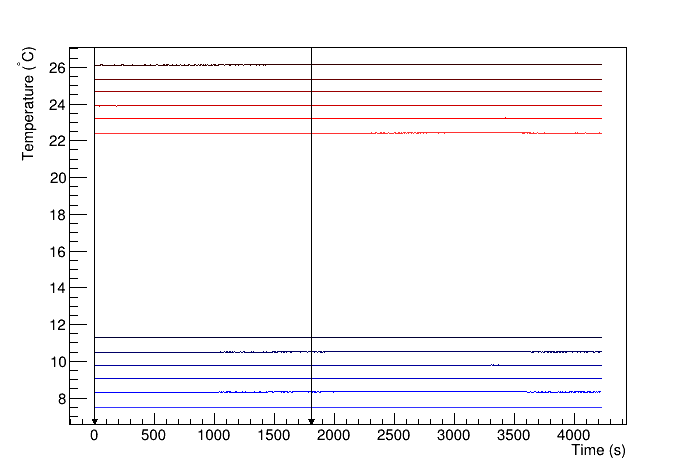

Hot Fluxmeter Temperatures (C), 26.1228, 25.3176, 24.6672, 23.9004, 23.2033, 22.401
Cold Fluxmeter Temperatures (C), 11.2923, 10.5049, 9.77748, 9.05497, 8.3296, 7.49164
Hot Fluxmeter Temperature Uncertainties (C), 0.00123286, 0.00142205, 0.001548, 0.00143073, 0.00128698, 0.0013939
Cold Fluxmeter Temperature Uncertainties (C), 0.00113795, 0.000862069, 0.0010512, 0.00119571, 0.00103339, 0.00110159
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.805026, -1.45499, -2.22248, -2.91973, -3.72147
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.786856, -1.51462, -2.23662, -2.9627, -3.80117
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00209039, 0.00194734, 0.00186401, 0.00193355, 0.00171264
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00189798, 0.00110943, 0.00184666, 0.00153271, 0.00136518

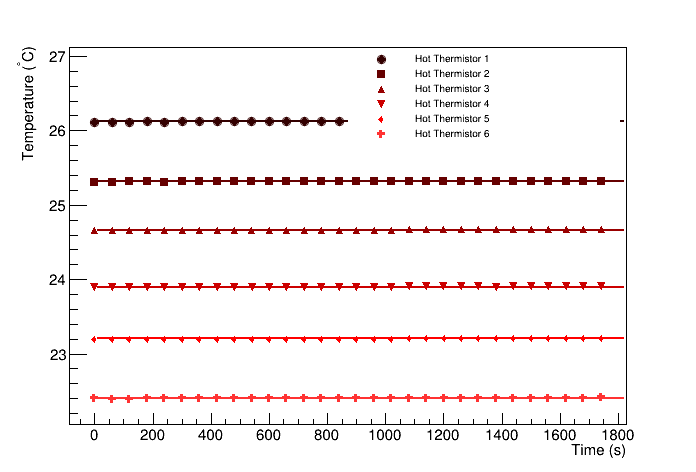

Heater Thermistors

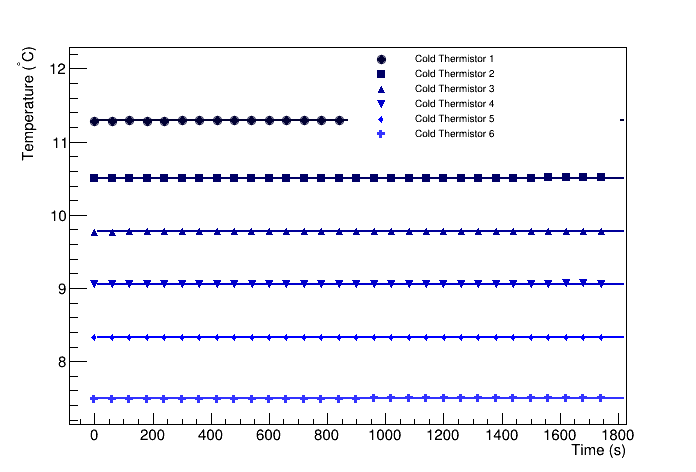

Cooler Thermistors

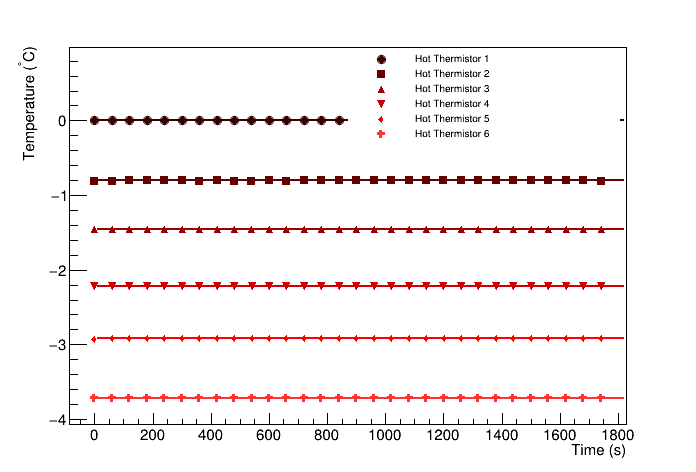

Heater Thermistors relative to hottest thermistor

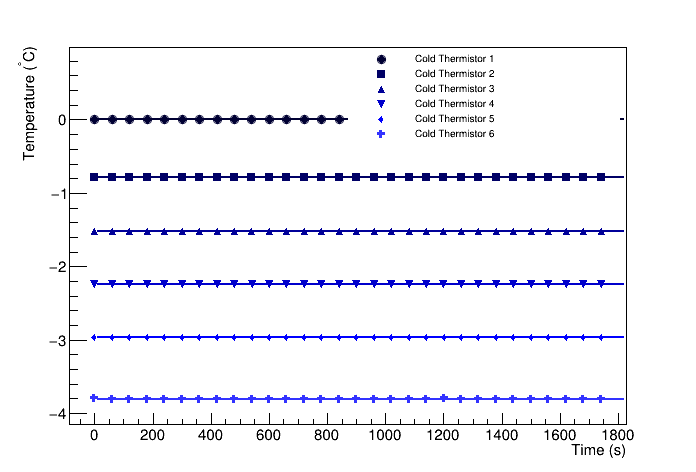

Cooler Thermistors relative to the hottest thermistor

Analyst, Michael Wasem
Analysis date, 7/18/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 32630.1 +/- 1238.86
Cold fluxmeter flux (W/m^2), 33306.2 +/- 1264.4
Heat flux through sample (W/m^2), 32968.2 +/- 947.432
Heat flow through sample (W), 10.6516 +/- 0.306104
Temperature at hot end of sample (C), 21.6951 +/- 0.187586
Temperature at cold end of sample (C), 12.0351 +/- 0.0908313
deltaT (C), 9.66004 +/- 0.20842
R (K/W), 0.906909, 0.0325902
RA (Km^2/W), 0.00018637, 7.07312e-06

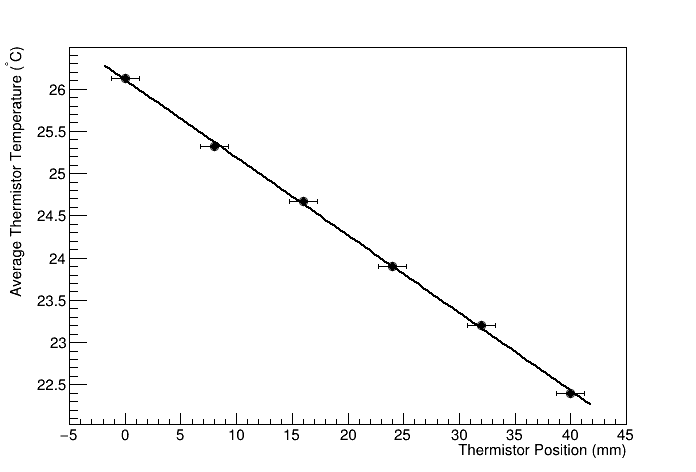

Hot flux meter fit

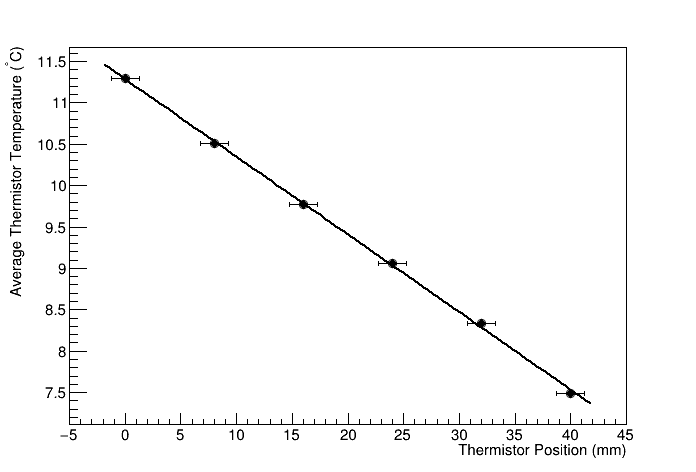

Cold flux meter fit

Hot flux meter difference fit

Cold flux meter difference fit
