Sample Results

In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 06/30/2022
Apparatus, InPlane
Material, INPL21
Sample, 3
Length (mm), 28.50, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 4.03, 0.05
Heater Voltage, 8.61
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 23.4934, 23.1689, 22.9418, 22.6276, 22.3124, 22.0624
Cold Fluxmeter Temperatures (C), 17.7258, 17.4116, 17.1516, 16.8955, 16.6971, 16.3272
Hot Fluxmeter Temperature Uncertainties (C), 0.00237365, 0.0022521, 0.00225056, 0.00214317, 0.00202838, 0.00203758
Cold Fluxmeter Temperature Uncertainties (C), 0.00144445, 0.0012803, 0.00116904, 0.00140879, 0.0011559, 0.00109973
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.313575, -0.536651, -0.844748, -1.14529, -1.39805
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.307602, -0.572296, -0.829044, -1.02481, -1.39871
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00117407, 0.00130253, 0.00115021, 0.00136644, 0.00137636
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00143967, 0.00109952, 0.00126838, 0.0012082, 0.000954751

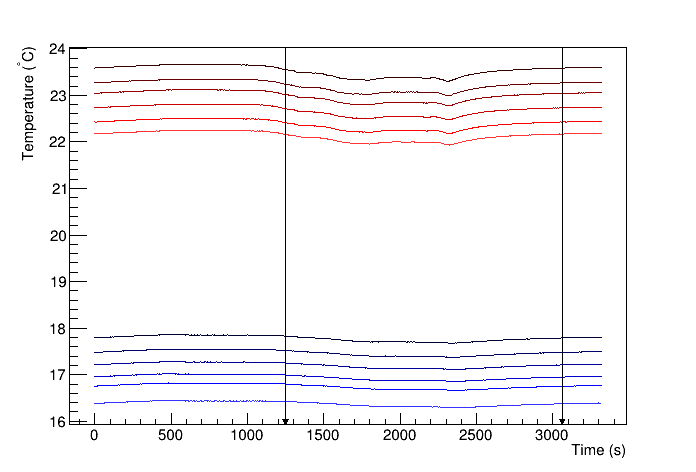

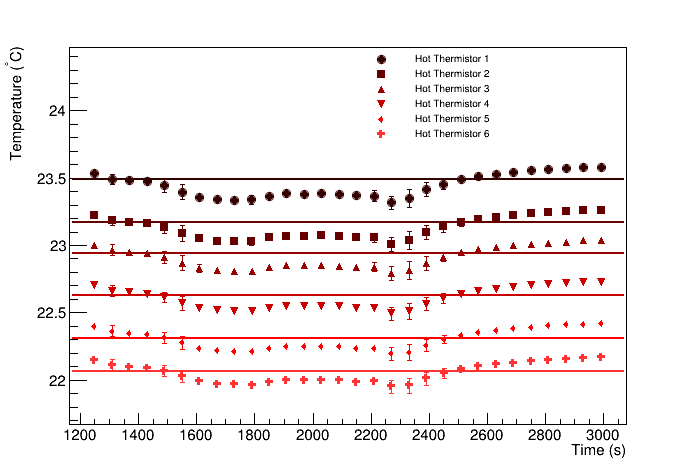

Heater Thermistors

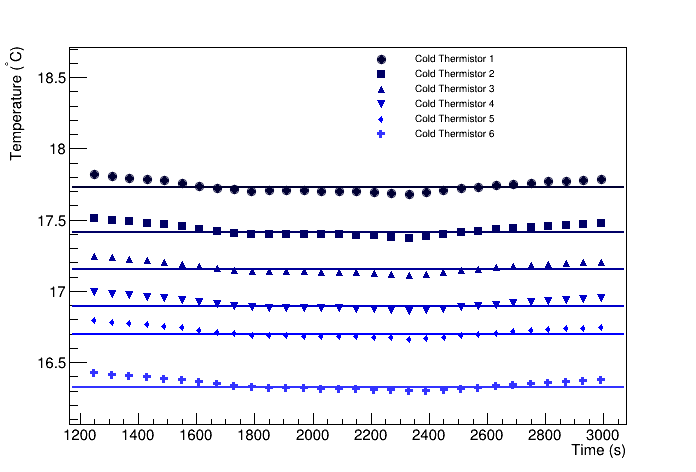

Cooler Thermistors

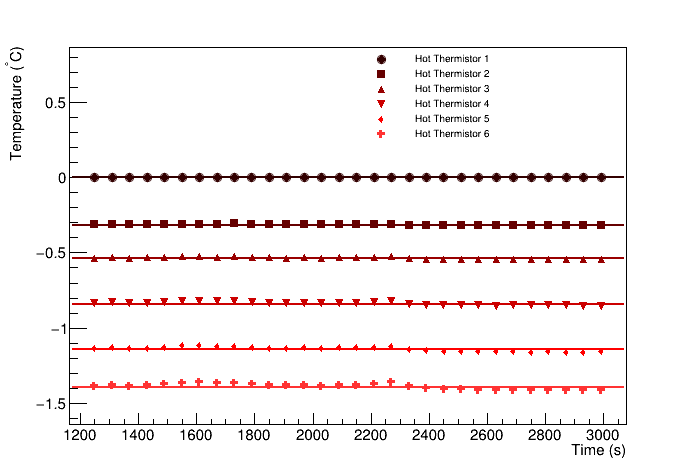

Heater Thermistors relative to hottest thermistor

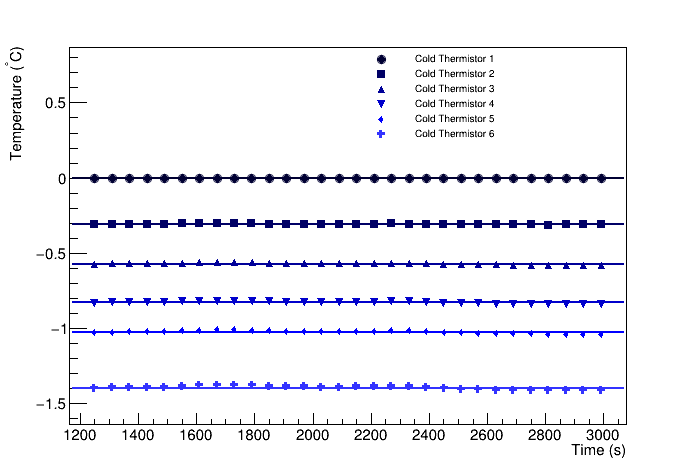

Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/27/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 12435.7 +/- 472.454
Cold fluxmeter flux (W/m^2), 11987.2 +/- 456.32
Heat flux through sample (W/m^2), 12211.4 +/- 397.697
Heat flow through sample (W), 3.94537 +/- 0.128491
Temperature at hot end of sample (C), 21.762 +/- 0.0734216
Temperature at cold end of sample (C), 17.9792 +/- 0.0327347
deltaT (C), 3.78281 +/- 0.0803884
R (K/W), 0.958798, 0.0372854
RA (Km^2/W), 0.000193198, 7.88848e-06

Hot flux meter fit

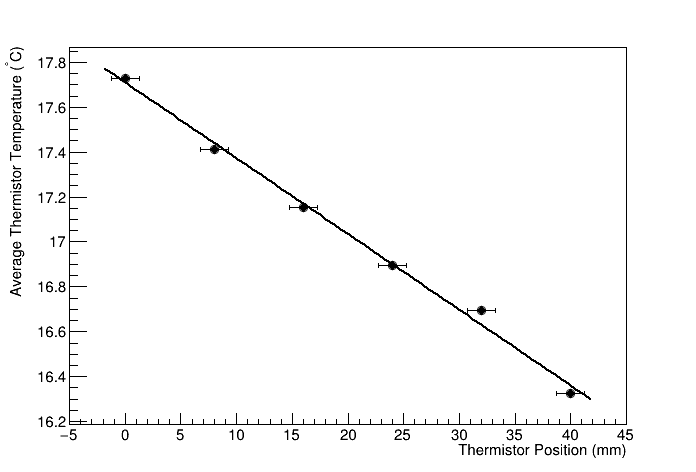

Cold flux meter fit

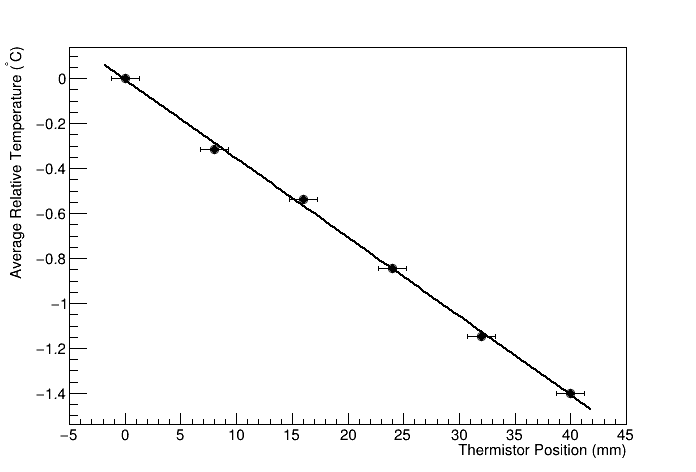

Hot flux meter difference fit

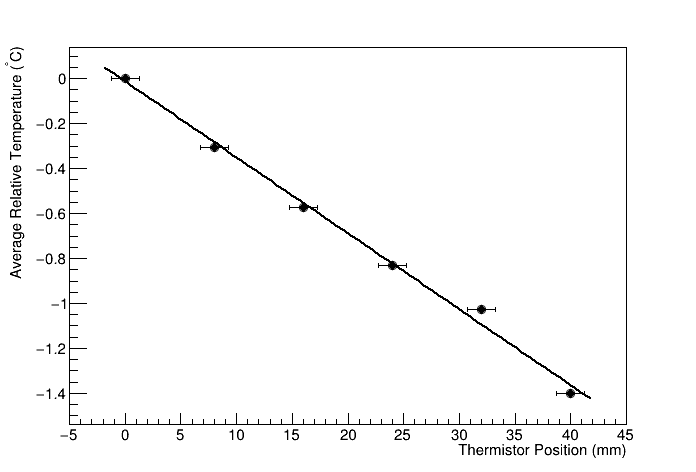

Cold flux meter difference fit
