Sample Results

In-plane thermal conductivity measurement
Experimentalist, Ryan Story
Date of measurement, 06/27/2022
Apparatus, InPlane
Material, INPL21
Sample, 1
Length (mm), 5.85, 0.05
Width (mm), 50.0, 0.05
Thickness (mm), 4.03, 0.05
Heater Voltage, 9.03
Cooler Voltage, 0
Hot Fluxmeter Channels, 105, 106, 107, 108, 109, 110
Cold Fluxmeter Channels, 125, 126, 127, 128, 129, 130
Hot Fluxmeter Temperatures (C), 23.2753, 22.9259, 22.6624, 22.3167, 21.9899, 21.695
Cold Fluxmeter Temperatures (C), 19.2896, 18.9347, 18.6118, 18.3325, 18.0821, 17.6896
Hot Fluxmeter Temperature Uncertainties (C), 0.000825416, 0.00104143, 0.00096417, 0.00078868, 0.000963106, 0.000790509
Cold Fluxmeter Temperature Uncertainties (C), 0.000851809, 0.000809892, 0.000861791, 0.000955256, 0.000709897, 0.000619735
Hot Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.350887, -0.613541, -0.962354, -1.28647, -1.58287
Cold Fluxmeter Temperatures Relative to Hottest Thermistor (C), 0, -0.355984, -0.677032, -0.955299, -1.20631, -1.60035
Hot Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00112545, 0.00113934, 0.000996156, 0.00109421, 0.00104699
Cold Fluxmeter Temperature Relative to Hottest Thermistor Uncertainties (C), 0, 0.00147067, 0.00116163, 0.00144569, 0.00115298, 0.00089952

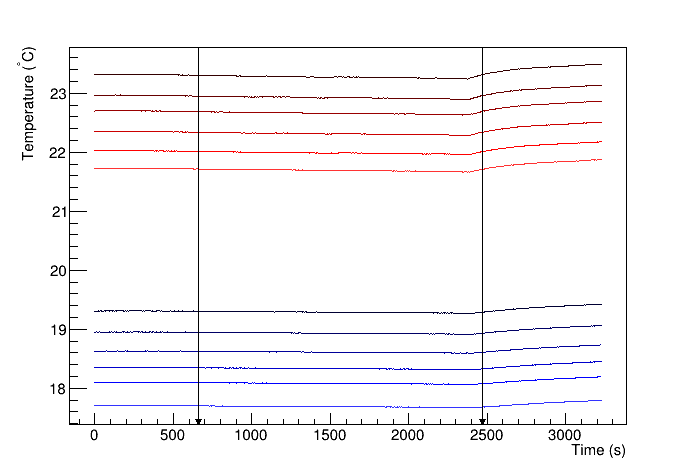

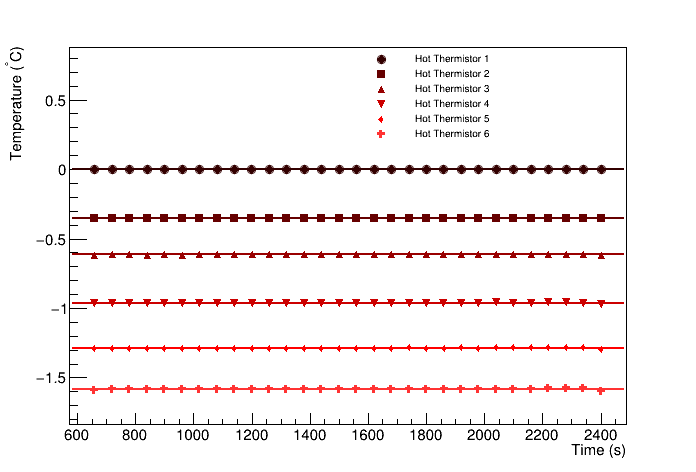

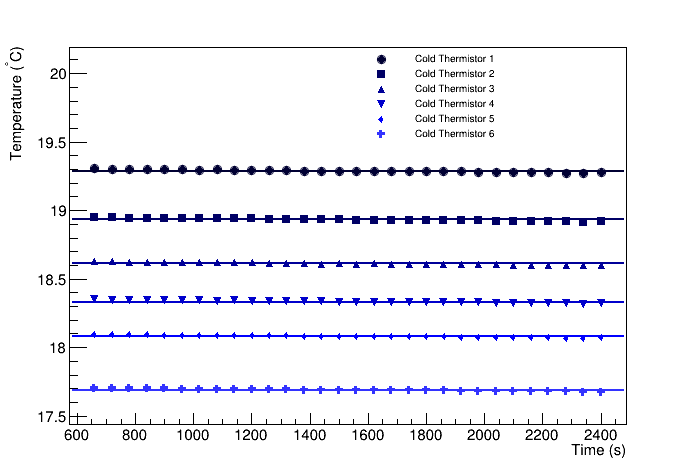

Heater Thermistors Cooler Thermistors Heater Thermistors relative to hottest thermistor

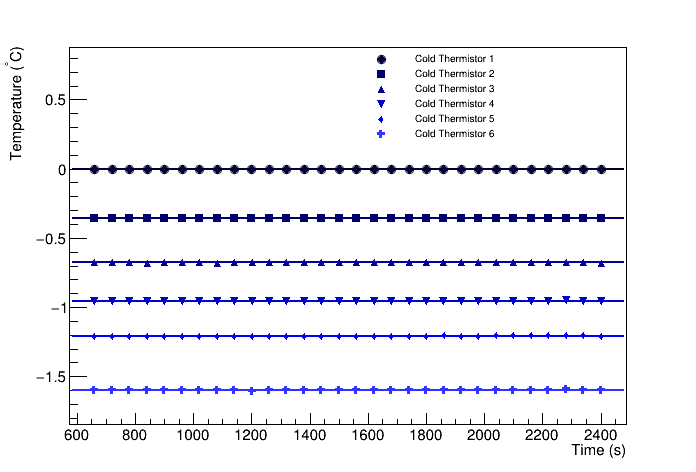

Cooler Thermistors relative to the hottest thermistor

Analyst, Souvik Das
Analysis date, 4/27/2023
Apparatus inter-thermistor distance (mm), 8
Apparatus thermistor bore diameter (mm), 1.27
Apparatus fluxmeter width (mm), 50.8
Apparatus fluxmeter thickness (mm), 6.36
Apparatus fluxmeter conductivity (W/mK), 355
Heater Biases: 0, 0, 0, 0, 0, 0
Cooler Biases: 0, 0, 0, 0, 0, 0
Hot fluxmeter flux (W/m^2), 14049.3 +/- 533.552
Cold fluxmeter flux (W/m^2), 13782.7 +/- 524.117
Heat flux through sample (W/m^2), 13916 +/- 397.012
Heat flow through sample (W), 4.49609 +/- 0.12827
Temperature at hot end of sample (C), 21.371 +/- 0.0806746
Temperature at cold end of sample (C), 19.5776 +/- 0.0376555
deltaT (C), 1.79333 +/- 0.0890299
R (K/W), 0.398864, 0.0228384
RA (Km^2/W), 8.03712e-05, 4.70942e-06

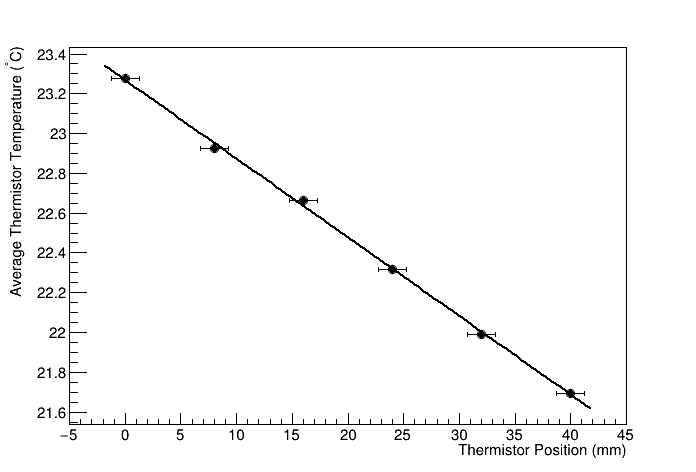

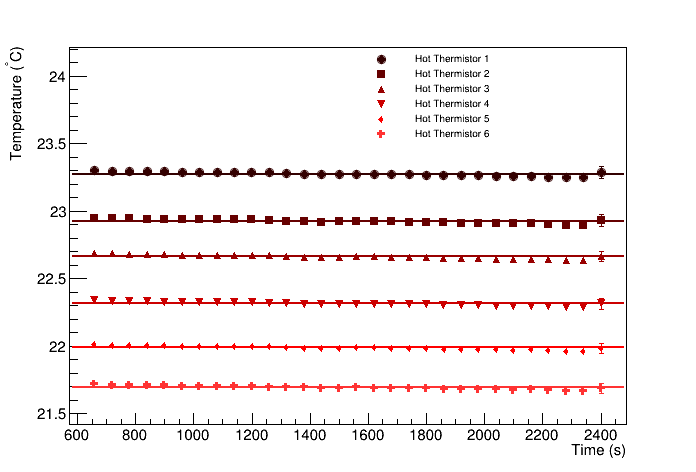

Hot flux meter fit

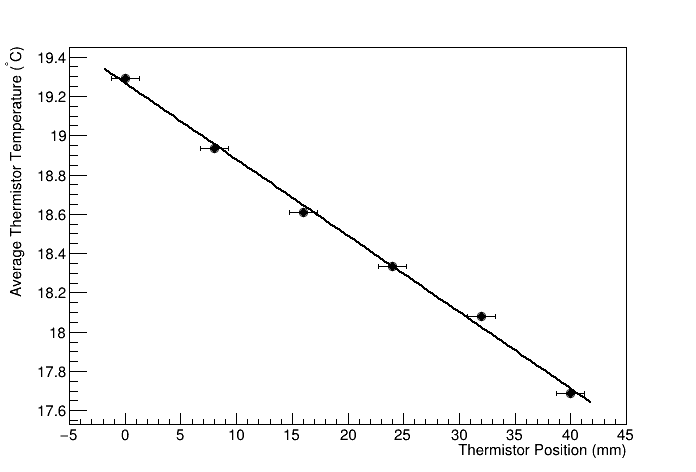

Cold flux meter fit

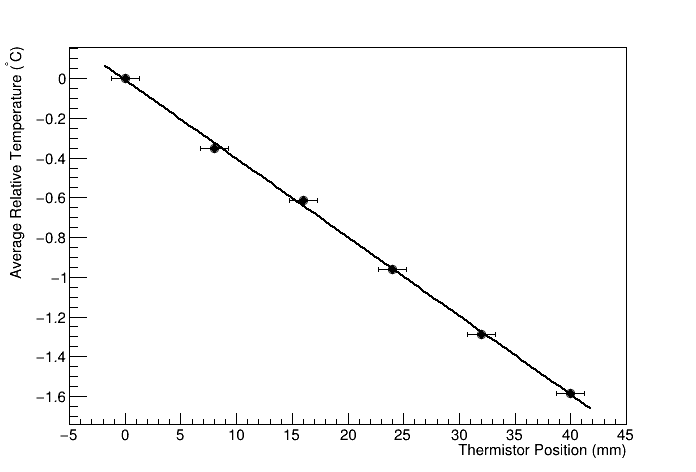

Hot flux meter difference fit

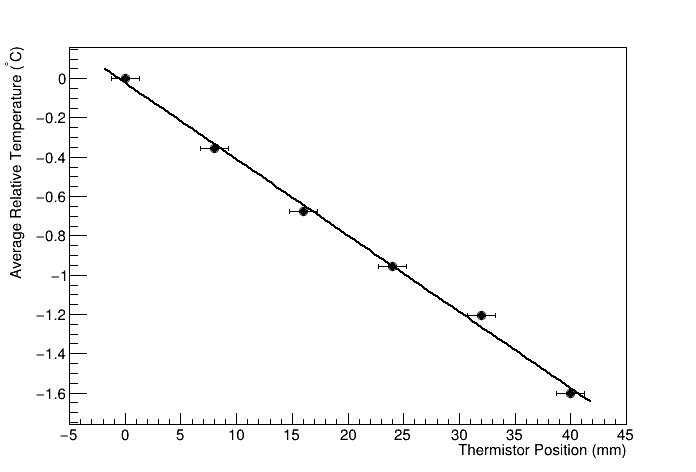

Cold flux meter difference fit
