P_2x4T_166_C-26

Production testing

Date:8/8/2007

Operator: Gino Bolla

start testing time:12:12 PM

Sensor: S_2x4T_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0XH4KFBT74B
ROC1XH4KFBT74A
ROC2KMNG2DT44D
ROC3XH4KFBT73A
ROC4XH4KFBT74D
ROC5XH4KFBT74C
ROC6XH4KFBT73D
ROC7XH4KFBT73C

This plaquette was reworked. Old results here

Inspected by Arndt Kirk on date 7/31/2007
LR_dev0.005
LL_dev0.015

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Arndt KirkAssembled at HALF-PRESSURE. no assembly problems. reworked BBM No wirebonding problems (reworked BBM - 2nd bond foot on original ROCs).

PLAQUETTE made READY for ENCAPSULATION on 7/31/2007 by Arndt Kirk

PLAQUETTE encapsulated on 7/31/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 7/31/2007 by Ozhan Koybasi

P_2x4T_166_Con 7/31/2007 1:18 PM

P_2x4T_166_C-1on 7/31/2007 1:25 PM

P_2x4T_166_C-2on 8/1/2007 1:42 PM

P_2x4T_166_C-3on 8/1/2007 1:50 PM

P_2x4T_166_C-4on 8/2/2007 12:24 PM

P_2x4T_166_C-5on 8/2/2007 12:32 PM

P_2x4T_166_C-6on 8/2/2007 12:39 PM

P_2x4T_166_C-7on 8/2/2007 12:50 PM

P_2x4T_166_C-8on 8/3/2007 12:17 PM

P_2x4T_166_C-9on 8/6/2007 9:18 AM

P_2x4T_166_C-10on 8/6/2007 9:43 AM

P_2x4T_166_C-11on 8/6/2007 10:27 AM

P_2x4T_166_C-11on 8/6/2007 10:27 AM

P_2x4T_166_C-12on 8/6/2007 12:56 PM

P_2x4T_166_C-13on 8/6/2007 1:16 PM

P_2x4T_166_C-13on 8/6/2007 1:16 PM

PLAQUETTE TESTED on 2007-08-06 by Gino Bolla

[IMAGE] of

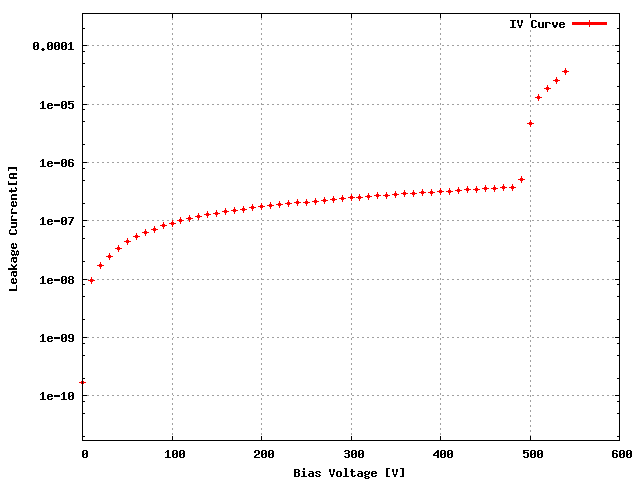

IV_XML-File
Maximum Voltage 450 V
[IMAGE] of
LASER_XML-File
Depletion Voltage 44 V
Operational Voltage 84 V

ROCROC0ROC1ROC2ROC3ROC4ROC5ROC6ROC7
Ibias_DAC158160154146162156158148
Vana144124127132130145133125
Cal_Del8381756893818082
Vthrs_Comp8382808482767575
Unbumped11020000
Dead0000331241
Noisy00010000
Undecoded00000000
Total BAD1103331241

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
[IMAGE] of I_BIAS_DAC_XML-File
[IMAGE] of VANA_XML-File
[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File
[IMAGE] of LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe11013011514513095100135
Vsf140135135140135145140140
VoffsetOp9075608580755565
VIbias_PH1001051051009510010095

Depletion Voltage is -46 and suggested operational voltage is -86
Ibias_DAC, Ibias_DAC Data 158 158 154 146 160 156 156 148
Vana, VanaData 144 124 127 132 130 146 133 125
CalDelData and plots8381756892818082
VthrCompData and plots8382808482777575
TestDdata ,TestD Plots101634176955251
LightData ,Light Plots12020000
Pass/Fail TestD GOOD GOOD GOOD GOOD BAD BAD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

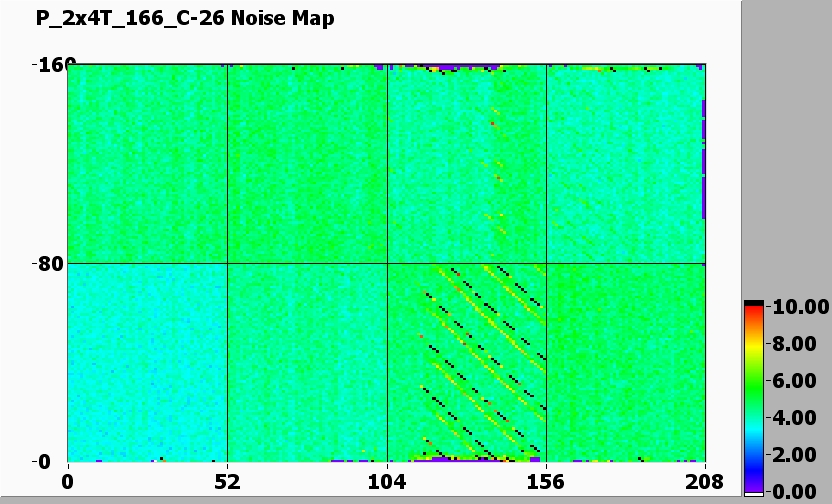

Noise MAP at VMAX

[IMAGE] of

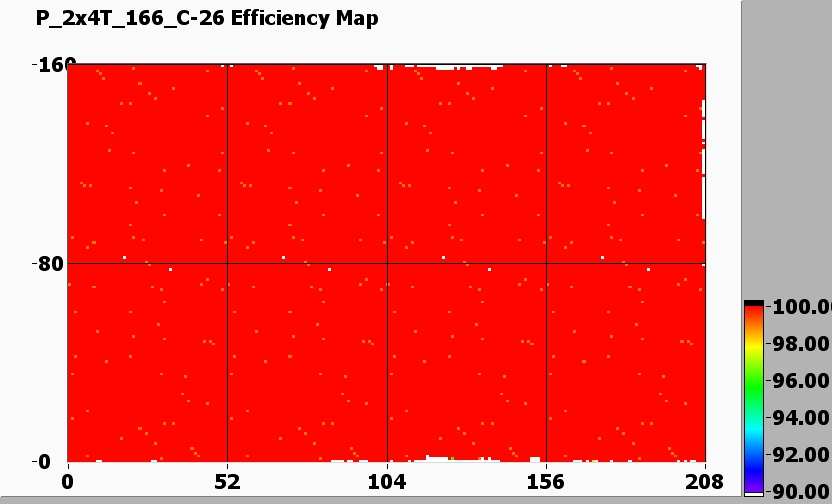

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe10515013515015095100135
Vsf140140140140140145140140
VoffsetOp9580659080755565
VIbias_PH10010010010010510010095

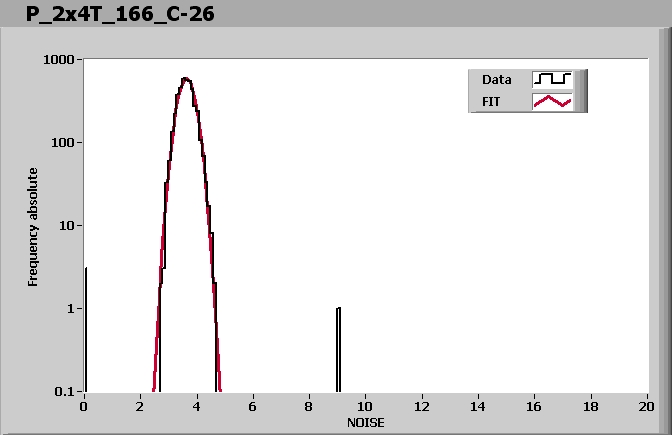

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 3.632874

SIGMA = 0.281328

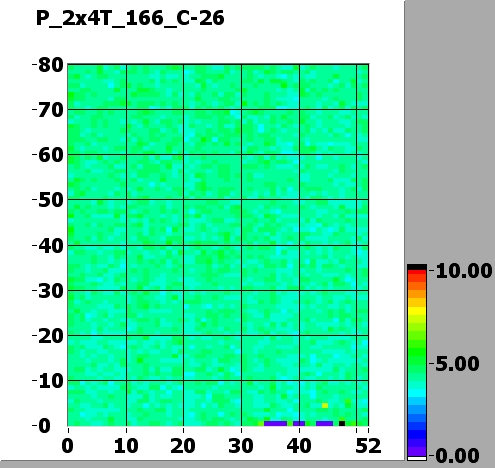

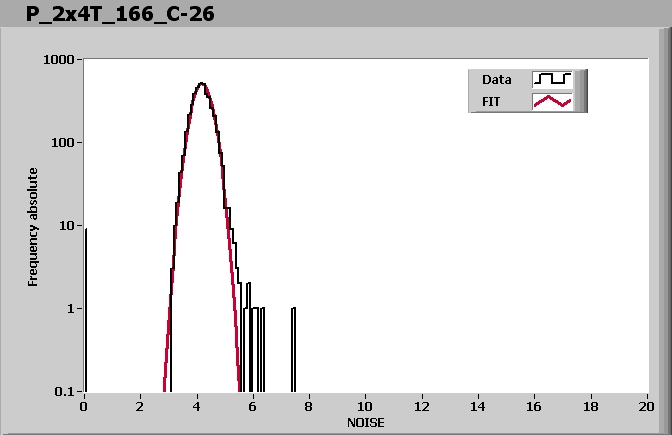

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.180725

SIGMA = 0.325722

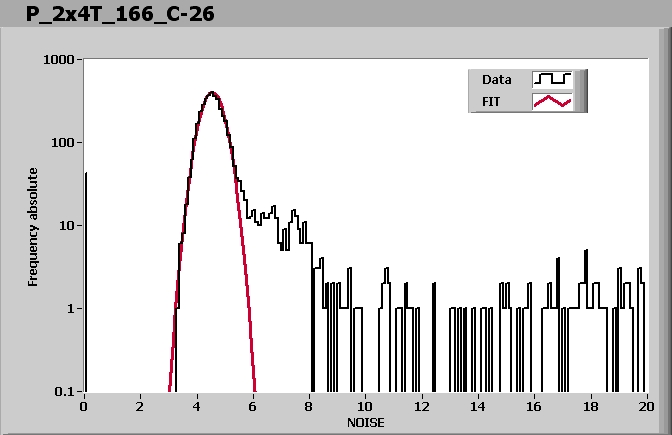

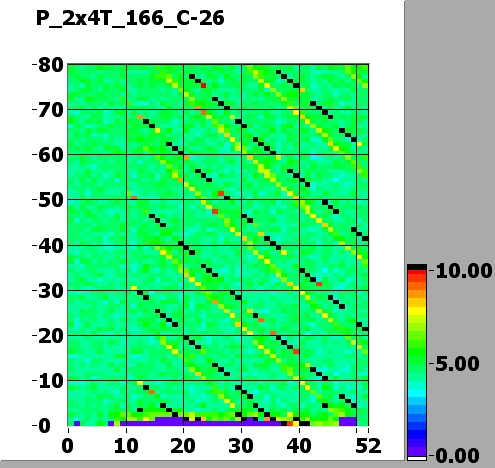

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.542963

SIGMA = 0.374439

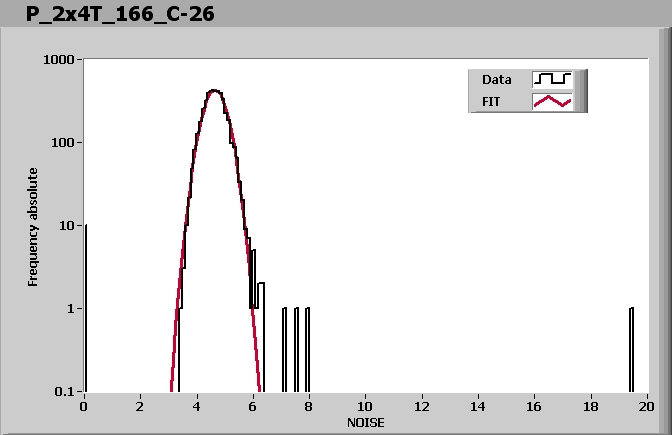

ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.643325

SIGMA = 0.384719

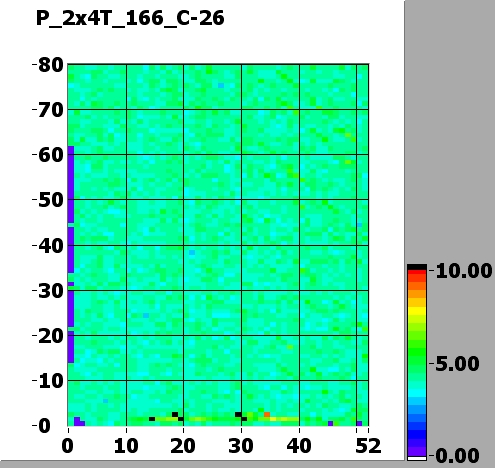

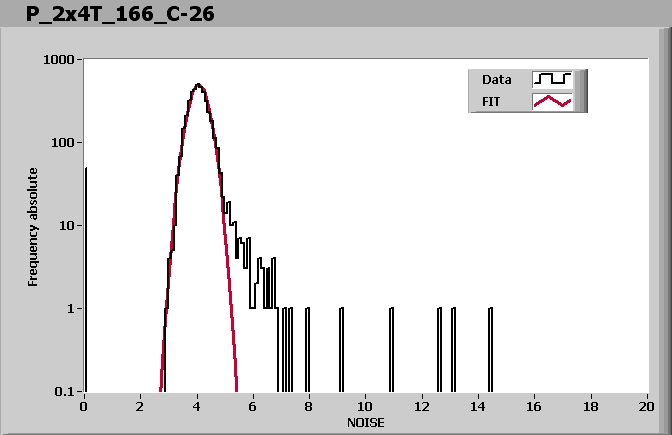

ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 4.062335

SIGMA = 0.326499

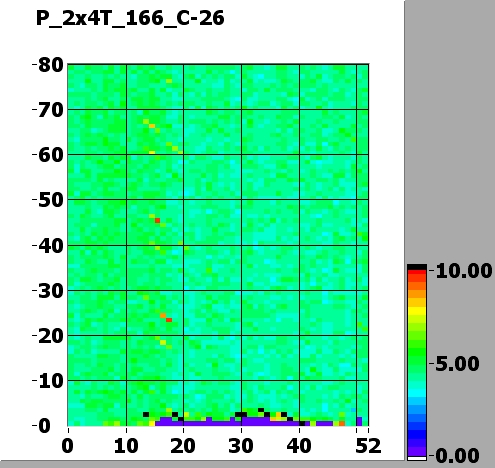

ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.331782

SIGMA = 0.404554

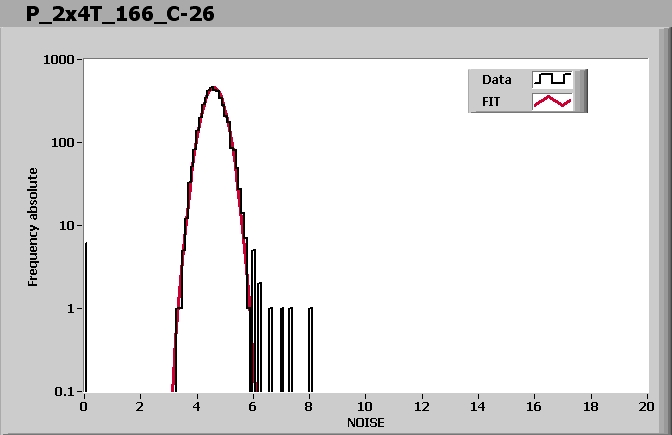

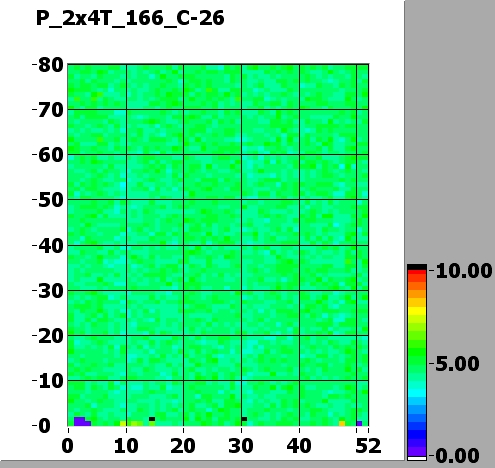

ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 4.603000

SIGMA = 0.362209

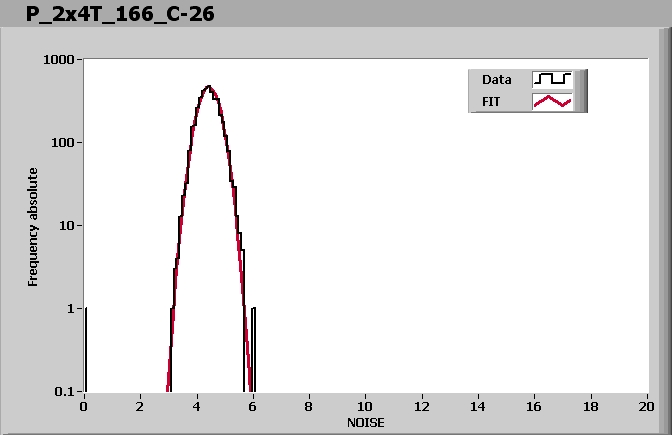

ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 4.422186

SIGMA = 0.357687

Comment (if any):

This Device have been tested 26Times prior to this one and here are the links to the previous tests:

P_2x4T_166_C-1.html,

P_2x4T_166_C-10.html,

P_2x4T_166_C-11.html,

P_2x4T_166_C-12.html,

P_2x4T_166_C-13.html,

P_2x4T_166_C-14.html,

P_2x4T_166_C-15.html,

P_2x4T_166_C-16.html,

P_2x4T_166_C-17.html,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

,

End testing time: 12:40 PM
