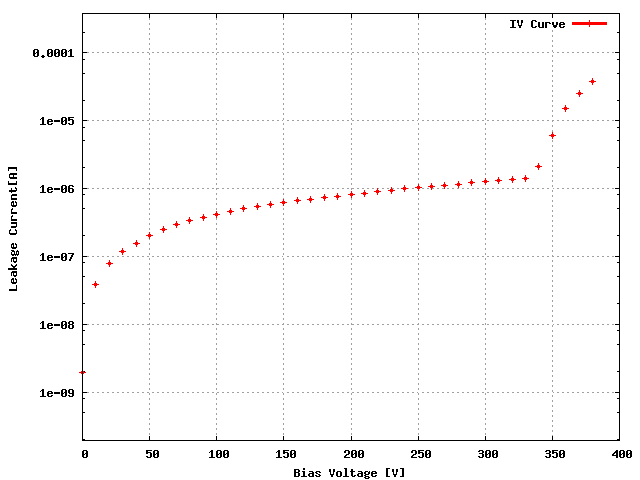

Sensor: S_2x4T_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XH4KFBT | 74B |
| ROC1 | XH4KFBT | 74A |
| ROC2 | KMNG2DT | 44D |
| ROC3 | XH4KFBT | 73A |
| ROC4 | XH4KFBT | 74D |
| ROC5 | XH4KFBT | 74C |
| ROC6 | XH4KFBT | 73D |
| ROC7 | XH4KFBT | 73C |
This plaquette was reworked. Old results here
Inspected by Arndt Kirk on date 7/31/2007
| LR_dev | 0.005 |
| LL_dev | 0.015 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Assembled at HALF-PRESSURE. no assembly problems. reworked BBM No wirebonding problems (reworked BBM - 2nd bond foot on original ROCs). |
PLAQUETTE made READY for ENCAPSULATION on 7/31/2007 by Arndt Kirk
PLAQUETTE encapsulated on 7/31/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 7/31/2007 by Ozhan Koybasi
P_2x4T_166_Con 7/31/2007 1:18 PM
P_2x4T_166_C-1on 7/31/2007 1:25 PM
P_2x4T_166_C-2on 8/1/2007 1:42 PM
P_2x4T_166_C-3on 8/1/2007 1:50 PM
P_2x4T_166_C-4on 8/2/2007 12:24 PM
P_2x4T_166_C-5on 8/2/2007 12:32 PM
P_2x4T_166_C-6on 8/2/2007 12:39 PM
| Ibias_DAC, Ibias_DAC Data | 158 | 160 | 154 | 146 | 162 | 156 | 158 | 148 |
| Vana, VanaData | 144 | 124 | 127 | 132 | 130 | 146 | 133 | 125 |
| CalDelData and plots | 83 | 81 | 75 | 68 | 93 | 81 | 81 | 82 |
| VthrCompData and plots | 83 | 82 | 80 | 84 | 82 | 76 | 76 | 75 |
