P_2x4T_166_C-13

Production testing

Date:8/6/2007

Operator: Gino Bolla

start testing time:1:16 PM

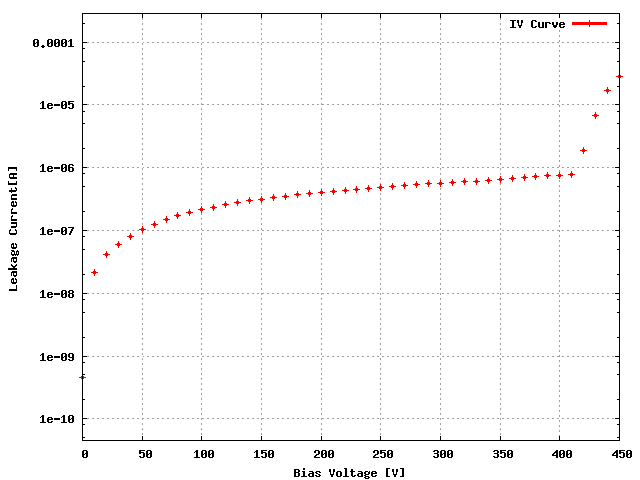

Sensor: S_2x4T_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0XH4KFBT74B
ROC1XH4KFBT74A
ROC2KMNG2DT44D
ROC3XH4KFBT73A
ROC4XH4KFBT74D
ROC5XH4KFBT74C
ROC6XH4KFBT73D
ROC7XH4KFBT73C

This plaquette was reworked. Old results here

Inspected by Arndt Kirk on date 7/31/2007
LR_dev0.005
LL_dev0.015

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Arndt KirkAssembled at HALF-PRESSURE. no assembly problems. reworked BBM No wirebonding problems (reworked BBM - 2nd bond foot on original ROCs).

PLAQUETTE made READY for ENCAPSULATION on 7/31/2007 by Arndt Kirk

PLAQUETTE encapsulated on 7/31/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 7/31/2007 by Ozhan Koybasi

P_2x4T_166_Con 7/31/2007 1:18 PM

P_2x4T_166_C-1on 7/31/2007 1:25 PM

P_2x4T_166_C-2on 8/1/2007 1:42 PM

P_2x4T_166_C-3on 8/1/2007 1:50 PM

P_2x4T_166_C-4on 8/2/2007 12:24 PM

P_2x4T_166_C-5on 8/2/2007 12:32 PM

P_2x4T_166_C-6on 8/2/2007 12:39 PM

P_2x4T_166_C-7on 8/2/2007 12:50 PM

P_2x4T_166_C-8on 8/3/2007 12:17 PM

P_2x4T_166_C-9on 8/6/2007 9:18 AM

P_2x4T_166_C-10on 8/6/2007 9:43 AM

P_2x4T_166_C-11on 8/6/2007 10:27 AM

P_2x4T_166_C-11on 8/6/2007 10:27 AM

P_2x4T_166_C-12on 8/6/2007 12:56 PM

P_2x4T_166_C-13on 8/6/2007 1:16 PM

Depletion Voltage is -44 and suggested operational voltage is -84
Ibias_DAC, Ibias_DAC Data 158 160 154 146 162 156 158 148
Vana, VanaData 144 124 127 132 130 145 133 125
CalDelData and plots8381756893818082
VthrCompData and plots8382808482767575
TestDdata ,TestD Plots21024824171
LightData ,Light Plots11020000
Pass/Fail TestD GOOD GOOD GOOD GOOD BAD GOOD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

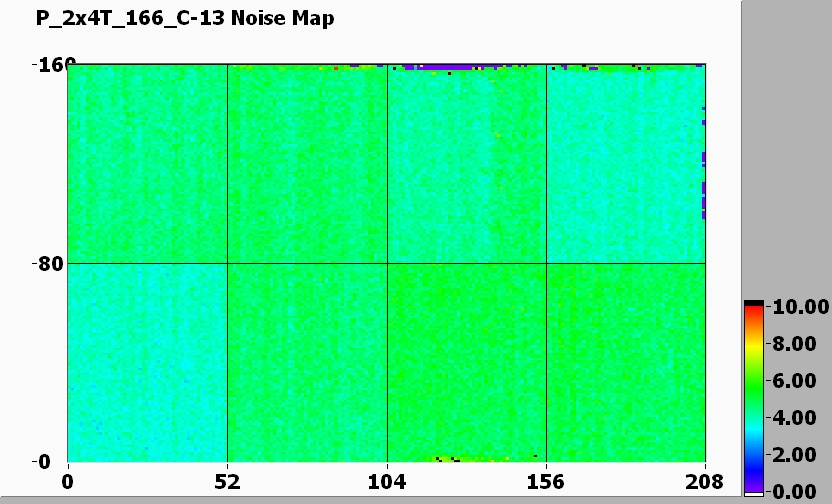

Noise MAP at VMAX

[IMAGE] of

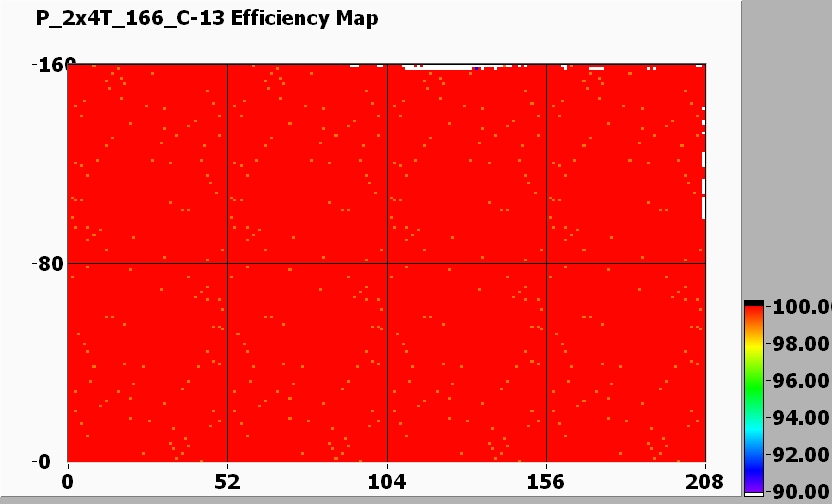

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe11013011514513095100135
Vsf140135135140135145140140
VoffsetOp9075608580755565
VIbias_PH1001051051009510010095

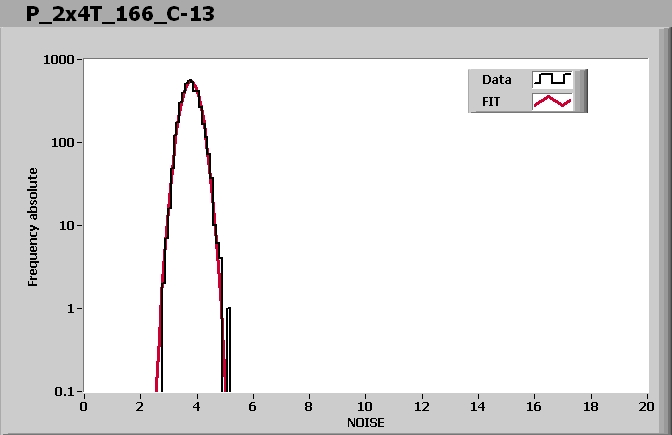

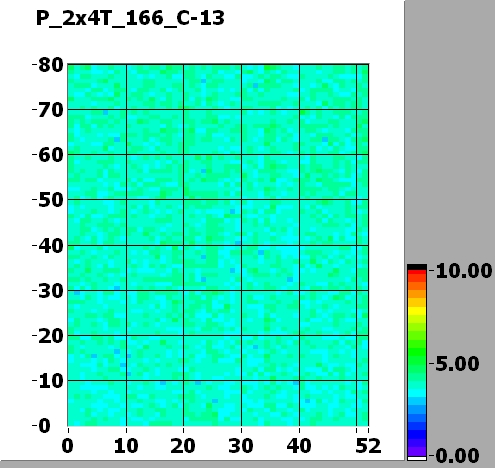

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 3.785574

SIGMA = 0.300342

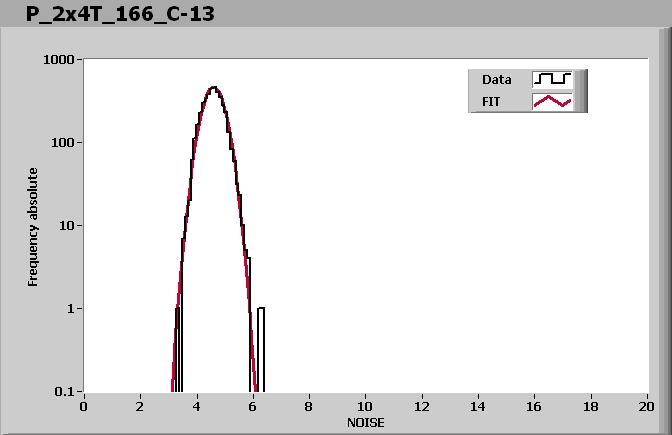

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.593513

SIGMA = 0.362675

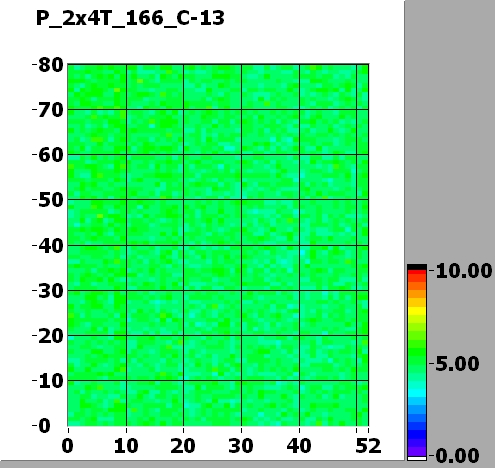

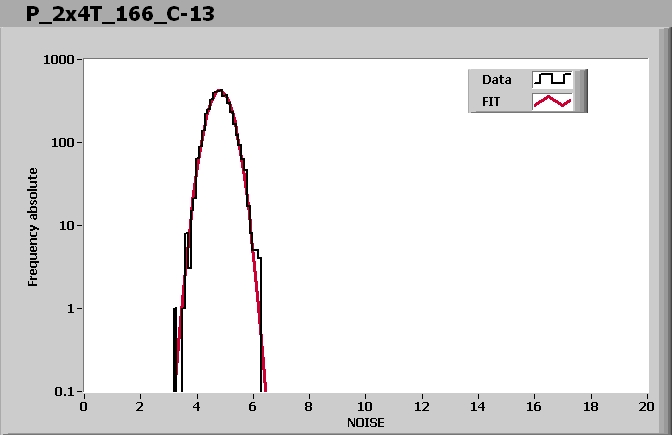

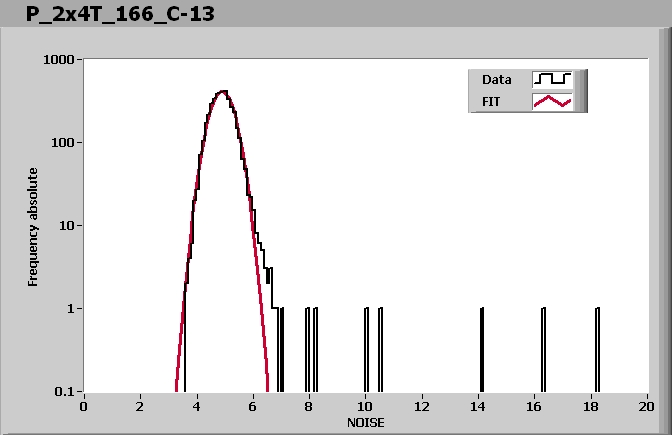

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.895899

SIGMA = 0.399142
ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.823501

SIGMA = 0.392314

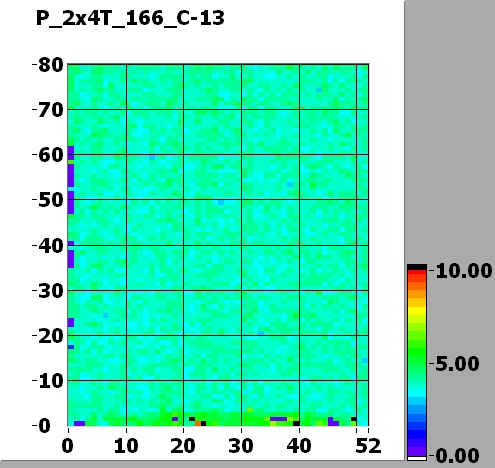

ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 3.901833

SIGMA = 0.306143

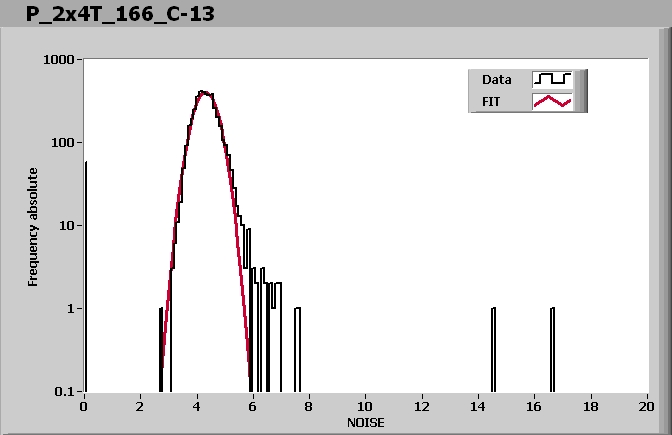

ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 4.308059

SIGMA = 0.394397

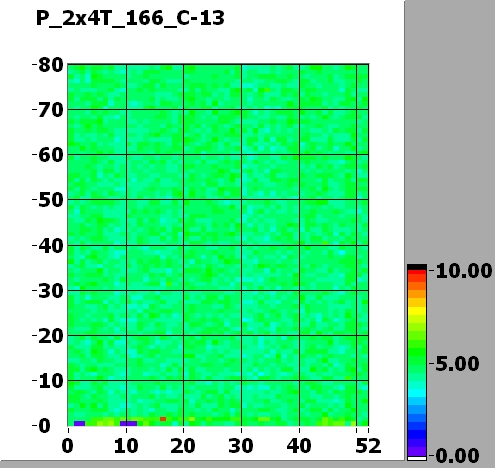

ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 4.600505

SIGMA = 0.385927
ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 4.421979

SIGMA = 0.370707

Comment (if any):

This Device have been tested 13Times prior to this one and here are the links to the previous tests:

P_2x4T_166_C-1.html,

P_2x4T_166_C-10.html,

P_2x4T_166_C-11.html,

P_2x4T_166_C-12.html,

P_2x4T_166_C-2.html,

P_2x4T_166_C-3.html,

P_2x4T_166_C-4.html,

P_2x4T_166_C-5.html,

P_2x4T_166_C-6.html,

,

,

,

,

End testing time: 1:44 PM
