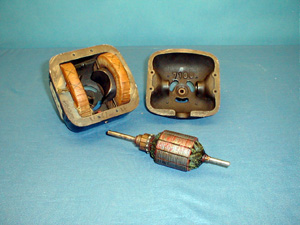

Demos: 6B-12 Dissectible Electric Motor

An electric motor can be disassembled and shown to the class.

Directions: Have the lec-demo technician show you how to disassemble the motor. Use a projection system for better visibility.

Suggestions for Presentation: No particular suggestions, other than being careful to point out the mechanical and electrical counterparts of the real motor to representative text diagrams.

Applications: Commercial Electric Motors
