P_2x4B_172

P_2x4B_172_C

Parts committed by Bolla Gino on date 7/26/2007

Part	ID
BBM	BBM_172-2x4B
VHDI	2x4_421

ROC ROC wafer Label

ROC0 XH4KFBT 49D

ROC1 XH4KFBT 40A

ROC2 XH4KFBT 40B

ROC3 XH4KFBT 41A

ROC4 XH4KFBT 41B

ROC5 KMNG2DT 56A

ROC6 XH4KFBT 42B

ROC7 XH4KFBT 43A

ROC	ROC wafer	Label
ROC0	XH4KFBT	49D
ROC1	XH4KFBT	40A
ROC2	XH4KFBT	40B
ROC3	XH4KFBT	41A
ROC4	XH4KFBT	41B
ROC5	KMNG2DT	56A
ROC6	XH4KFBT	42B
ROC7	XH4KFBT	43A

This plaquette was reworked. Old results here

Inspected by Arndt Kirk on date 7/30/2007

Picture Comment

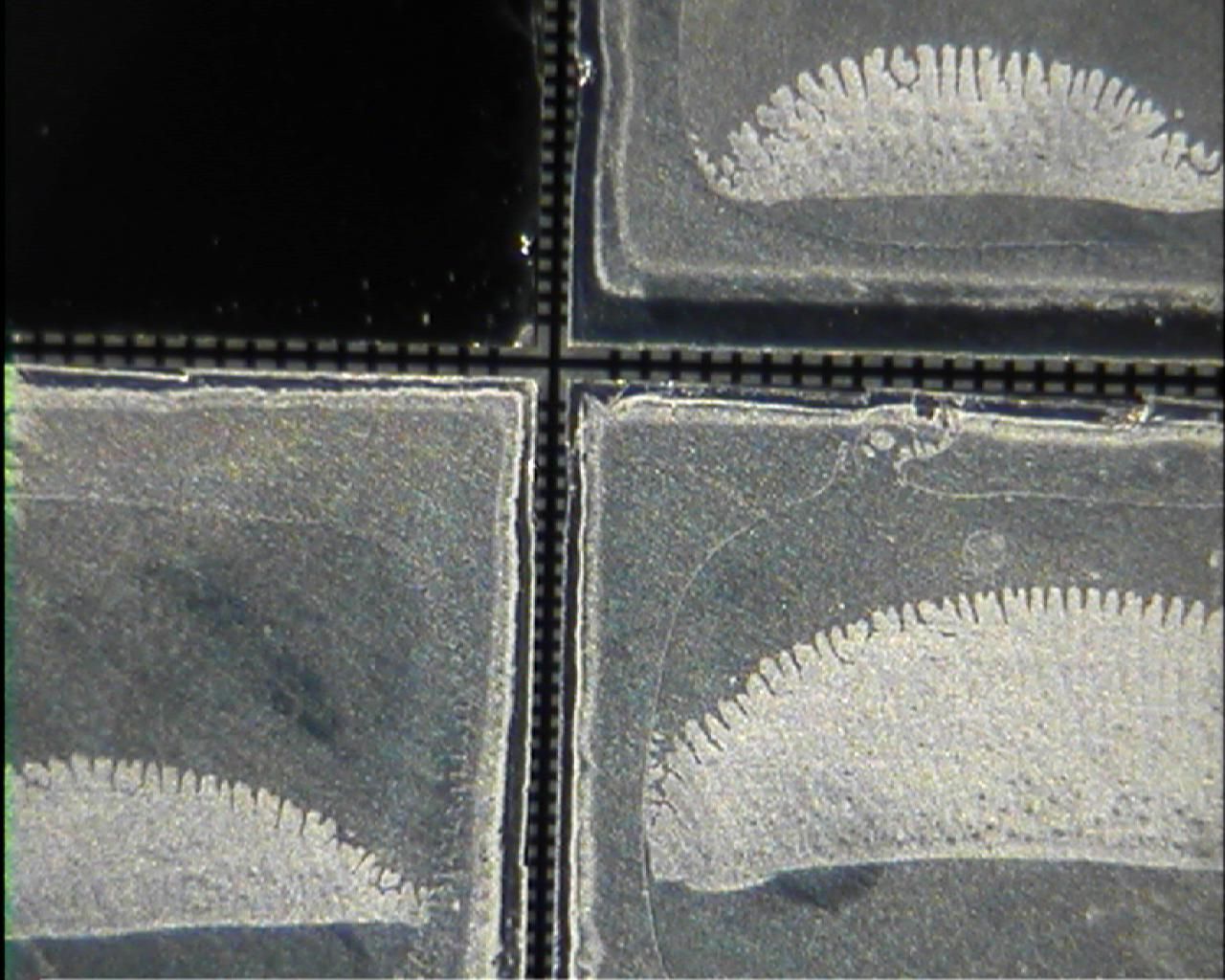

Picture of substance on backside of ROC0 (representative of substance on backsides of all original ROCs) in the reworked BMM. The substance is not removed by gentle swabbing with alcohol.

Picture	Comment
	Picture of substance on backside of ROC0 (representative of substance on backsides of all original ROCs) in the reworked BMM. The substance is not removed by gentle swabbing with alcohol.

Inspected by Arndt Kirk on date 7/30/2007

Picture Comment

Another picture of substance on the backsides of ROCs at the corners of ROCs 1,2,5,6. Note that substance is absent from the backside of the new ROC5 in the reworked BMM.

Picture	Comment
	Another picture of substance on the backsides of ROCs at the corners of ROCs 1,2,5,6. Note that substance is absent from the backside of the new ROC5 in the reworked BMM.

Inspected by Arndt Kirk on date 7/31/2007

LR_dev 0.100

LL_dev 0.082

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Arndt Kirk

Assembled reworked BBM at HALF-PRESSURE. No assembly problems. No wirebonding problems (reworked BBM - 2nd bond foot on original ROCs).

PLAQUETTE made READY for ENCAPSULATION on 7/31/2007 by Arndt Kirk

PLAQUETTE encapsulated on 7/31/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 7/31/2007 by Ozhan Koybasi

P_2x4B_172_Con 7/31/2007 1:02 PM

P_2x4B_172_C-1on 7/31/2007 1:12 PM

P_2x4B_172_C-2on 8/2/2007 1:06 PM

P_2x4B_172_C-3on 8/3/2007 11:45 AM

P_2x4B_172_C-4on 8/6/2007 11:09 AM

P_2x4B_172_C-5on 8/6/2007 11:23 AM

P_2x4B_172_C-6on 8/6/2007 12:43 PM

PLAQUETTE TESTED on 2007-08-03 by Isaac Childres

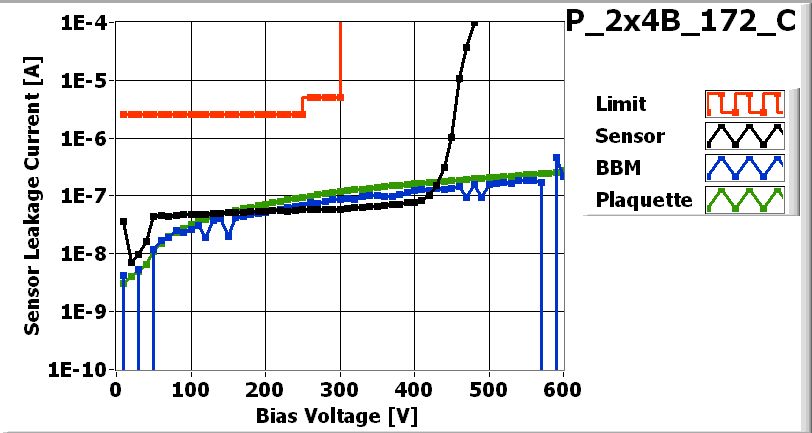

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	176	146	148	144	154	146	160	138
Vana	148	124	124	127	130	131	141	127
Cal_Del	78	87	78	87	79	82	70	87
Vthrs_Comp	84	74	72	74	75	85	76	70
Unbumped	9	33	2	0	0	1	0	1
Dead	0	6	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	9	39	2	0	0	1	0	1

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

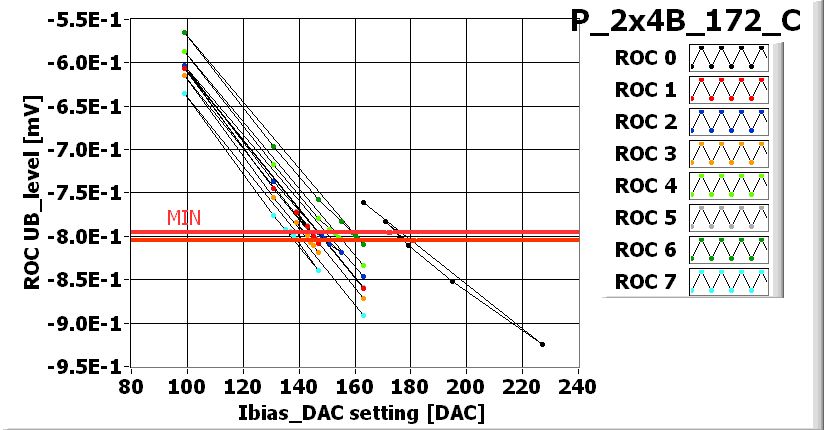

	I_BIAS_DAC_XML-File

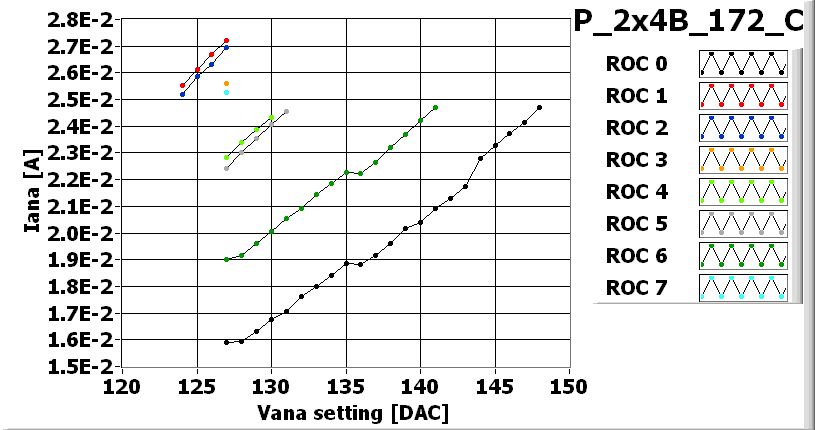

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File

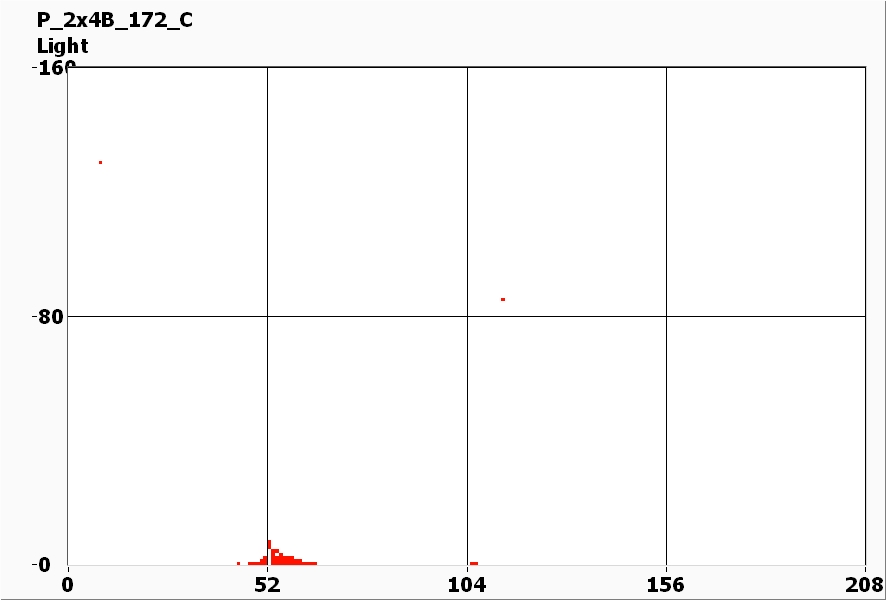

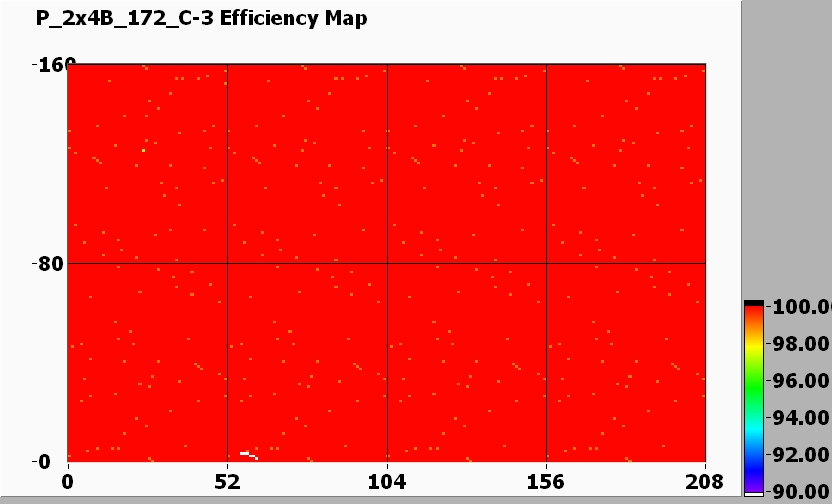

	LIGHT_XML-File
