Sensor: S_2x4B_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XH4KFBT	49D
ROC1	XH4KFBT	40A
ROC2	XH4KFBT	40B
ROC3	XH4KFBT	41A
ROC4	XH4KFBT	41B
ROC5	XH4KFBT	42A
ROC6	XH4KFBT	42B
ROC7	XH4KFBT	43A

This plaquette was reworked. Old results here

Inspected by Arndt Kirk on date 7/30/2007

Picture	Comment
	Picture of substance on backside of ROC0 (representative of substance on backsides of all original ROCs) in the reworked BMM. The substance is not removed by gentle swabbing with alcohol.

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	176	146	148	144	154	146	160	138
Vana, VanaData	148	124	124	127	130	131	141	127
CalDelData and plots	78	87	78	87	79	82	70	87
VthrCompData and plots	84	74	72	74	75	85	76	70
TestDdata ,TestD Plots	5	27	1	0	0	1	0	1
LightData ,Light Plots	9	33	2	0	0	1	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

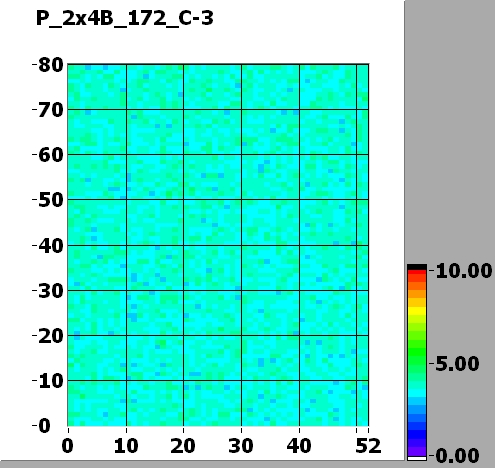

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 3.615362 SIGMA = 0.272006

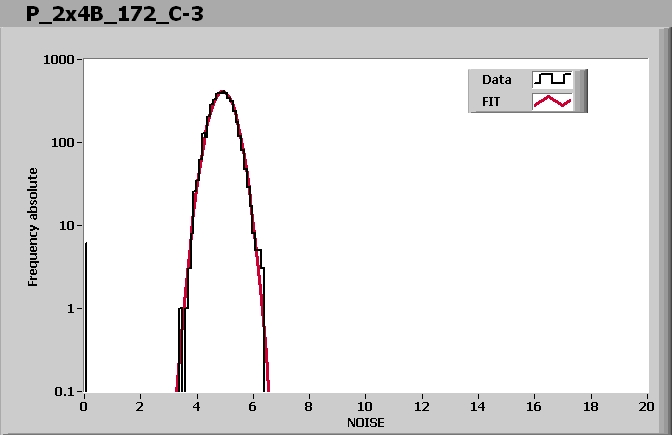

ROC1 NOISE			MEAN = 4.921821 SIGMA = 0.400229

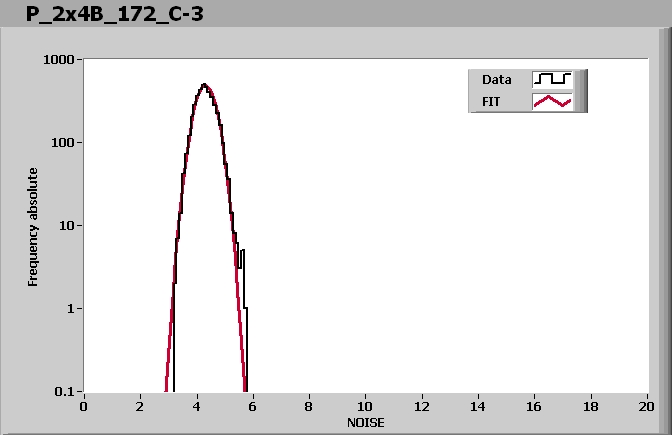

ROC2 NOISE			MEAN = 4.300598 SIGMA = 0.339690
ROC3 NOISE			MEAN = 4.806053 SIGMA = 0.379948

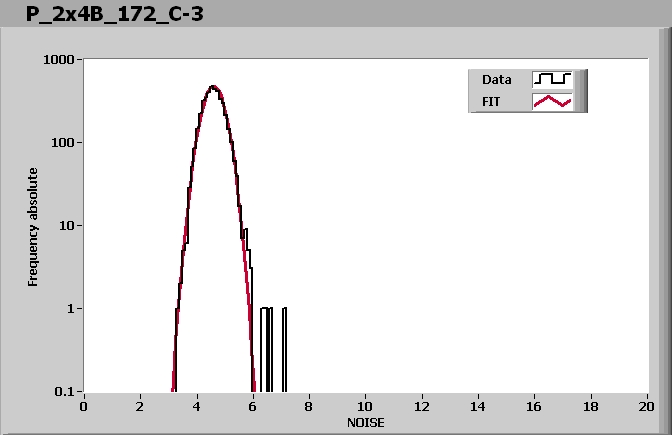

ROC4 NOISE			MEAN = 4.592098 SIGMA = 0.356413
ROC5 NOISE			MEAN = 4.724914 SIGMA = 0.371041
ROC6 NOISE			MEAN = 4.814263 SIGMA = 0.407656
ROC7 NOISE			MEAN = 5.118281 SIGMA = 0.433542

Comment (if any): Noise test ran twice for some reason, but otherwise A-okay!

P_2x4B_172_C-1.html,

P_2x4B_172_C-2.html,

P_2x4B_172_C.html,

End testing time: 12:13 PM
