Sensor: S_2x4B_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XH4KFBT	49D
ROC1	XH4KFBT	40A
ROC2	XH4KFBT	40B
ROC3	XH4KFBT	41A
ROC4	XH4KFBT	41B
ROC5	KMNG2DT	56A
ROC6	XH4KFBT	42B
ROC7	XH4KFBT	43A

This plaquette was reworked. Old results here

Inspected by Arndt Kirk on date 7/30/2007

Picture	Comment
	Picture of substance on backside of ROC0 (representative of substance on backsides of all original ROCs) in the reworked BMM. The substance is not removed by gentle swabbing with alcohol.

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	176	144	148	142	154	144	160	138
Vana, VanaData	148	124	124	127	130	131	140	127
CalDelData and plots	77	87	78	87	79	81	70	87
VthrCompData and plots	84	74	72	74	75	85	75	70
TestDdata ,TestD Plots	11	28	1	0	0	1	0	1
LightData ,Light Plots	9	33	2	0	0	1	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

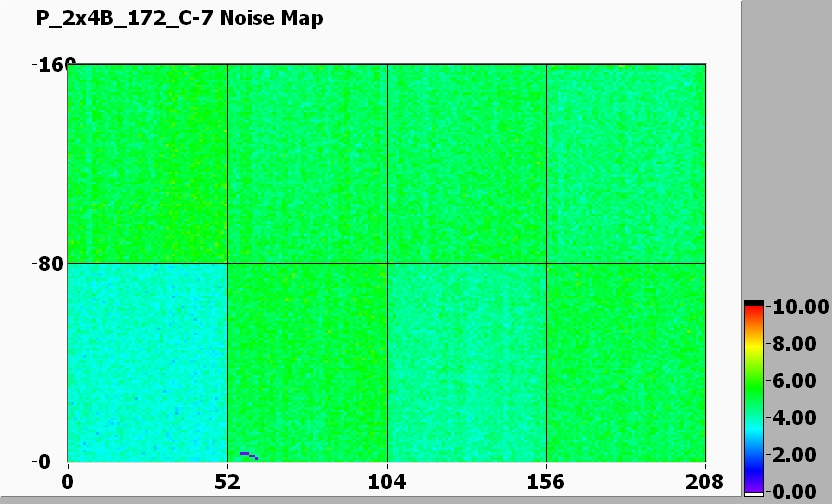

Noise MAP at VMAX

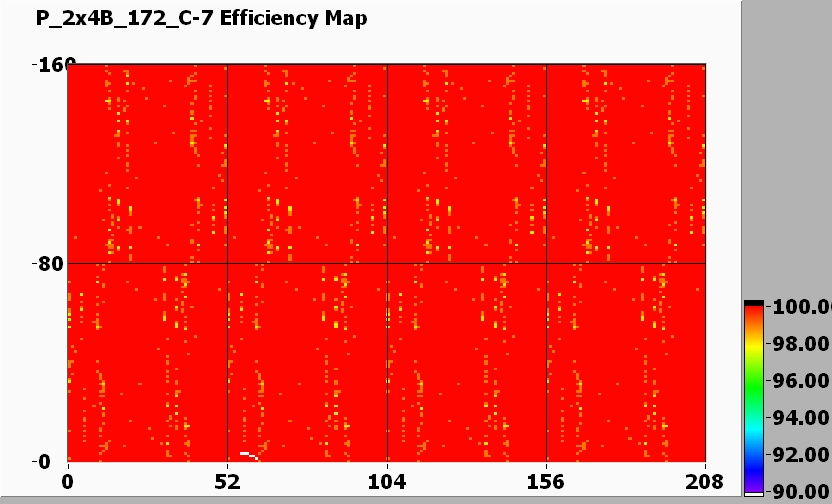

Efficiency MAP

EXTRA DACs for NOISE

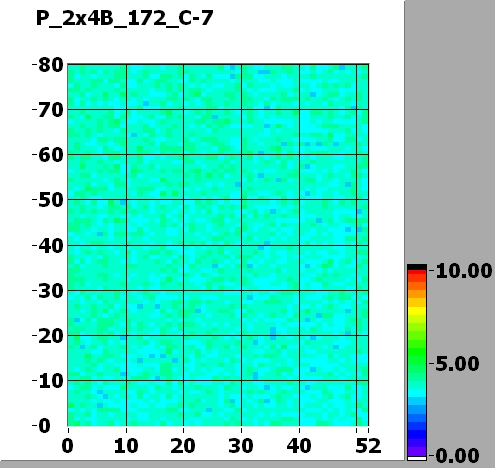

ROC0 NOISE			MEAN = 3.701550 SIGMA = 0.287513

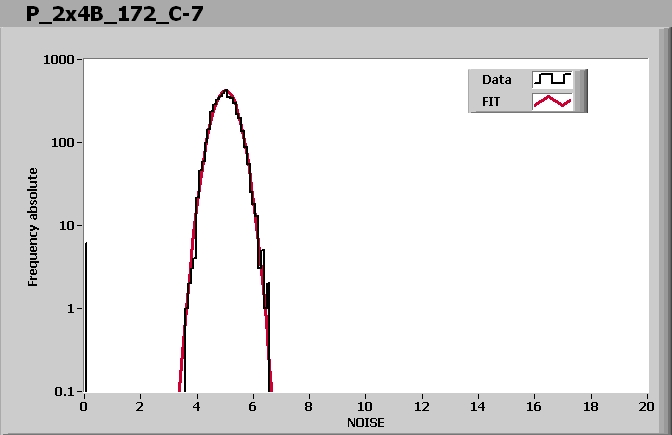

ROC1 NOISE			MEAN = 5.015978 SIGMA = 0.401878

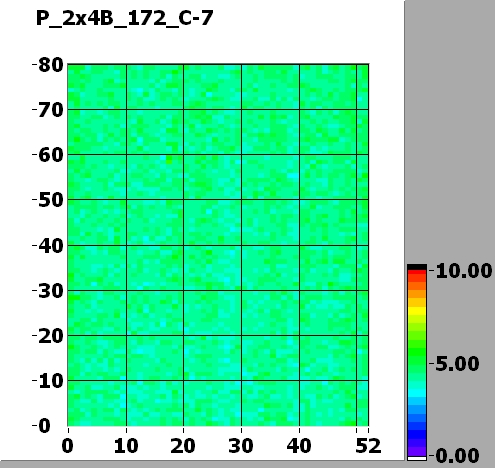

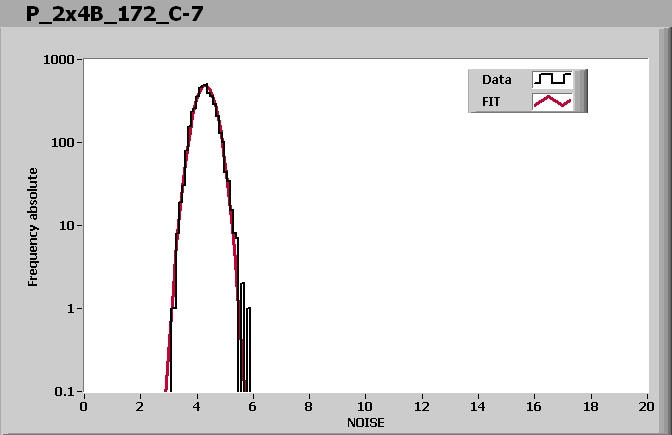

ROC2 NOISE			MEAN = 4.293217 SIGMA = 0.338836
ROC3 NOISE			MEAN = 4.903702 SIGMA = 0.382897

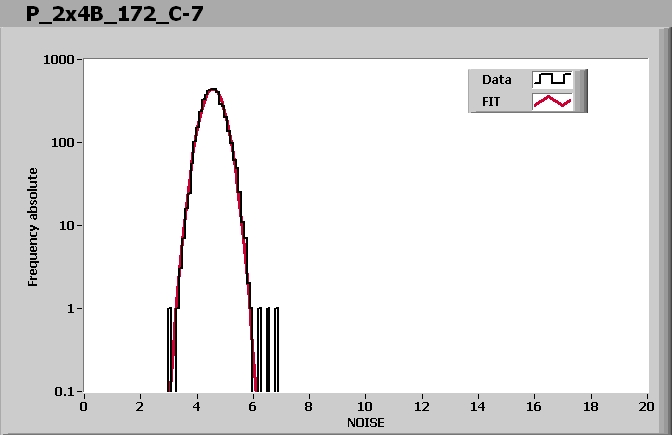

ROC4 NOISE			MEAN = 4.571012 SIGMA = 0.374032

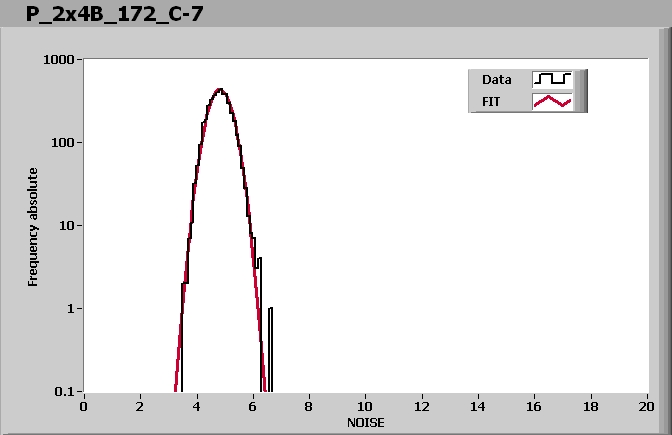

ROC5 NOISE			MEAN = 4.825098 SIGMA = 0.385590
ROC6 NOISE			MEAN = 4.799179 SIGMA = 0.401600

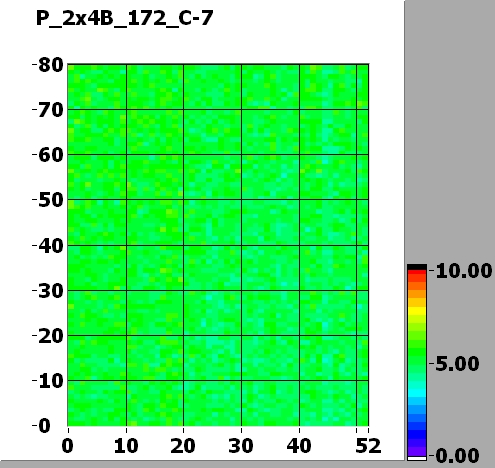

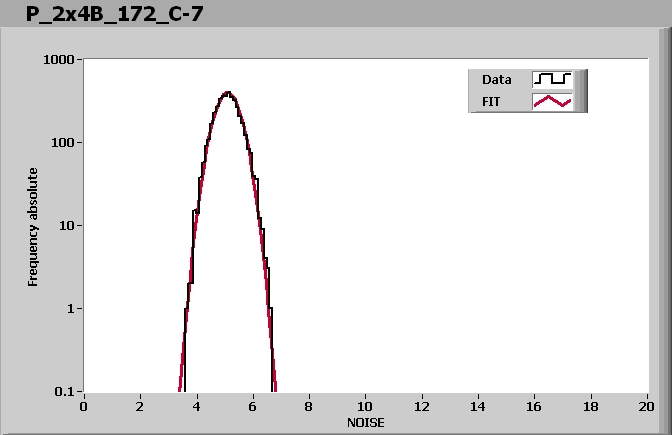

ROC7 NOISE			MEAN = 5.091784 SIGMA = 0.418210

Comment (if any):

P_2x4B_172_C-1.html,

P_2x4B_172_C-2.html,

P_2x4B_172_C-3.html,

P_2x4B_172_C-4.html,

P_2x4B_172_C-5.html,

P_2x4B_172_C-6.html,

P_2x4B_172_C.html,

End testing time: 3:06 PM
