Sensor: S_2x4B_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XH4KFBT	49D
ROC1	XH4KFBT	40A
ROC2	XH4KFBT	40B
ROC3	XH4KFBT	41A
ROC4	XH4KFBT	41B
ROC5	KMNG2DT	56A
ROC6	XH4KFBT	42B
ROC7	XH4KFBT	43A

This plaquette was reworked. Old results here

Inspected by Arndt Kirk on date 7/30/2007

Picture	Comment
	Picture of substance on backside of ROC0 (representative of substance on backsides of all original ROCs) in the reworked BMM. The substance is not removed by gentle swabbing with alcohol.

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	178	146	150	144	156	148	162	140
Vana, VanaData	147	123	124	126	130	131	140	127
CalDelData and plots	77	87	78	87	79	81	70	87
VthrCompData and plots	83	74	72	73	75	85	75	71
TestDdata ,TestD Plots	11	27	1	10	34	1	0	1
LightData ,Light Plots	9	36	3	0	0	1	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

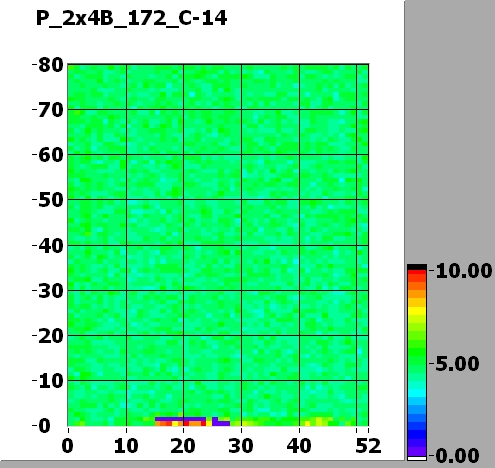

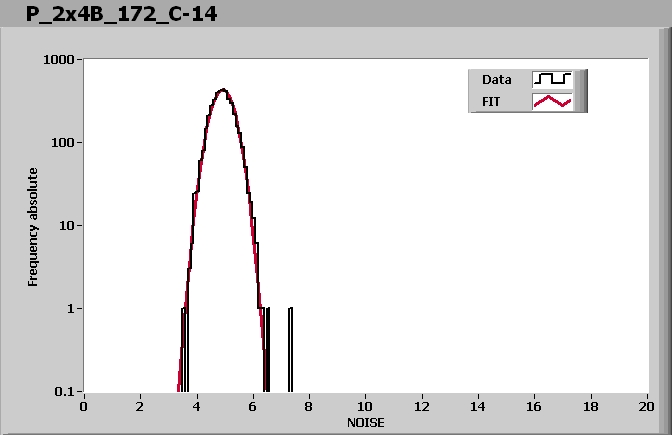

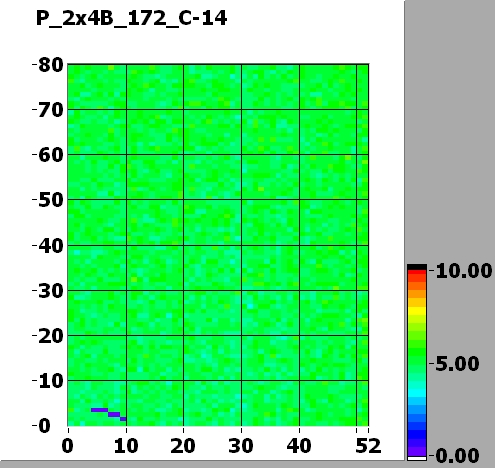

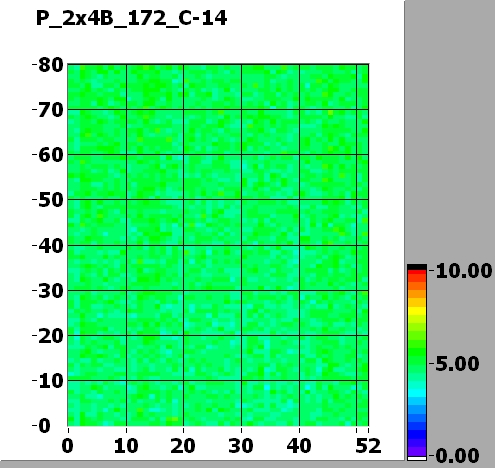

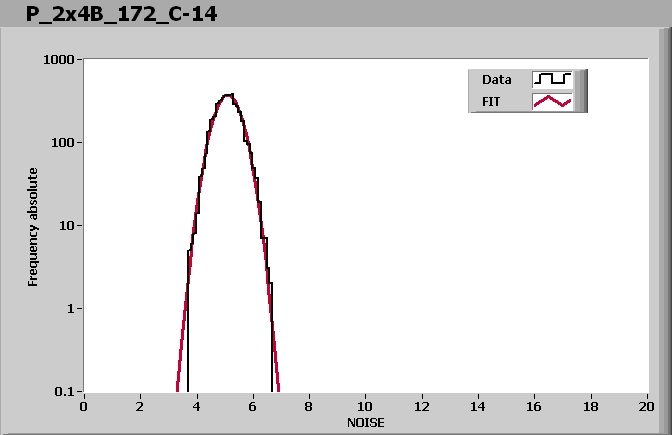

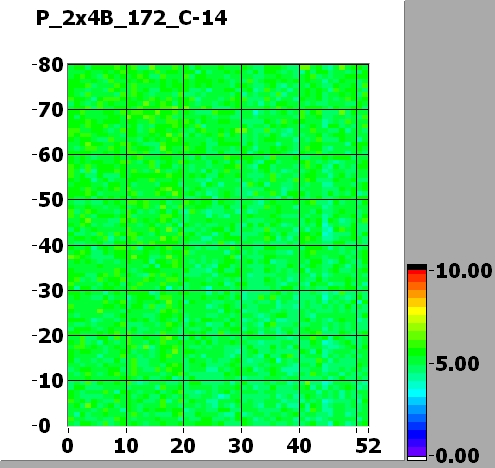

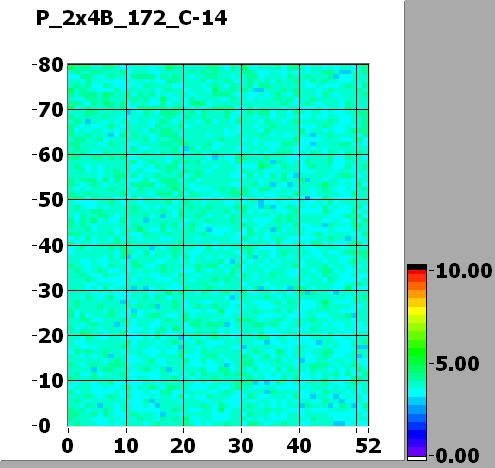

ROC0 NOISE			MEAN = 3.688467 SIGMA = 0.285388
ROC1 NOISE			MEAN = 4.986228 SIGMA = 0.388285
ROC2 NOISE			MEAN = 4.299057 SIGMA = 0.355977
ROC3 NOISE			MEAN = 4.914528 SIGMA = 0.382642
ROC4 NOISE			MEAN = 4.615941 SIGMA = 0.366027
ROC5 NOISE			MEAN = 4.409187 SIGMA = 0.379979
ROC6 NOISE			MEAN = 4.762386 SIGMA = 0.387613
ROC7 NOISE			MEAN = 5.097201 SIGMA = 0.442306
