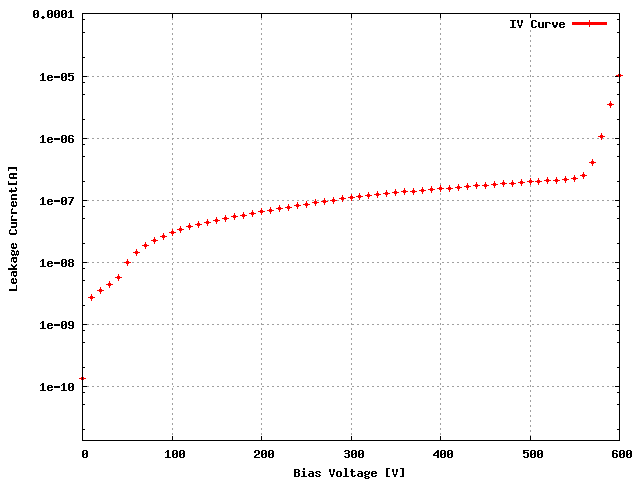

Sensor: S_2x4B_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XH4KFBT	49D
ROC1	XH4KFBT	40A
ROC2	XH4KFBT	40B
ROC3	XH4KFBT	41A
ROC4	XH4KFBT	41B
ROC5	XH4KFBT	42A
ROC6	XH4KFBT	42B
ROC7	XH4KFBT	43A

This plaquette was reworked. Old results here

Inspected by Arndt Kirk on date 7/30/2007

Picture	Comment
	Picture of substance on backside of ROC0 (representative of substance on backsides of all original ROCs) in the reworked BMM. The substance is not removed by gentle swabbing with alcohol.

Ibias_DAC, Ibias_DAC Data	178	146	150	144	156	146	162	140
Vana, VanaData	148	124	124	126	130	131	140	127
CalDelData and plots	78	87	78	87	79	81	70	87
VthrCompData and plots	84	74	72	73	75	85	75	70
TestDdata ,TestD Plots	2	9	6	0	0	1	0	1
LightData ,Light Plots	9	36	3	0	0	1	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

did not find laser signal, ran badchs and light by hand
