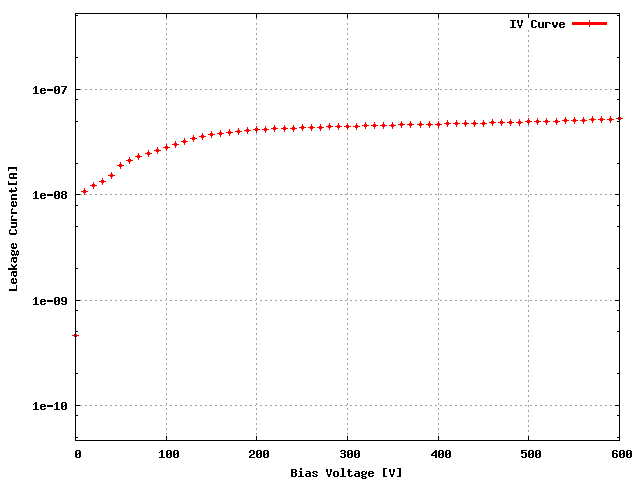

Sensor: S_2x3T_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XF4K3JT | 21D |
| ROC1 | XF4K3JT | 24D |
| ROC2 | XF4K3JT | 22C |
| ROC3 | XF4K3JT | 32B |
| ROC4 | XF4K3JT | 32A |
| ROC5 | XF4K3JT | 31B |
| Ibias_DAC, Ibias_DAC Data | 128 | 125 | 127 | 127 | 157 | 135 |
| Vana, VanaData | 117 | 135 | 127 | 122 | 131 | 125 |
| CalDelData and plots | 92 | 85 | 82 | 90 | 71 | 85 |
| VthrCompData and plots | 80 | 68 | 83 | 65 | 75 | 72 | Depletion Voltage is -10 and suggested operational voltage is -50
| TestDdata ,TestD Plots | 0 | 0 | 95 | 0 | 0 | 0 |
| LightData ,Light Plots | 590 | 68 | 17 | 4 | 13 | 57 |
| Pass/Fail TestD | GOOD | GOOD | BAD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | BAD | BAD | GOOD | GOOD | GOOD | BAD |
Comment (if any): one more test
This Device have been tested 6Times prior to this one and here are the links to the previous tests:End testing time: 12:02 PM
