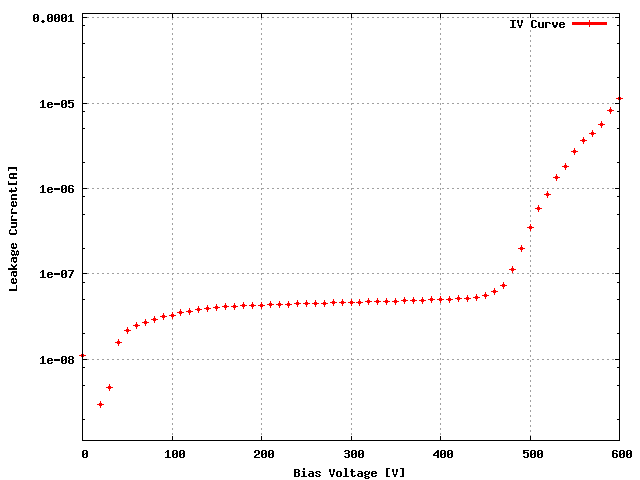

Sensor: S_2x3T_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XF4K3JT | 21D |
| ROC1 | XF4K3JT | 24D |
| ROC2 | XF4K3JT | 22C |
| ROC3 | XF4K3JT | 32B |
| ROC4 | XF4K3JT | 32A |
| ROC5 | XF4K3JT | 31B |
| Ibias_DAC, Ibias_DAC Data | 128 | 126 | 128 | 128 | 158 | 136 |
| Vana, VanaData | 116 | 134 | 127 | 121 | 130 | 124 |
| CalDelData and plots | 92 | 85 | 82 | 89 | 71 | 85 |
| VthrCompData and plots | 79 | 67 | 83 | 64 | 74 | 72 | Depletion Voltage is -42 and suggested operational voltage is -82
| TestDdata ,TestD Plots | 0 | 0 | 28 | 0 | 0 | 0 |
| LightData ,Light Plots | 712 | 120 | 53 | 5 | 7 | 69 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | BAD | BAD | BAD | GOOD | GOOD | BAD |
Comment (if any): MANY BAD THINGS. Disconnected channels all over and some undecoded (the undecoded are our problem)
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 9:02 AM
