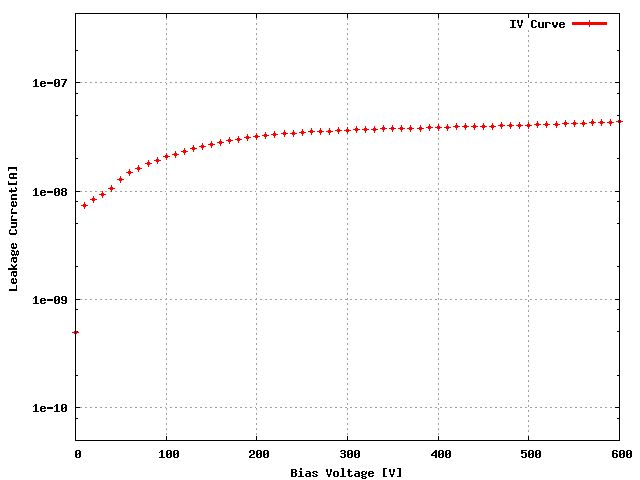

Sensor: S_2x3T_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | XF4K3JT | 21D |
ROC1 | XF4K3JT | 24D |
ROC2 | XF4K3JT | 22C |
ROC3 | XF4K3JT | 32B |
ROC4 | XF4K3JT | 32A |
ROC5 | XF4K3JT | 31B |
Ibias_DAC, Ibias_DAC Data | 125 | 124 | 126 | 126 | 156 | 133 |
Vana, VanaData | 117 | 135 | 127 | 122 | 131 | 125 |
CalDelData and plots | 92 | 85 | 82 | 90 | 71 | 85 |
VthrCompData and plots | 79 | 67 | 82 | 64 | 74 | 72 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 0 | 0 | 464 | 0 | 0 | 0 |
LightData ,Light Plots | 350 | 68 | 29 | 2 | 12 | 49 |
Pass/Fail TestD | GOOD | GOOD | BAD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | BAD | BAD | GOOD | GOOD | GOOD | BAD |
Comment (if any): Remeasured to compare results after hammering.
This Device have been tested 3Times prior to this one and here are the links to the previous tests:End testing time: 12:35 PM
