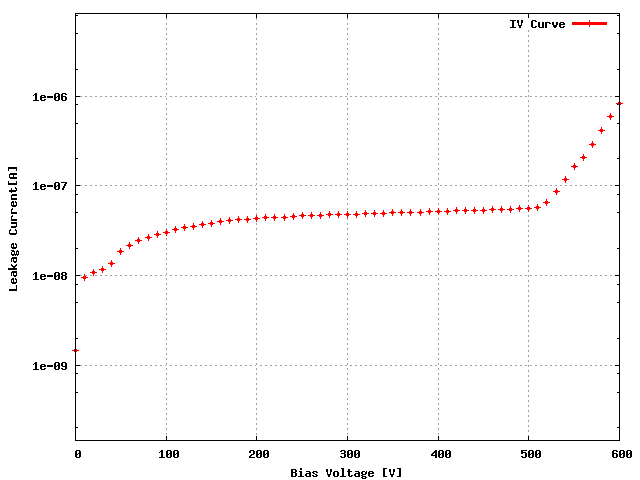

Sensor: S_2x3T_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XF4K3JT | 21D |
| ROC1 | XF4K3JT | 24D |
| ROC2 | XF4K3JT | 22C |
| ROC3 | XF4K3JT | 32B |
| ROC4 | XF4K3JT | 32A |
| ROC5 | XF4K3JT | 31B |
| Ibias_DAC, Ibias_DAC Data | 129 | 127 | 129 | 129 | 159 | 137 |
| Vana, VanaData | 116 | 134 | 127 | 121 | 130 | 124 |
| CalDelData and plots | 92 | 85 | 82 | 89 | 71 | 84 |
| VthrCompData and plots | 79 | 68 | 84 | 64 | 75 | 72 | Depletion Voltage is -42 and suggested operational voltage is -82
| TestDdata ,TestD Plots | 0 | 0 | 2 | 0 | 0 | 0 |
| LightData ,Light Plots | 637 | 85 | 48 | 4 | 11 | 70 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | BAD | BAD | BAD | GOOD | GOOD | BAD |
Comment (if any): same as before
This Device have been tested 1Times prior to this one and here are the links to the previous tests:End testing time: 9:25 AM
