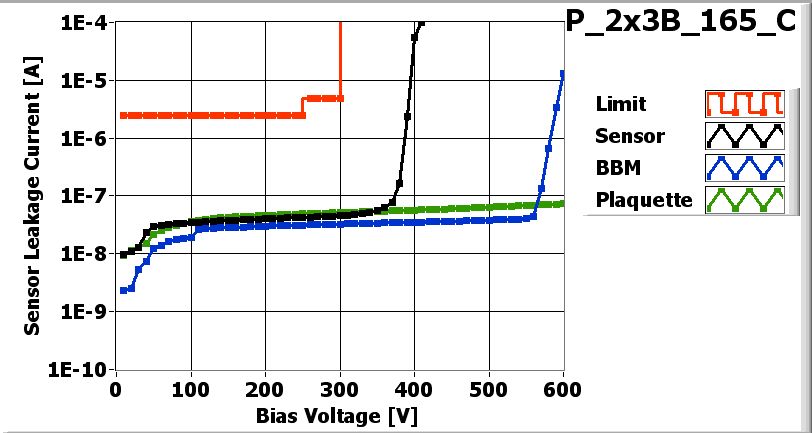

![[IMAGE] of](P_2x3B_165_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_165_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 5/7/2007
| Part | ID |
|---|---|
| BBM | BBM_165-2x3B |
| VHDI | 2x3_453 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KFNG13T | 12C |
| ROC1 | KFNG13T | 21D |
| ROC2 | KFNG13T | 03C |
| ROC3 | KFNG13T | 22A |
| ROC4 | KFNG13T | 42A |
| ROC5 | KFNG13T | 42B |
Inspected by Lockwood Gale on date 5/9/2007
| LR_dev | 0.040 |
| LL_dev | 0.057 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/9/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/9/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/9/2007 by Ortiz Jason
P_2x3B_165_Con 5/10/2007 12:25 PM
P_2x3B_165_Con 5/10/2007 12:25 PM
P_2x3B_165_C-1on 5/10/2007 12:56 PM
P_2x3B_165_C-1on 5/10/2007 12:56 PM
P_2x3B_165_C-2on 5/10/2007 2:10 PM
P_2x3B_165_C-2on 5/10/2007 2:10 PM
P_2x3B_165_C-3on 5/10/2007 2:41 PM
P_2x3B_165_C-3on 5/10/2007 2:41 PM
PLAQUETTE TESTED on 2007-05-10 by mia tosi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 166 | 162 | 148 | 170 | 166 | 150 | |
| Vana | 142 | 151 | 127 | 157 | 143 | 124 | |
| Cal_Del | 80 | 79 | 72 | 67 | 73 | 77 | |
| Vthrs_Comp | 83 | 89 | 71 | 89 | 79 | 88 | |
| Unbumped | 0 | 1 | 78 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 78 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

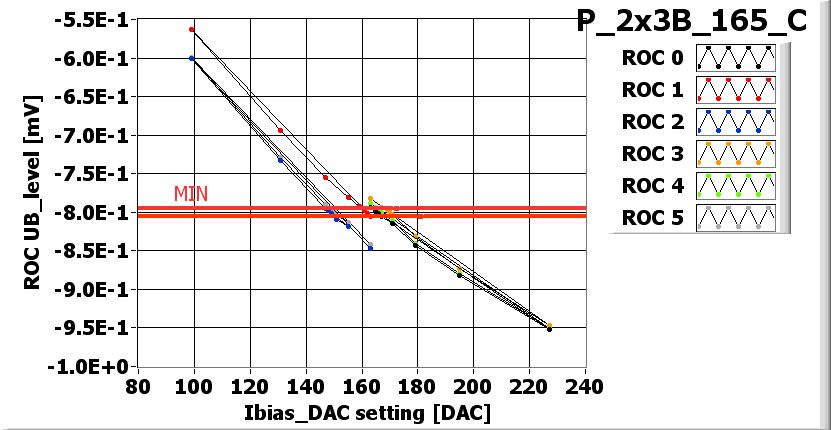

![[IMAGE] of](P_2x3B_165_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

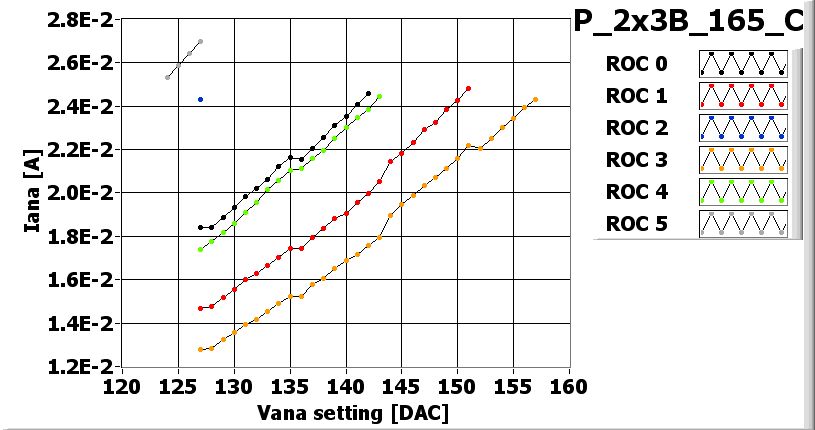

![[IMAGE] of](P_2x3B_165_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_165_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_165_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_165_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

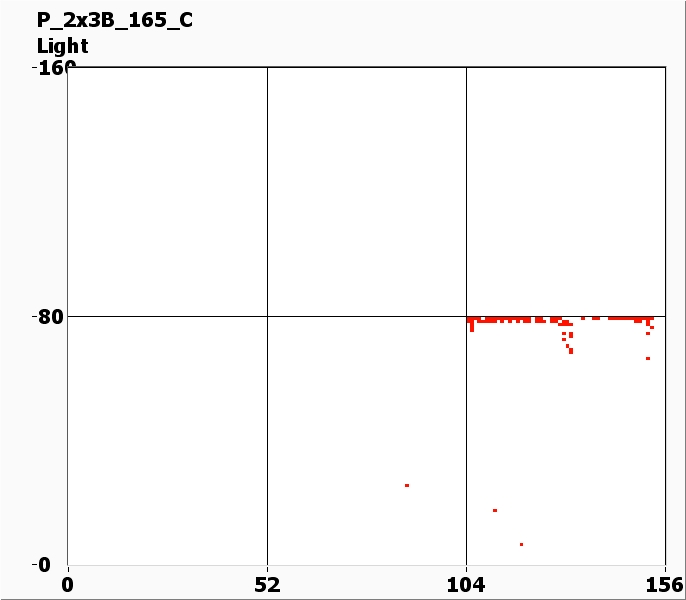

![[IMAGE] of](P_2x3B_165_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 95 | 140 | 95 | 100 | 140 |
| Vsf | 140 | 150 | 140 | 150 | 140 | 135 |
| VoffsetOp | 95 | 105 | 65 | 110 | 90 | 105 |
| VIbias_PH | 100 | 100 | 105 | 95 | 100 | 95 |
Noise MAP
![[IMAGE] of](P_2x3B_165_C-3-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_165_C-3-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
