P_2x3B_165_C-2

Production testing

Date:5/10/2007

Operator: mia tosi

start testing time:2:10 PM

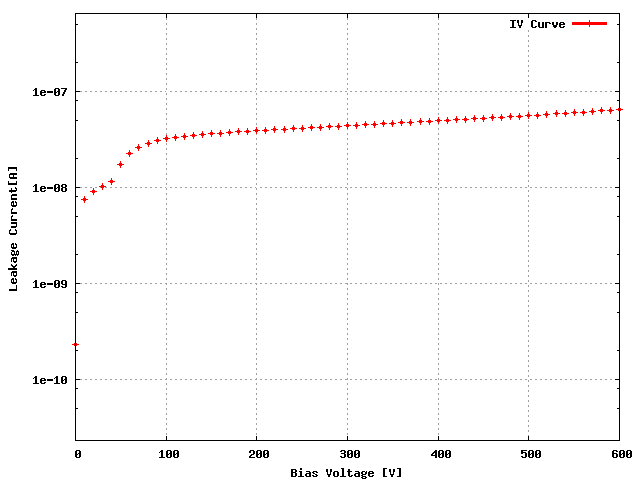

Sensor: S_2x3B_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0KFNG13T12C
ROC1KFNG13T21D
ROC2KFNG13T03C
ROC3KFNG13T22A
ROC4KFNG13T42A
ROC5KFNG13T42B

Depletion Voltage is -104 and suggested operational voltage is -144
Ibias_DAC, Ibias_DAC Data 126 134 112 126 122 212
Vana, VanaData 176 183 162 191 173 149
CalDelData and plots706970707070
VthrCompData and plots706970707070
TestDdata ,TestD Plots418641854186418541864183
LightData ,Light Plots362495305122242186
Pass/Fail TestD BAD BAD BAD BAD BAD BAD
Pass/Fail LIGHT BAD BAD BAD BAD BAD BAD

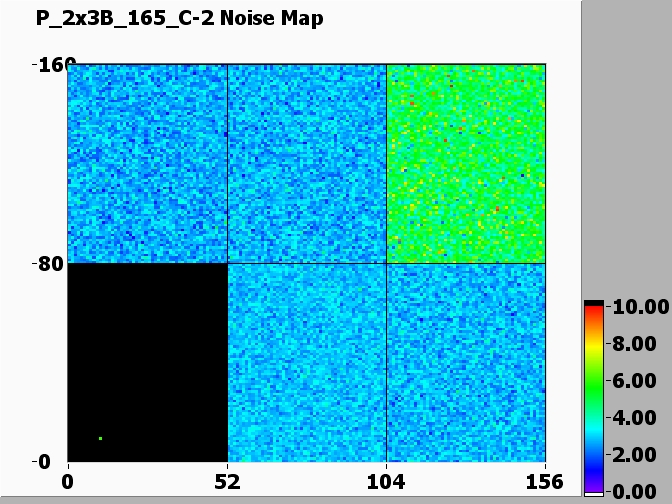

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe035145454045
Vsf14520512515060175
VoffsetOp2402402402400120
VIbias_PH19500500
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 24.774612

SIGMA = 4.318391

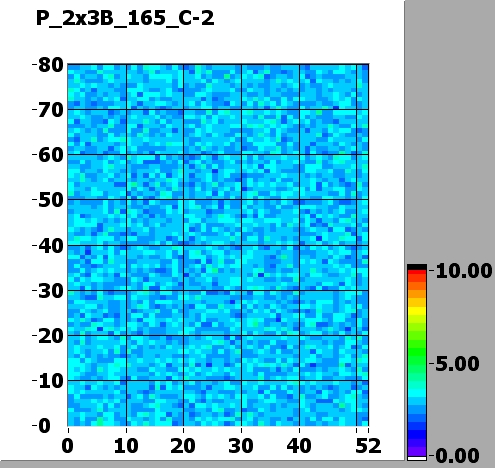

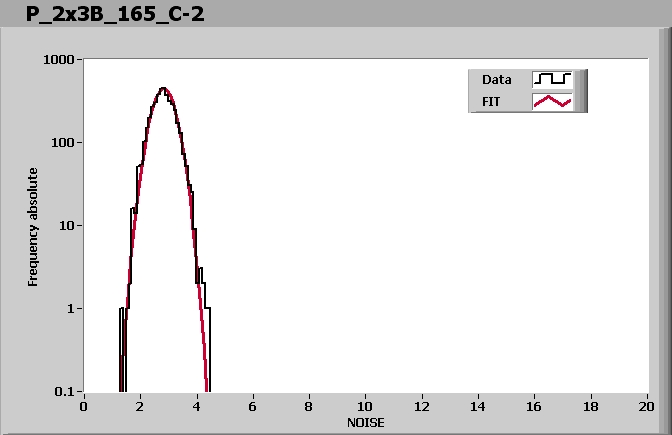

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 2.816738

SIGMA = 0.376607

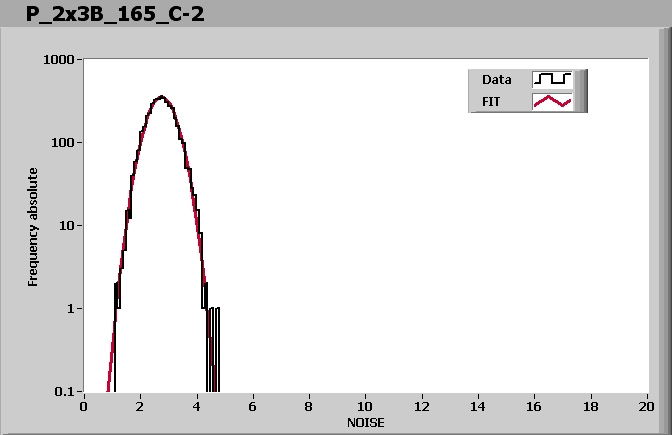

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 2.744003

SIGMA = 0.472153

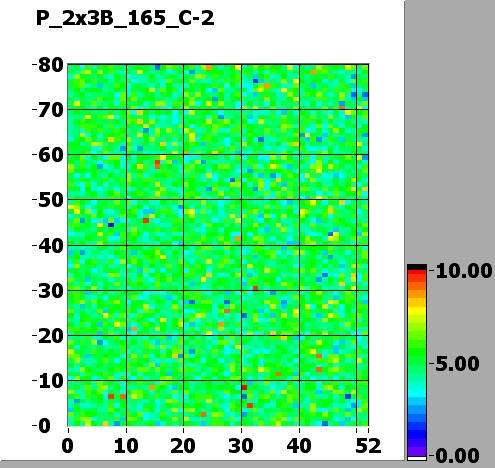

ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.890129

SIGMA = 0.914270

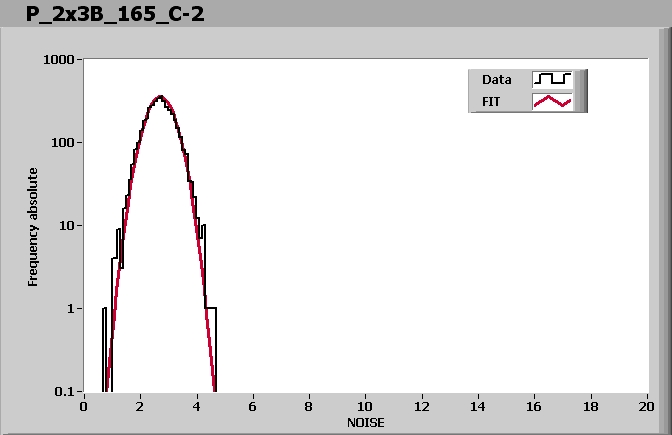

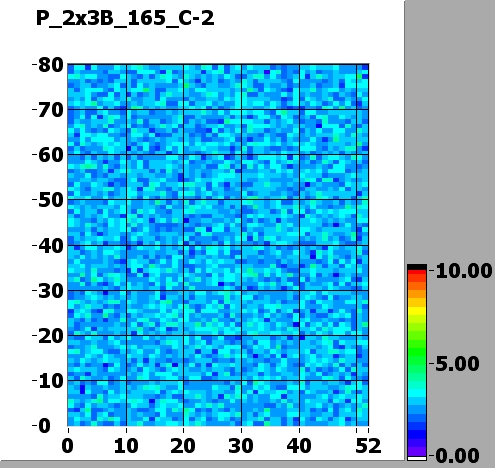

ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 2.703724

SIGMA = 0.474140

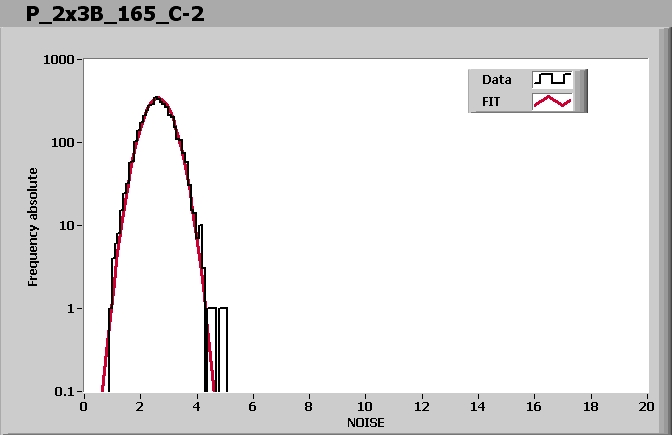

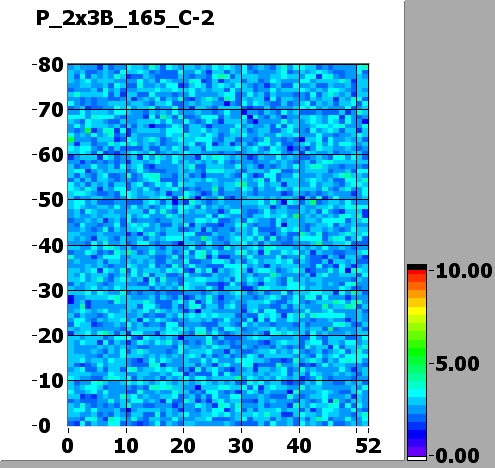

ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 2.626010

SIGMA = 0.490619

Comment (if any): Vana wrong

This Device have been tested 2Times prior to this one and here are the links to the previous tests:

P_2x3B_165_C-1.html,

P_2x3B_165_C.html,

End testing time: 2:36 PM
