Production testing

Date:5/10/2007

Operator: mia tosi

start testing time:12:25 PM

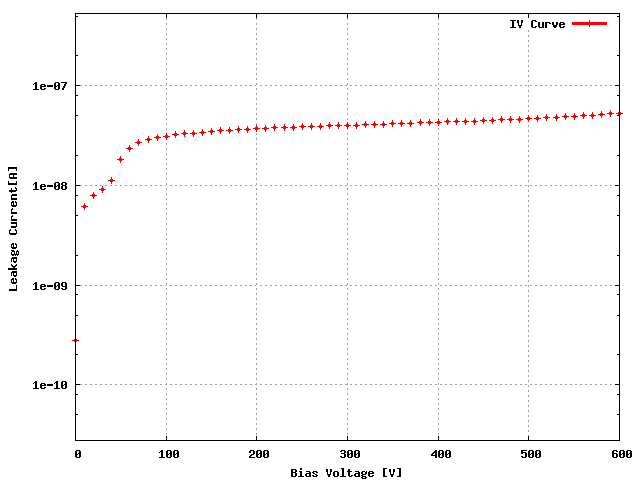

Sensor: S_2x3B_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KFNG13T 12C

ROC1 KFNG13T 21D

ROC2 KFNG13T 03C

ROC3 KFNG13T 22A

ROC4 KFNG13T 42A

ROC5 KFNG13T 42B

ROC	ROC wafer	Label
ROC0	KFNG13T	12C
ROC1	KFNG13T	21D
ROC2	KFNG13T	03C
ROC3	KFNG13T	22A
ROC4	KFNG13T	42A
ROC5	KFNG13T	42B

Depletion Voltage is -106 and suggested operational voltage is -146

Ibias_DAC, Ibias_DAC Data 124 112 110 110 128 124

Vana, VanaData 175 165 165 157 167 179

CalDelData and plots 70 70 70 70 70 0

VthrCompData and plots 70 69 70 70 70 0

TestDdata ,TestD Plots 4186 4184 4186 4186 4184 0

LightData ,Light Plots 517 394 286 149 362 0

Pass/Fail TestD BAD BAD BAD BAD BAD GOOD

Pass/Fail LIGHT BAD BAD BAD BAD BAD GOOD

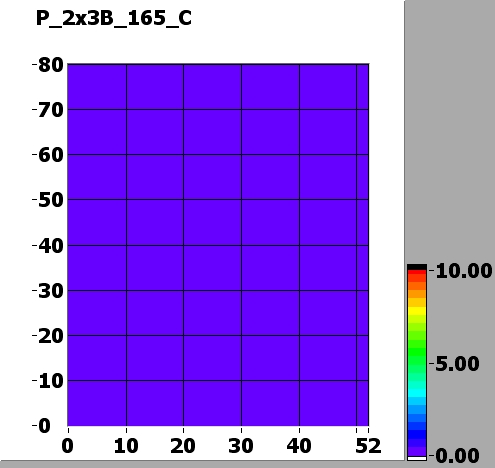

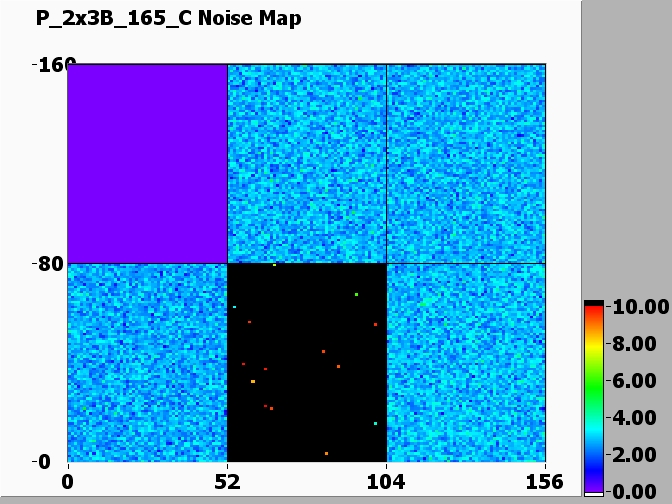

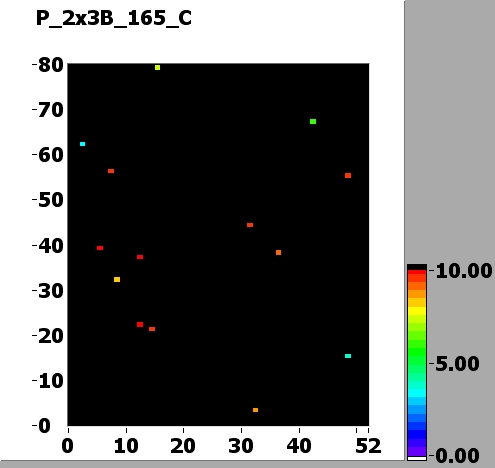

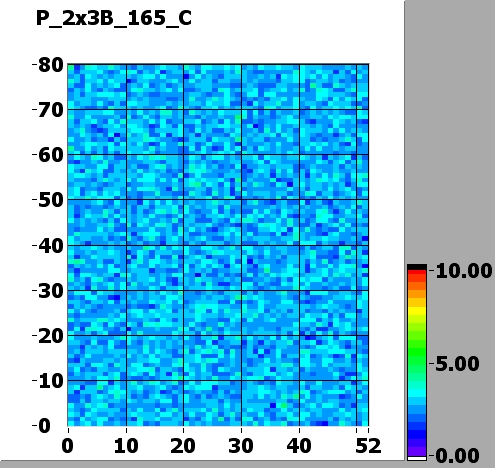

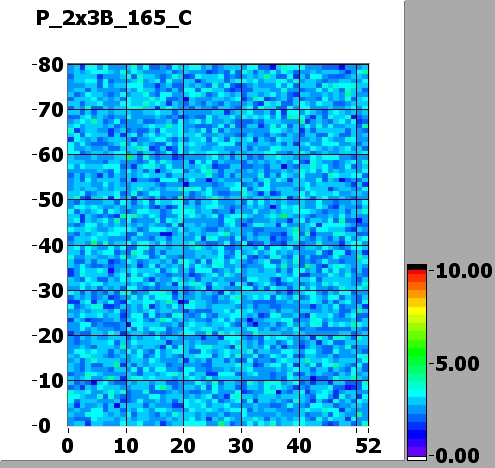

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	100	175	155	5	0	0
Vsf	200	65	110	185	220	0
VoffsetOp	240	180	125	125	125	85
VIbias_PH	0	195	0	0	0	160

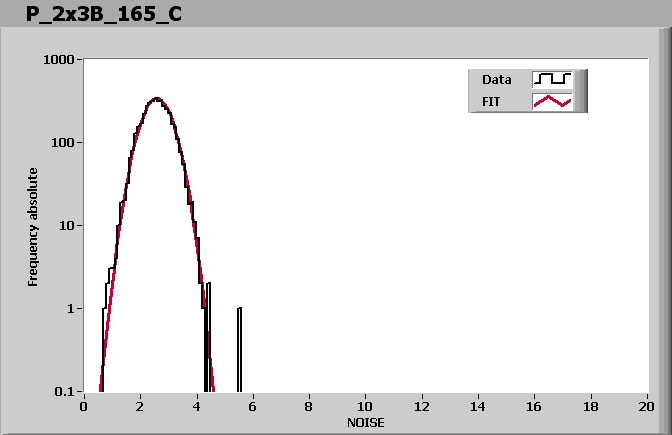

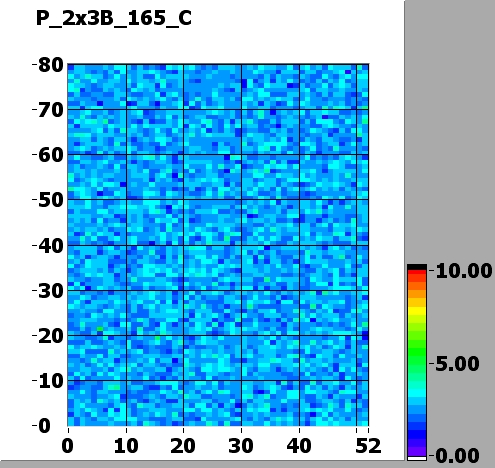

ROC0 NOISE			MEAN = 2.580557 SIGMA = 0.496708

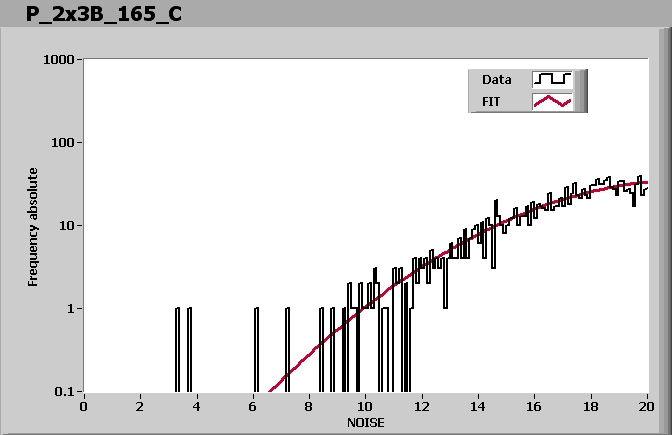

ROC1 NOISE			MEAN = 21.660466 SIGMA = 4.384864

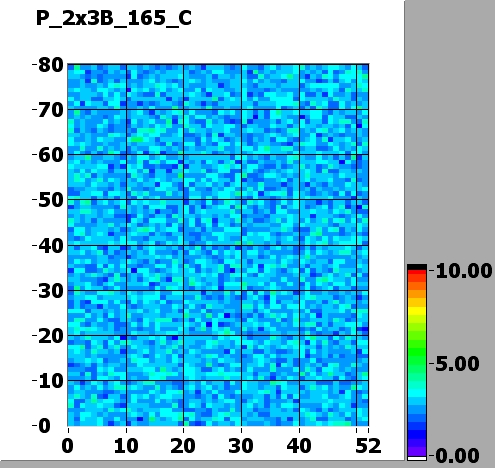

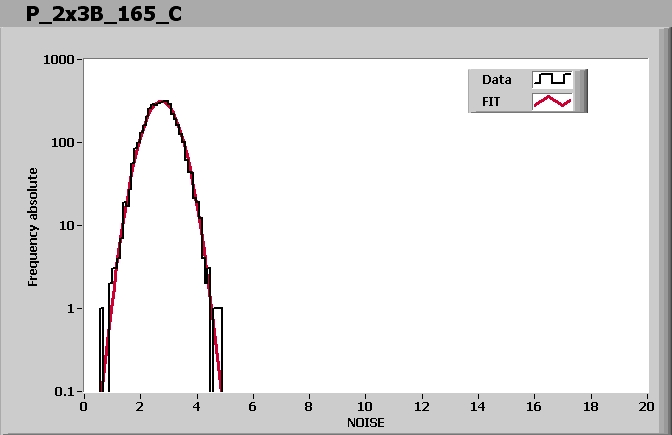

ROC2 NOISE			MEAN = 2.737572 SIGMA = 0.525309

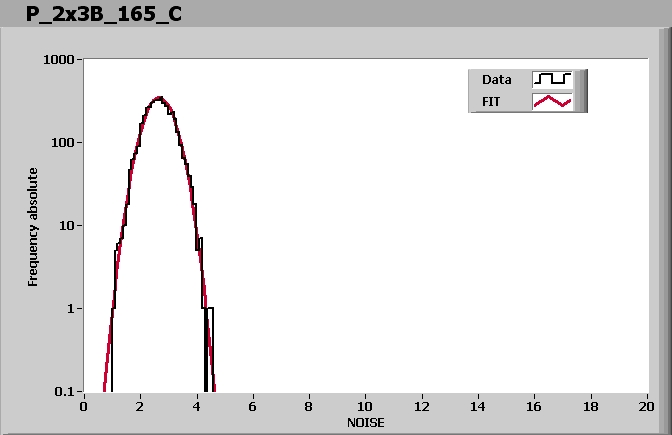

ROC3 NOISE			MEAN = 2.664023 SIGMA = 0.485614

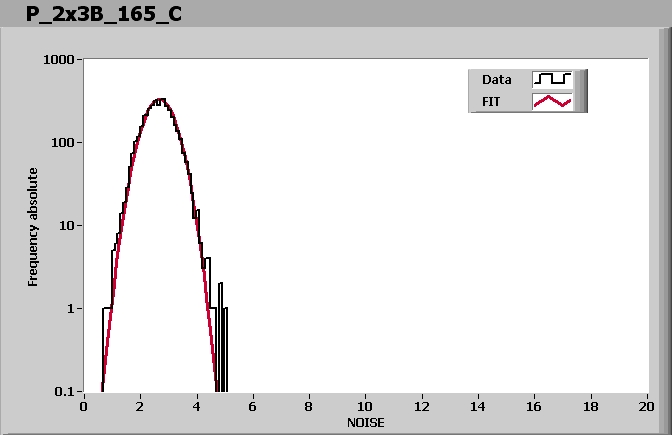

ROC4 NOISE			MEAN = 2.671134 SIGMA = 0.505482
ROC5 NOISE			MEAN = NaN SIGMA = NaN

Comment (if any): bad

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 12:54 PM
