P_2x3B_165

P_2x3B_165_C-3

Production testing

Date:5/10/2007

Operator: mia tosi

start testing time:2:41 PM

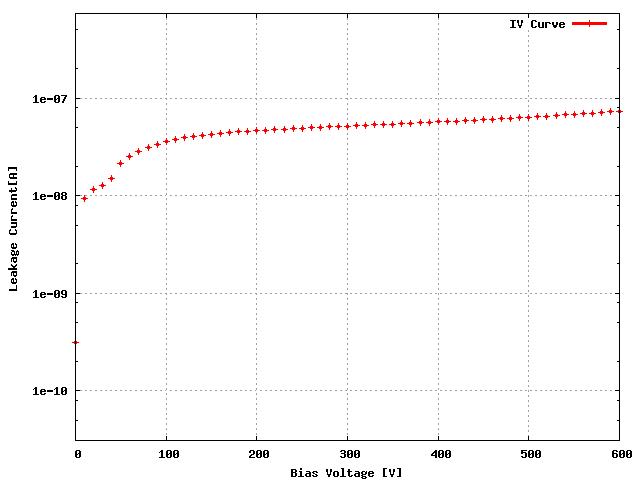

Sensor: S_2x3B_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KFNG13T 12C

ROC1 KFNG13T 21D

ROC2 KFNG13T 03C

ROC3 KFNG13T 22A

ROC4 KFNG13T 42A

ROC5 KFNG13T 42B

ROC	ROC wafer	Label
ROC0	KFNG13T	12C
ROC1	KFNG13T	21D
ROC2	KFNG13T	03C
ROC3	KFNG13T	22A
ROC4	KFNG13T	42A
ROC5	KFNG13T	42B

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 166 162 148 170 166 150

Vana, VanaData 142 151 127 157 143 124

CalDelData and plots 80 79 72 67 73 77

VthrCompData and plots 83 89 71 89 79 88

TestDdata ,TestD Plots 1 0 37 0 0 0

LightData ,Light Plots 0 1 78 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD BAD GOOD GOOD GOOD

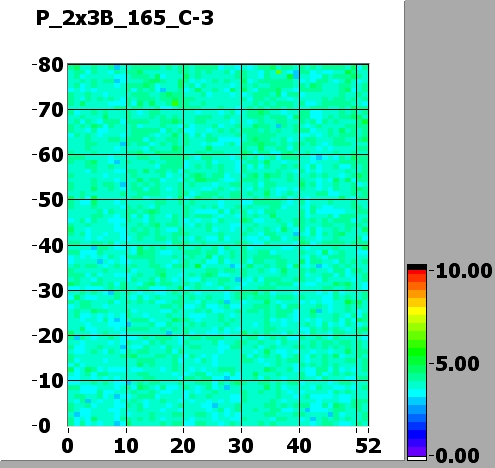

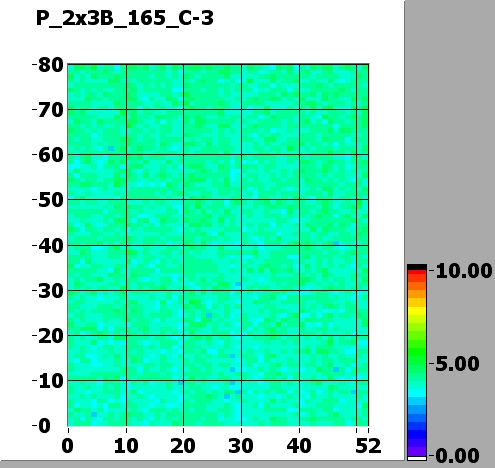

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	100	95	140	95	100	140
Vsf	140	150	140	150	140	135
VoffsetOp	95	105	65	110	90	105
VIbias_PH	100	100	105	95	100	95

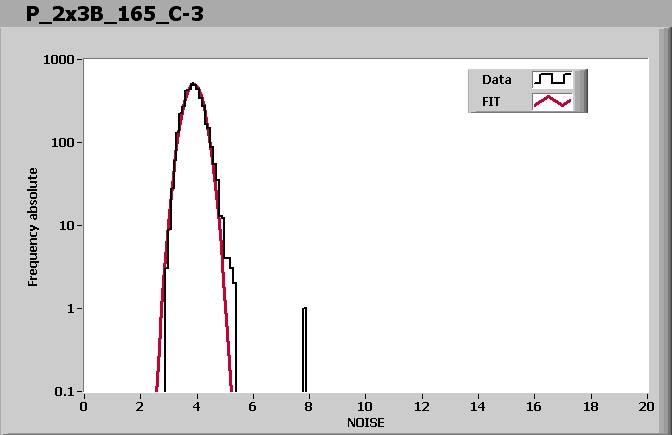

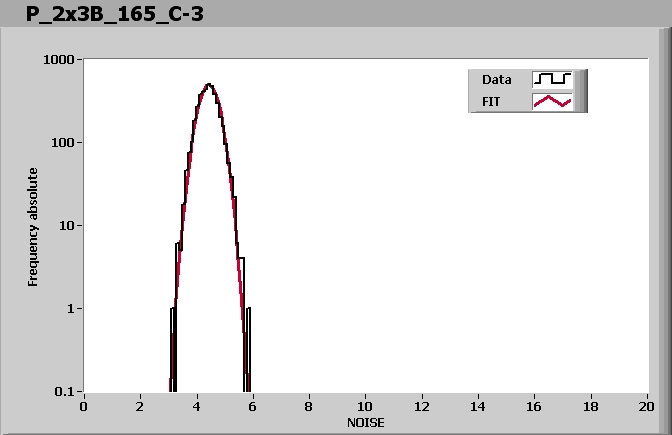

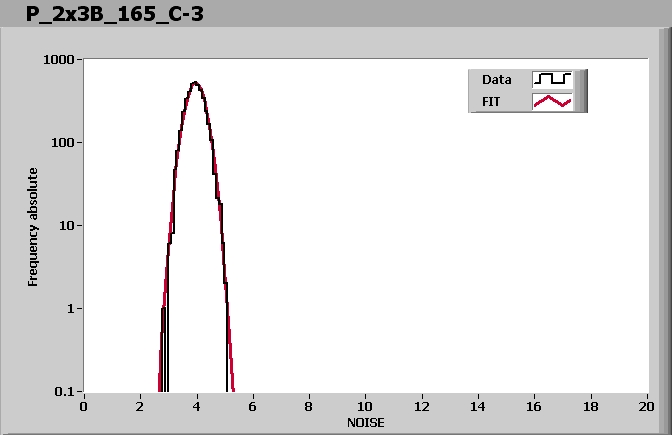

ROC0 NOISE			MEAN = 3.991980 SIGMA = 0.321638
ROC1 NOISE			MEAN = 3.821698 SIGMA = 0.320004
ROC2 NOISE			MEAN = 4.422848 SIGMA = 0.335944
ROC3 NOISE			MEAN = 3.884811 SIGMA = 0.321584
ROC4 NOISE			MEAN = 4.154181 SIGMA = 0.335237
ROC5 NOISE			MEAN = 3.953665 SIGMA = 0.318947

Comment (if any): 77 bad channel on the ROC2 border

This Device have been tested 3Times prior to this one and here are the links to the previous tests:

P_2x3B_165_C-1.html,

P_2x3B_165_C-2.html,

P_2x3B_165_C.html,

End testing time: 2:59 PM

Ibias_DAC, Ibias_DAC Data	166	162	148	170	166	150
Vana, VanaData	142	151	127	157	143	124
CalDelData and plots	80	79	72	67	73	77
VthrCompData and plots	83	89	71	89	79	88
TestDdata ,TestD Plots	1	0	37	0	0	0
LightData ,Light Plots	0	1	78	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	BAD	GOOD	GOOD	GOOD
