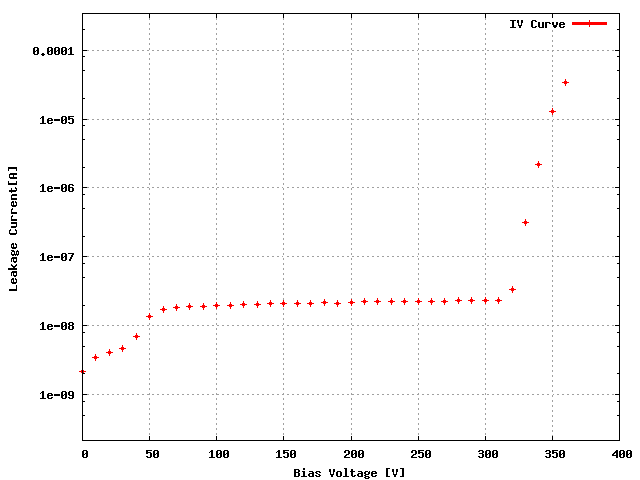

Sensor: S_2x3B_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | XE4KFET | 67B |
ROC1 | XE4KFET | 68C |
ROC2 | XE4KFET | 62D |
ROC3 | XE4KFET | 64C |
ROC4 | XE4KFET | 65C |
ROC5 | XE4KFET | 75A |
Ibias_DAC, Ibias_DAC Data | 138 | 142 | 130 | 142 | 142 | 126 |
Vana, VanaData | 128 | 144 | 157 | 142 | 118 | 129 |
CalDelData and plots | 93 | 73 | 0 | 88 | 78 | 86 |
VthrCompData and plots | 74 | 77 | 0 | 82 | 71 | 71 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 0 | 11 | 0 | 2 | 6 | 3 |
LightData ,Light Plots | 0 | 1 | 0 | 5 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

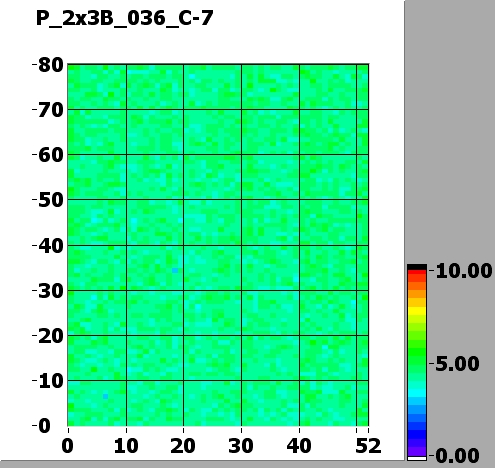

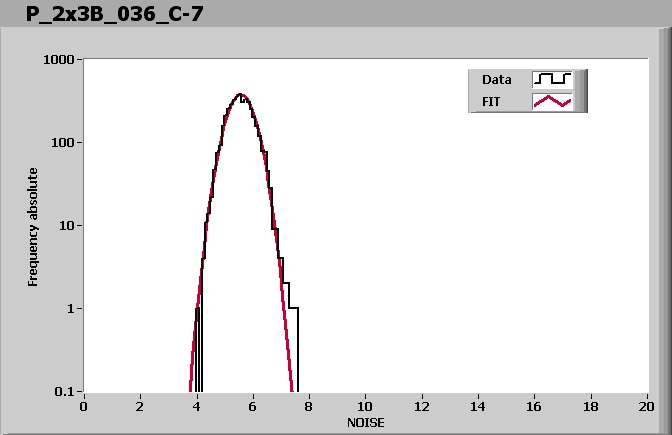

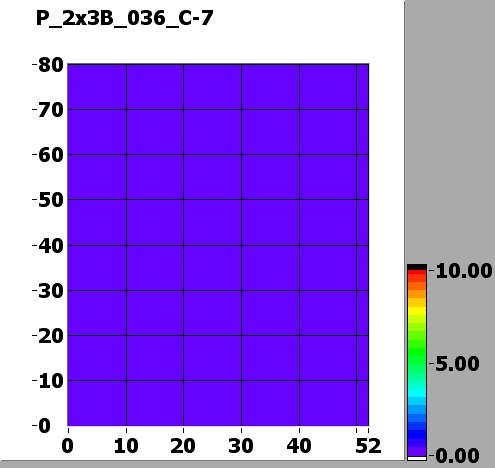

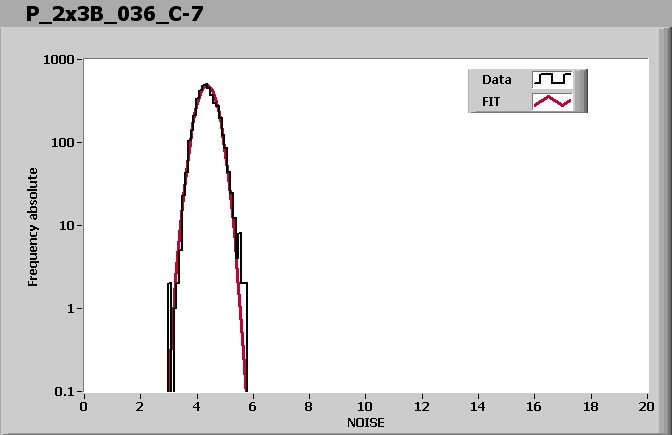

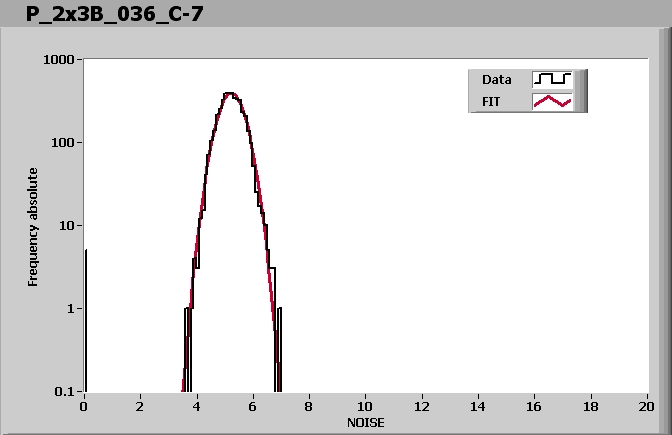

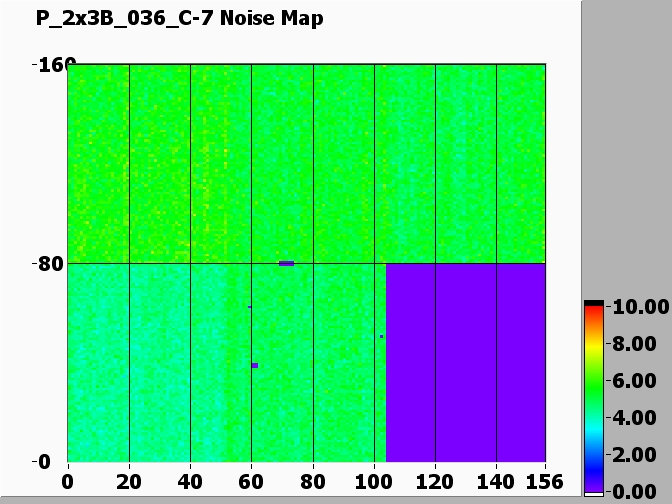

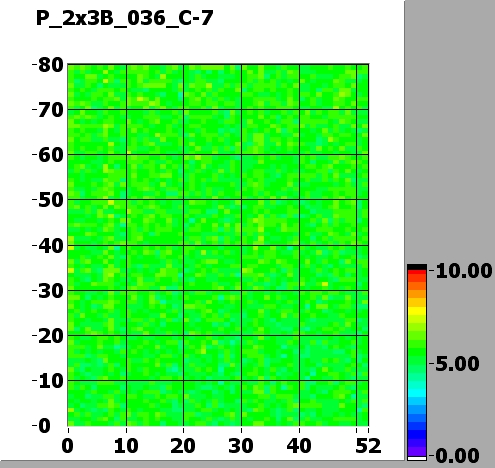

Noise MAP

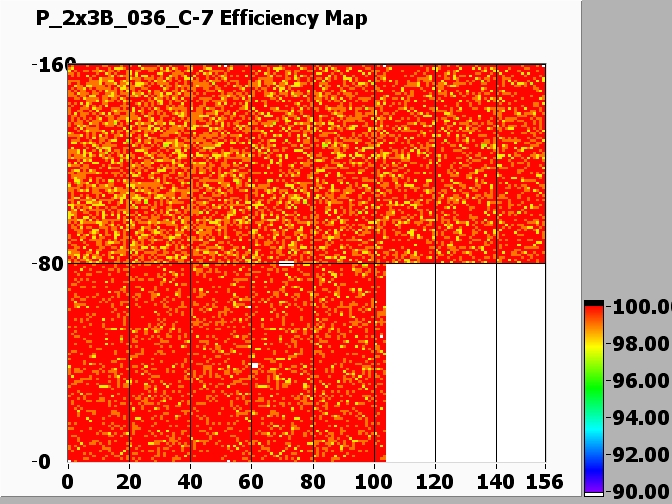

Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 125 | 105 | 0 | 95 | 145 | 120 |
Vsf | 140 | 140 | 0 | 140 | 140 | 140 |
VoffsetOp | 90 | 80 | 0 | 75 | 65 | 65 |
VIbias_PH | 100 | 100 | 0 | 100 | 105 | 105 |
Comment (if any):
This Device have been tested 7Times prior to this one and here are the links to the previous tests:End testing time: 9:10 AM
