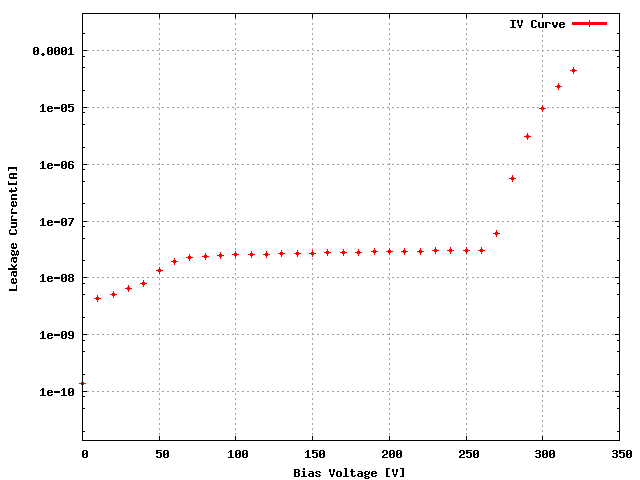

Sensor: S_2x3B_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4KFET | 67B |
| ROC1 | XE4KFET | 68C |
| ROC2 | XE4KFET | 62D |
| ROC3 | XE4KFET | 64C |
| ROC4 | XE4KFET | 65C |
| ROC5 | XE4KFET | 75A |
| Ibias_DAC, Ibias_DAC Data | 142 | 144 | 132 | 144 | 144 | 126 |
| Vana, VanaData | 127 | 144 | 132 | 142 | 118 | 129 |
| CalDelData and plots | 93 | 73 | 89 | 87 | 77 | 86 |
| VthrCompData and plots | 74 | 77 | 81 | 82 | 70 | 71 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 | 74 | 2 | 0 | 2 |
| LightData ,Light Plots | 0 | 1 | 134 | 5 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | BAD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | BAD | GOOD | GOOD | GOOD |
Comment (if any): OK
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:20 PM
