P_2x5_004_C

Parts committed by Bolla Gino on date 2/5/2007

PartID
BBMBBM_004-2x5
VHDI2x5_323

ROCROC waferLabel
ROC0XG4KFCT65D
ROC1XG4KFCT66C
ROC2XG4KFCT66D
ROC3XG4KFCT67D
ROC4XG4KFCT68C
ROC5XG4KFCT63A
ROC6XG4KFCT62B
ROC7XG4KFCT62A
ROC8XG4KFCT61B
ROC9XG4KFCT68D

Inspected by Arndt Kirk on date 2/7/2007
LR_dev0.023
LL_dev0.025
FINAL COMMENT by Arndt KirkNo assembly problems No wirebond problem.

PLAQUETTE made READY for testing on 2/7/2007 by Arndt Kirk

P_2x5_004_Con 2/7/2007 4:36 PM

P_2x5_004_Con 2/7/2007 4:36 PM

PLAQUETTE TESTED on 2007-02-07 by Gino Bolla

[IMAGE] of
IV_XML-File
Maximum Voltage 600 V
[IMAGE] of
LASER_XML-File
Depletion Voltage 52 V
Operational Voltage 92 V

ROCROC0ROC1ROC2ROC3ROC4ROC5ROC6ROC7ROC8ROC9
Ibias_DAC136144128140142140150142144134
Vana143118125145128133120141139141
Cal_Del77101991007195101667681
Vthrs_Comp90727579807374907983
Unbumped1000000001
Dead0000000000
Noisy0000000000
Undecoded0000000000
Total BAD1000000001

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
[IMAGE] of I_BIAS_DAC_XML-File
[IMAGE] of VANA_XML-File
[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File
[IMAGE] of LIGHT_XML-File

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 5.181714

SIGMA = 0.394811
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.432416

SIGMA = 0.343972
ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 4.467555

SIGMA = 0.334444
ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 6.463766

SIGMA = 0.478399
ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 5.644914

SIGMA = 0.420753
ROC5 NOISE[IMAGE] of [IMAGE] of MEAN = 5.300896

SIGMA = 0.522217
ROC6 NOISE[IMAGE] of [IMAGE] of MEAN = 4.785815

SIGMA = 0.422016
ROC7 NOISE[IMAGE] of [IMAGE] of MEAN = 5.817818

SIGMA = 0.545503
ROC8 NOISE[IMAGE] of [IMAGE] of MEAN = 5.645531

SIGMA = 0.464293
ROC9 NOISE[IMAGE] of [IMAGE] of MEAN = 5.650489

SIGMA = 0.470966

PLAQUETTE READY TO BE POTTED

Inspected by Kirk Arndt on date 02-17-2007
PictureComment
[IMAGE] of ROC4-to-VHDI wires were damaged during encapsulation on P_2x5_004_C. Ozhan used a hand-held probe to separate neighboring ROC4-to-VHDI wires that appeared to be in contact. The result was that most of the ROC4-to-VHDI wires were smashed. I suspect that the scratch located on the sensor near the damaged wires (see attached image file) occurred during Ozhan’s probing. No other area on the sensor or ROCs appears to have been affected.

PLAQUETTE encapsulated on 2/19/2007 by Ozhan Koybasi

P_2x5_004_C-1on 2/19/2007 3:48 PM

P_2x5_004_C-1on 2/19/2007 3:48 PM AFTER POTTING

[IMAGE] of

BAD CHANNELS COMPARISON XML-files/NOW

ROCDEADNOISYUNDECODEDTESTDLIGHT
ROC00/00/00/11/01/1
ROC10/00/00/00/00/0
ROC20/00/00/00/00/0
ROC30/00/00/00/00/0
ROC40/00/00/00/20/0
ROC50/00/00/00/00/0
ROC60/00/00/00/00/0
ROC70/00/40/07/50/0
ROC80/00/00/08/10/0
ROC90/00/00/01/11/1

Plaquette Ready for SHIPPING

NOISE measurement taken at -600 V and current -2.109788E-05

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

P_2x5_004_C-2on 2/20/2007 9:27 AM

P_2x5_004_C-3on 2/20/2007 9:35 AM

P_2x5_004_C-3on 2/20/2007 9:35 AM

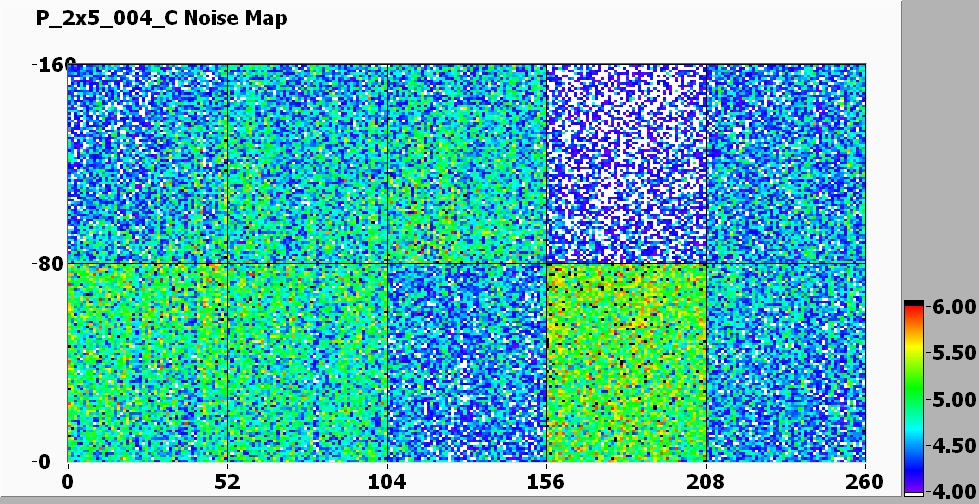

NOISE measurement taken at -600 V and current -1.310023E-06

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

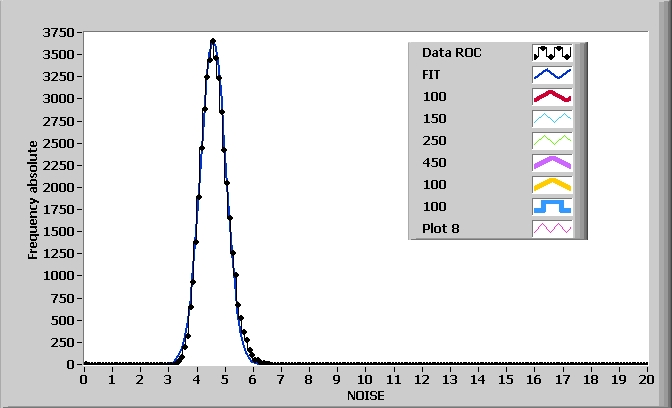

NOISE measurement taken at -700 V and current -1.426417E-06

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

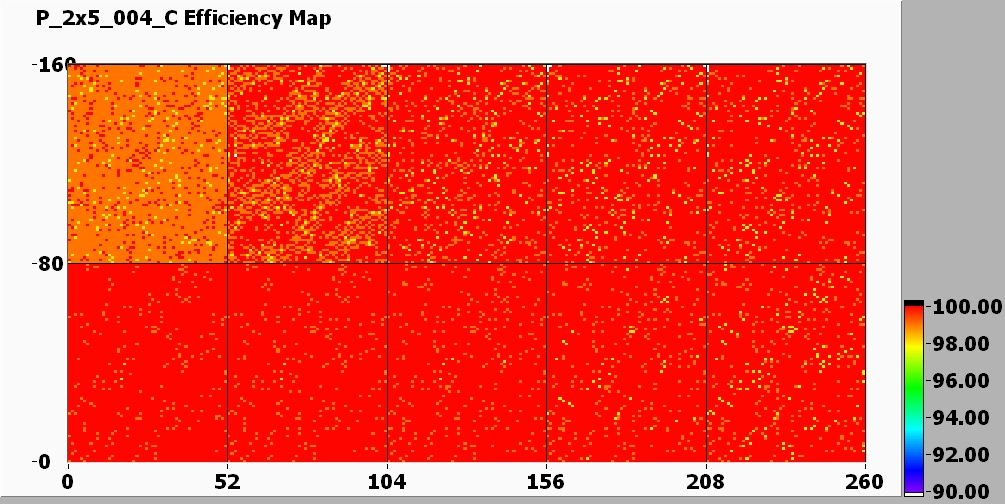

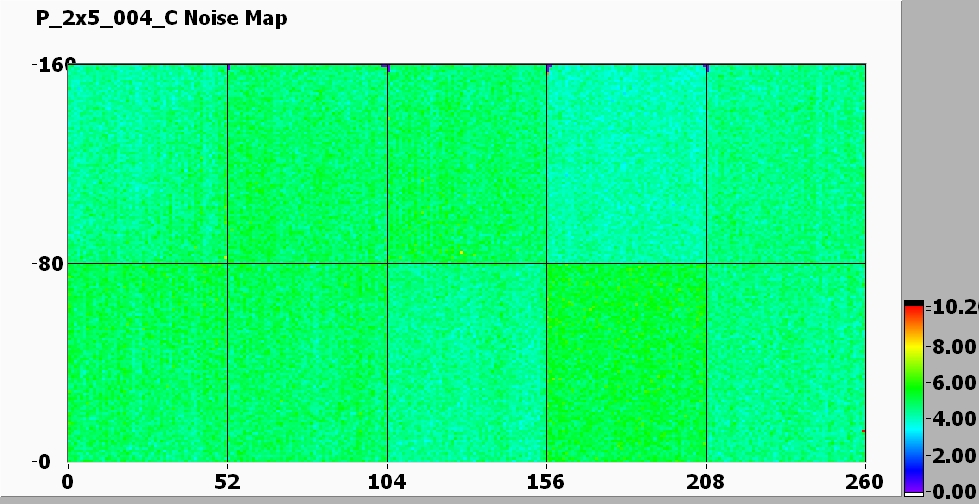

NOISE measurement taken at -800 V and current -2.645332E-05

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

Inspected by Bolla Gino on date 2/20/2007
PictureComment
[IMAGE] of Following up with NOISE measurement at 600V on the scratch. Kind of nice to see the Noisier pixel exactly where the scratch enters the active area.

Shipped on date 2007-02-21

Plaquette assigned to panel P3L_026
