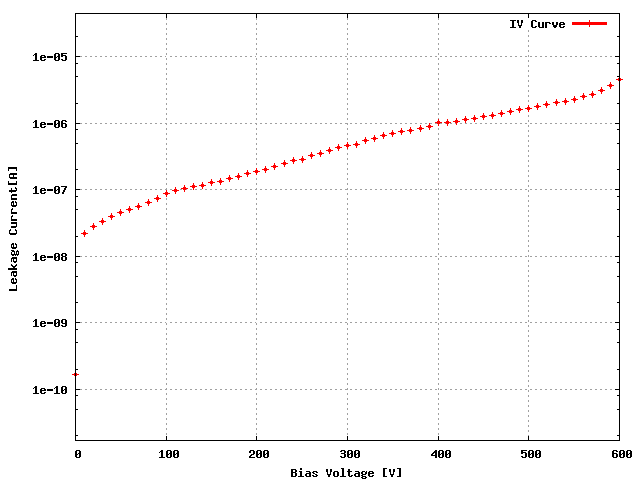

Sensor: S_2x5_004, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XG4KFCT	65D
ROC1	XG4KFCT	66C
ROC2	XG4KFCT	66D
ROC3	XG4KFCT	67D
ROC4	XG4KFCT	68C
ROC5	XG4KFCT	63A
ROC6	XG4KFCT	62B
ROC7	XG4KFCT	62A
ROC8	XG4KFCT	61B
ROC9	XG4KFCT	68D

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	136	144	128	138	142	140	148	142	144	134
Vana, VanaData	142	118	125	144	127	133	120	140	138	141
CalDelData and plots	76	100	99	100	71	95	100	66	76	81
VthrCompData and plots	89	72	76	78	80	74	74	89	79	84
TestDdata ,TestD Plots	0	1	0	0	1	1	5	7	9	1
LightData ,Light Plots	1	0	0	0	0	0	0	0	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

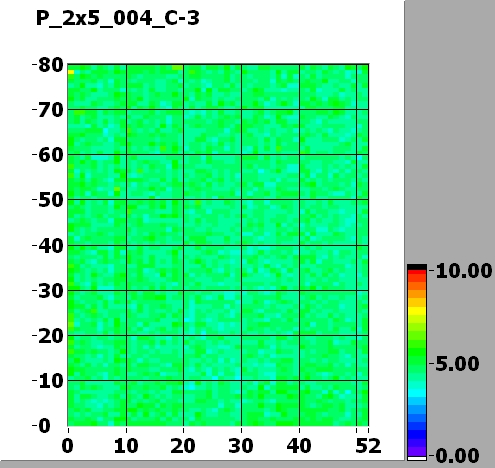

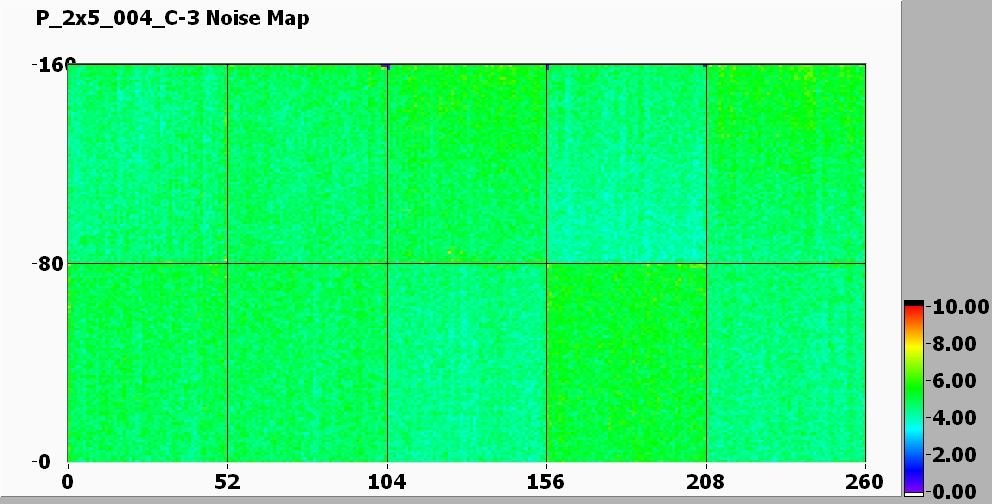

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.830847 SIGMA = 0.413271
ROC1 NOISE			MEAN = 4.762563 SIGMA = 0.376673

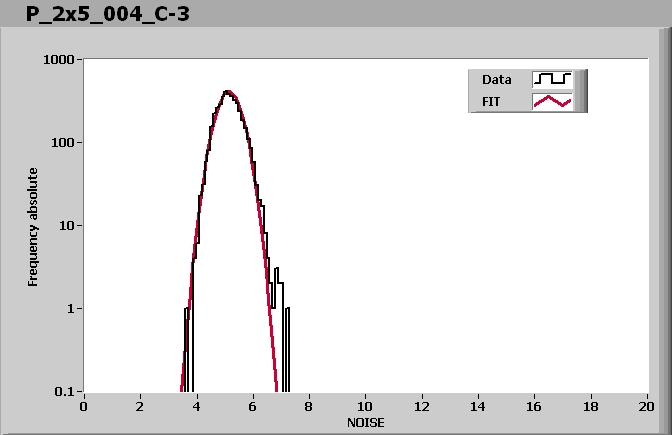

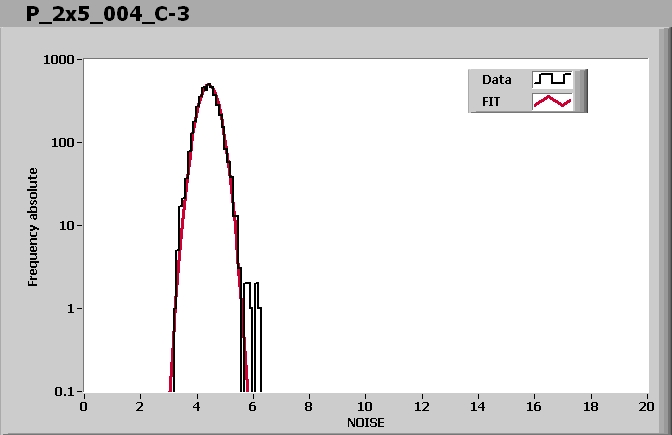

ROC2 NOISE			MEAN = 4.413124 SIGMA = 0.334701
ROC3 NOISE			MEAN = 5.140490 SIGMA = 0.414460
ROC4 NOISE			MEAN = 4.484469 SIGMA = 0.360235

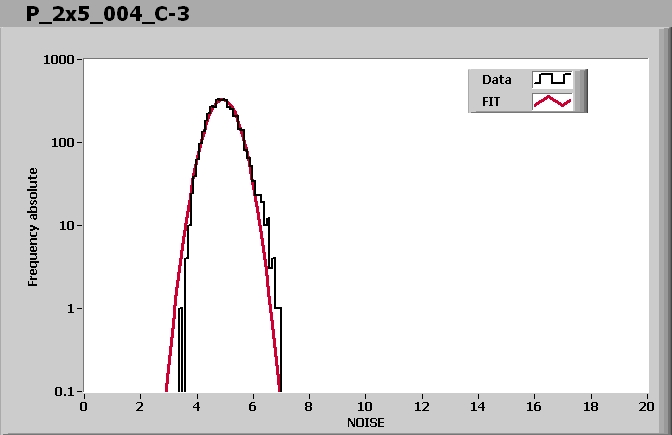

ROC5 NOISE			MEAN = 4.914420 SIGMA = 0.499383
ROC6 NOISE			MEAN = 4.362650 SIGMA = 0.404047
ROC7 NOISE			MEAN = 4.963182 SIGMA = 0.468575

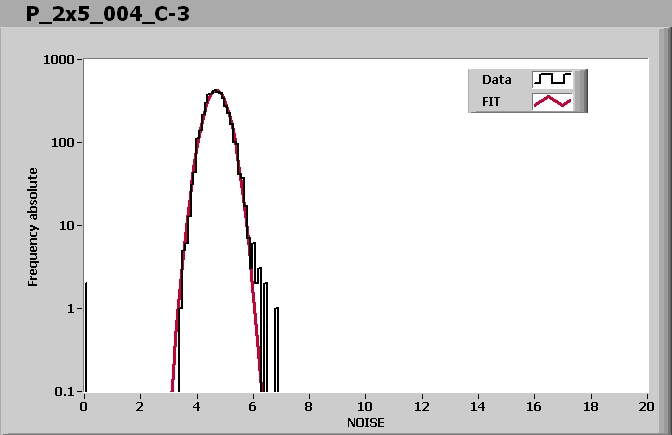

ROC8 NOISE			MEAN = 4.695810 SIGMA = 0.390236
ROC9 NOISE			MEAN = 4.536038 SIGMA = 0.407738

Comment (if any):

P_2x5_004_C-1.html,

P_2x5_004_C-2.html,

P_2x5_004_C.html,

End testing time: 9:56 AM
