P_2x4T_158_A

Parts committed by Bolla Gino on date 12/13/2006

PartID
BBMBBM_158-2x4T
VHDI2x4_279

ROCROC waferLabel
ROC0W21_XA4KFIT20D
ROC1W21_XA4KFIT20C
ROC2W21_XA4KFIT20B
ROC3W21_XA4KFIT20A
ROC4W21_XA4KFIT15C
ROC5W20_XP4K3AT47D
ROC6W20_XP4K3AT48A
ROC7W20_XP4K3AT48B

Inspected by Lockwood Gale on date 12/18/2006
LR_dev0.027
LL_dev0.032
FINAL COMMENT by Lockwood GaleNo assembly problems. No wirebonding problems.

PLAQUETTE made READY for testing on 12/18/2006 by Lockwood Gale

P_2x4T_158_Aon 12/18/2006 11:36 AM P_2x4T_158_A-1on 12/18/2006 11:58 AM

PLAQUETTE TESTED on 2006-12-18 by Petra Merkel

[IMAGE] of
IV_XML-File
Maximum Voltage 260 V
[IMAGE] of

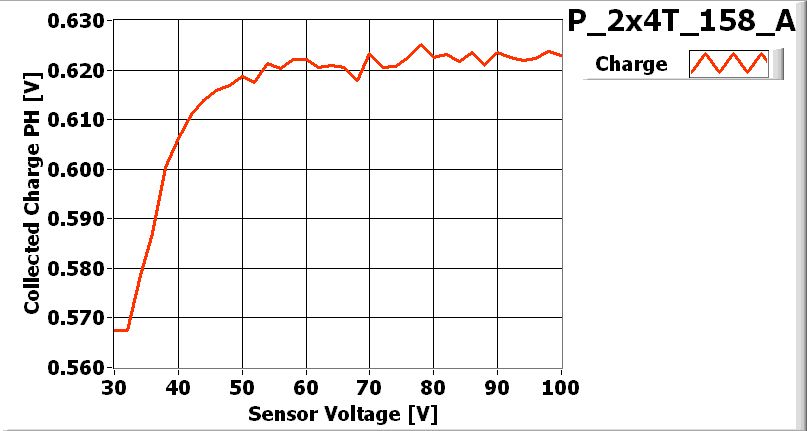

LASER_XML-File
Depletion Voltage 46 V
Operational Voltage 86 V

ROCROC0ROC1ROC2ROC3ROC4ROC5ROC6ROC7
Ibias_DAC136138129140140138135144
Vana131123118125122127129129
Cal_Del7773919373869795
Vthrs_Comp6677667079748270
Unbumped0000417000
Dead0103807000
Noisy00000000
Undecoded00000000
Total BAD01031224000

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

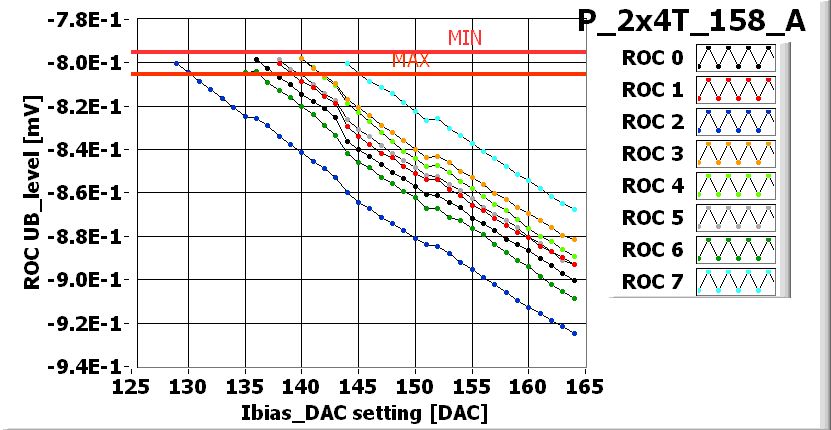

[IMAGE] of I_BIAS_DAC_XML-File

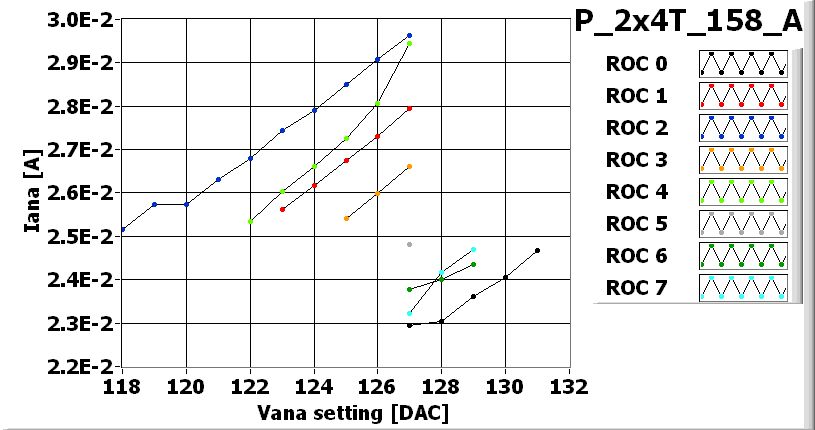

[IMAGE] of VANA_XML-File

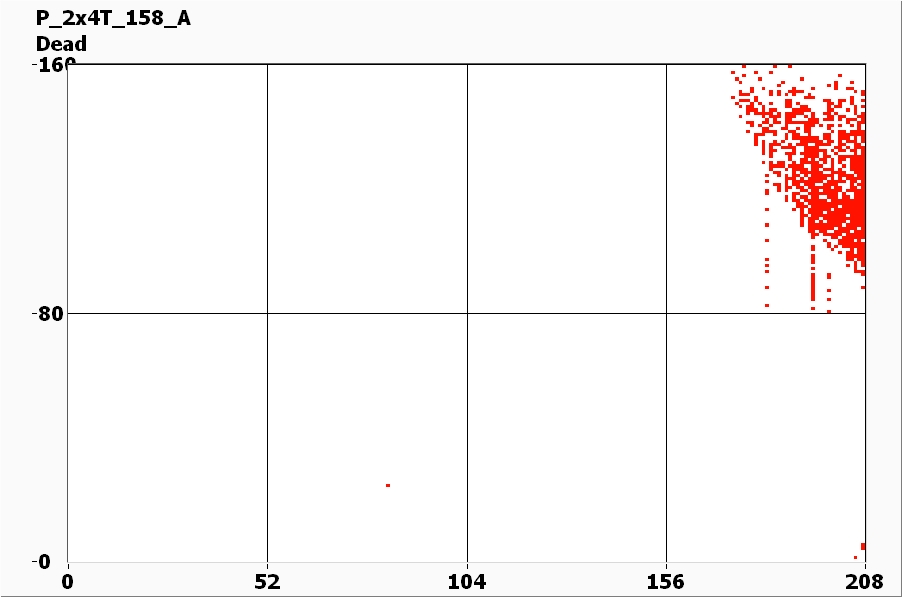

[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File

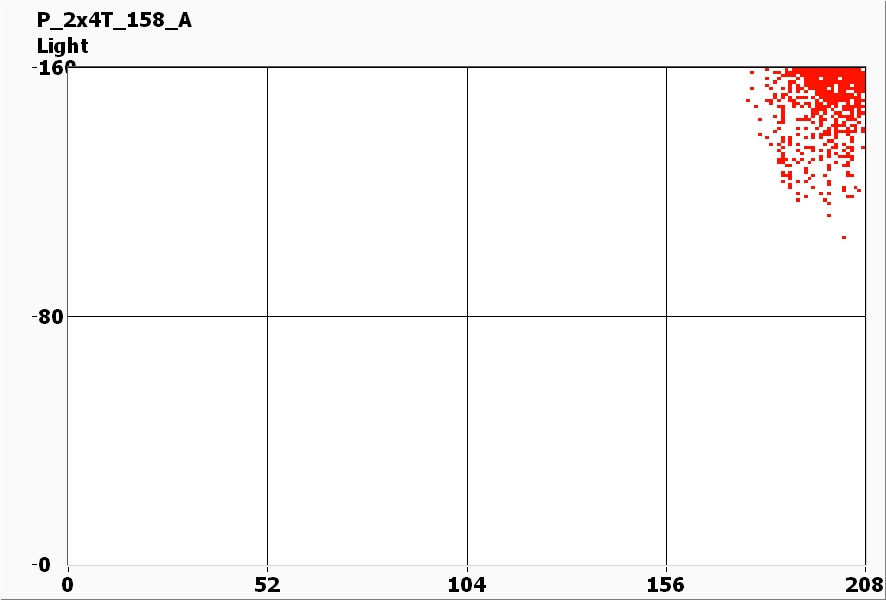

[IMAGE] of LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

P_2x4T_158_A-2on 1/3/2007 10:34 AM P_2x4T_158_A-4on 1/3/2007 10:55 AM

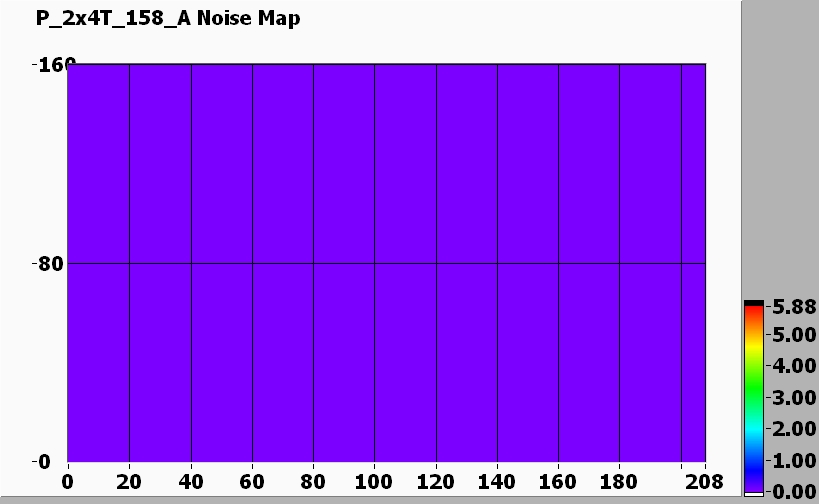

NOISE measurement taken at -100 V and current -7.693988E-08 , Acurrent 0.230376, Dcurrent 0.508562

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

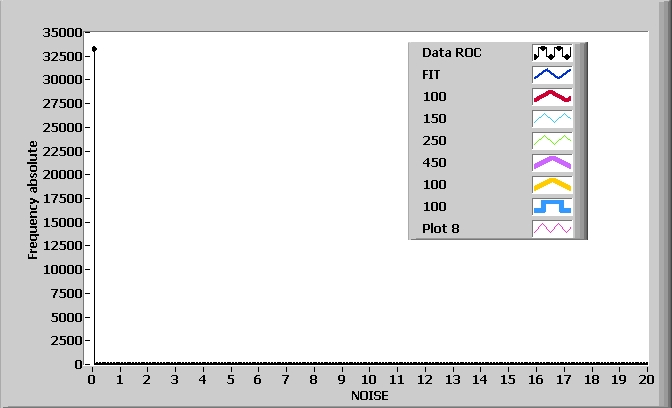

NOISE HISTO

[IMAGE] of

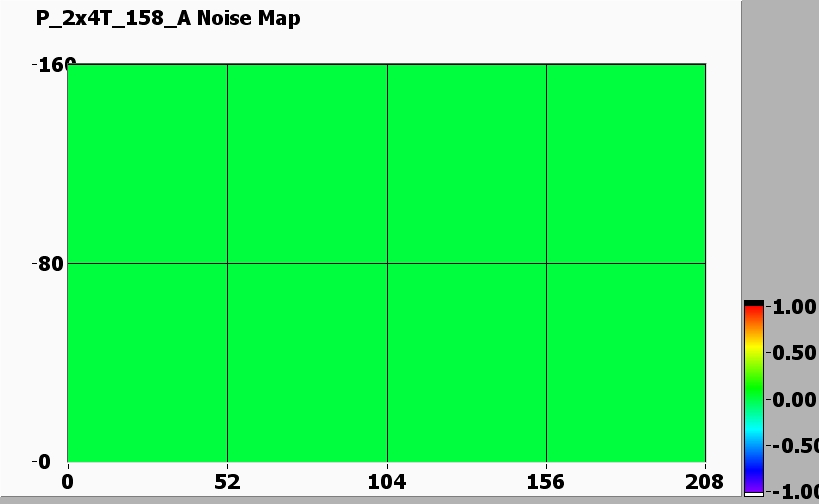

NOISE measurement taken at -101 V and current -7.880328E-08 , Acurrent 0.231018, Dcurrent 0.508542

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

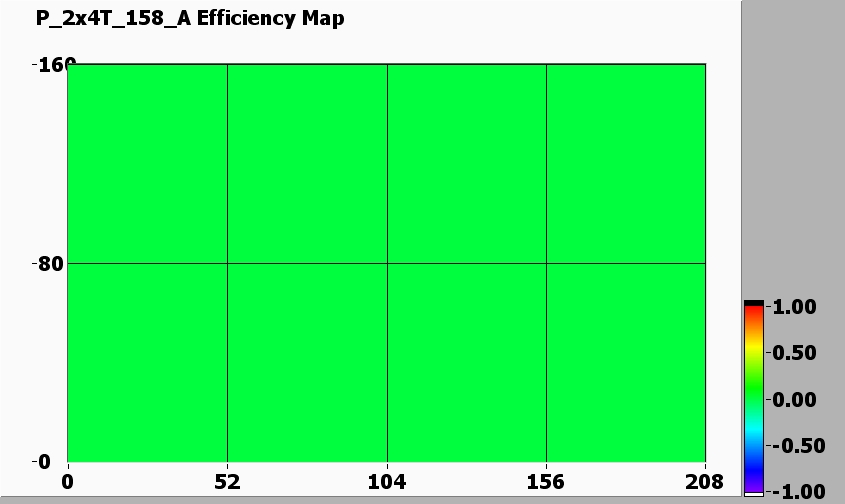

NOISE measurement taken at -103 V and current -8.082927E-08 , Acurrent 0.231131, Dcurrent 0.508570

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

P_2x4T_158_A-7on 5/31/2007 8:47 AM

NOISE measurement taken at -106 V and current -8.362359E-08 , Acurrent 0.227867, Dcurrent 0.519164

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

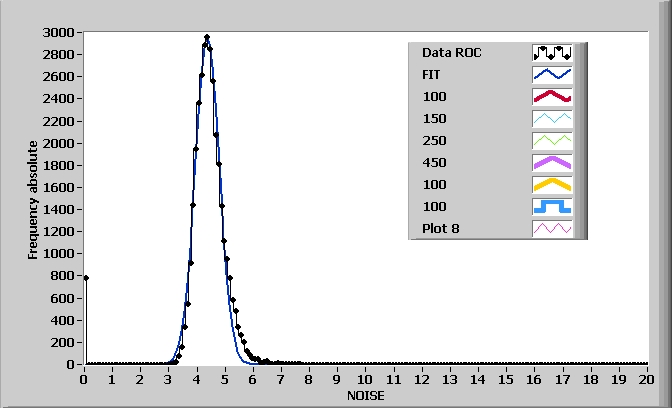

NOISE measurement taken at -107 V and current -8.644074E-08 , Acurrent 0.227976, Dcurrent 0.519062

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

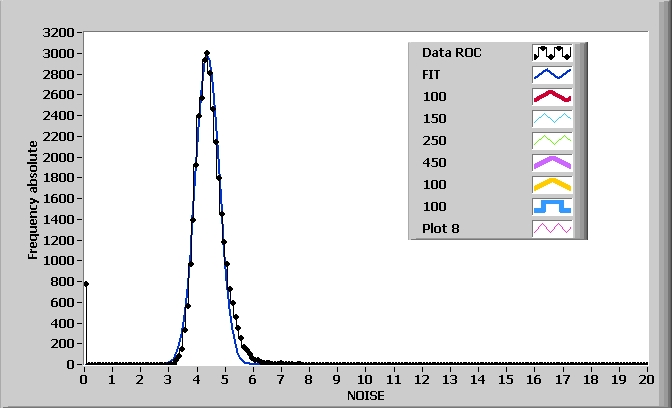

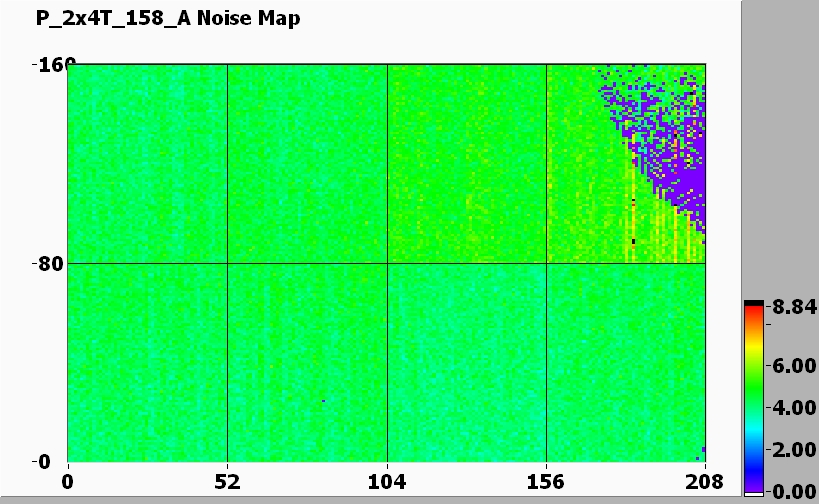

NOISE measurement taken at -108 V and current -9.205617E-08 , Acurrent 0.228162, Dcurrent 0.519121

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

NOISE measurement taken at -109 V and current -1.141117E-07 , Acurrent 0.227838, Dcurrent 0.519195

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

NOISE measurement taken at -110 V and current -1.393923E-07 , Acurrent 0.227495, Dcurrent 0.519128

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

NOISE measurement taken at -111 V and current -1.269043E-07 , Acurrent 0.227899, Dcurrent 0.517576

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

NOISE measurement taken at -112 V and current -1.349066E-07 , Acurrent 0.227693, Dcurrent 0.517402

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

NOISE measurement taken at -113 V and current -1.459835E-07 , Acurrent 0.227535, Dcurrent 0.517450

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

NOISE measurement taken at -114 V and current -1.357894E-07 , Acurrent 0.227398, Dcurrent 0.517373

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

NOISE measurement taken at -115 V and current -1.390983E-07 , Acurrent 0.227139, Dcurrent 0.513595

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

NOISE measurement taken at -116 V and current -1.269284E-07 , Acurrent 0.226990, Dcurrent 0.514988

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

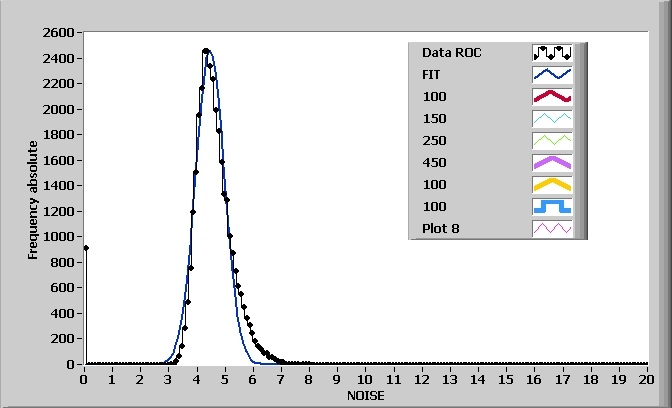

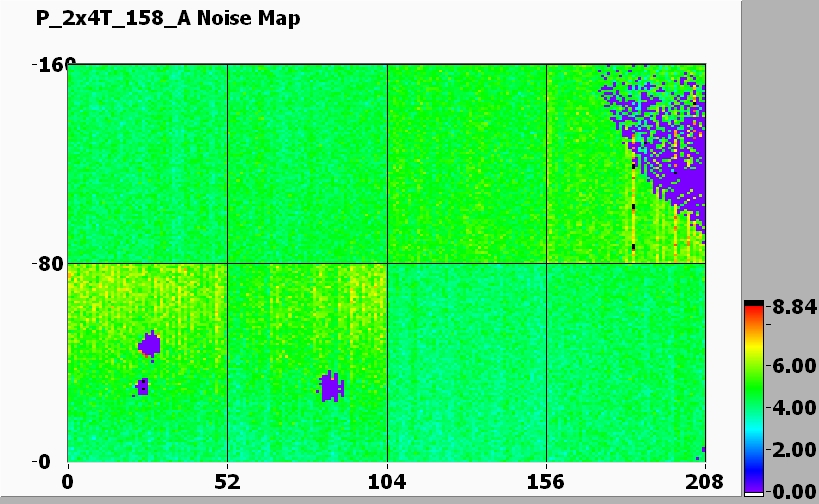

NOISE measurement taken at -117 V and current -1.591151E-07 , Acurrent 0.226493, Dcurrent 0.513650

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

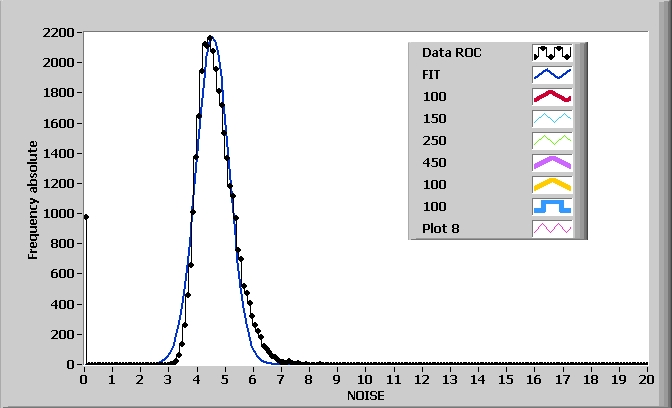

NOISE measurement taken at -118 V and current -1.412245E-07 , Acurrent 0.225931, Dcurrent 0.511808

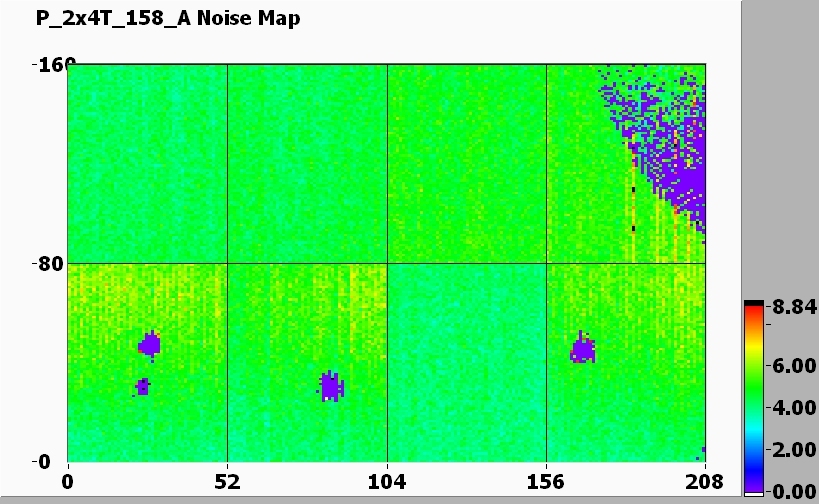

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

NOISE measurement taken at -119 V and current -1.612453E-07 , Acurrent 0.225657, Dcurrent 0.519201

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

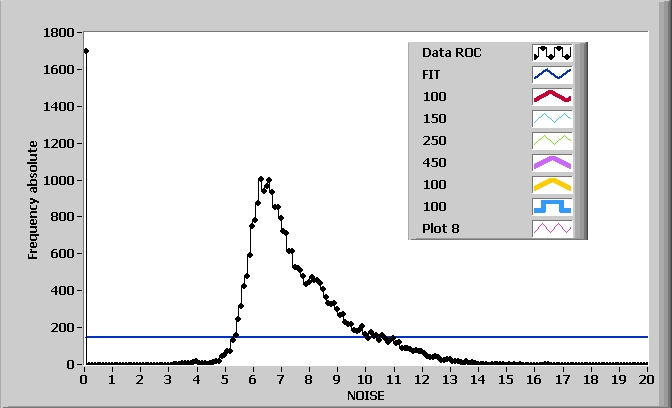

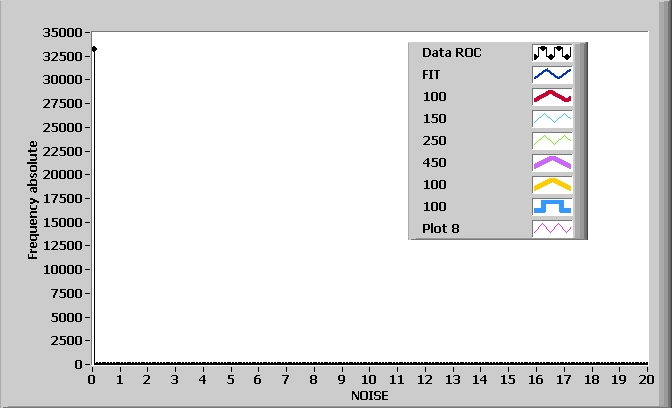

NOISE measurement taken at -120 V and current -4.314444E-10 , Acurrent -0.000675, Dcurrent -0.050621

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

NOISE measurement taken at -121 V and current -1.380246E-07 , Acurrent 0.196651, Dcurrent 0.495698

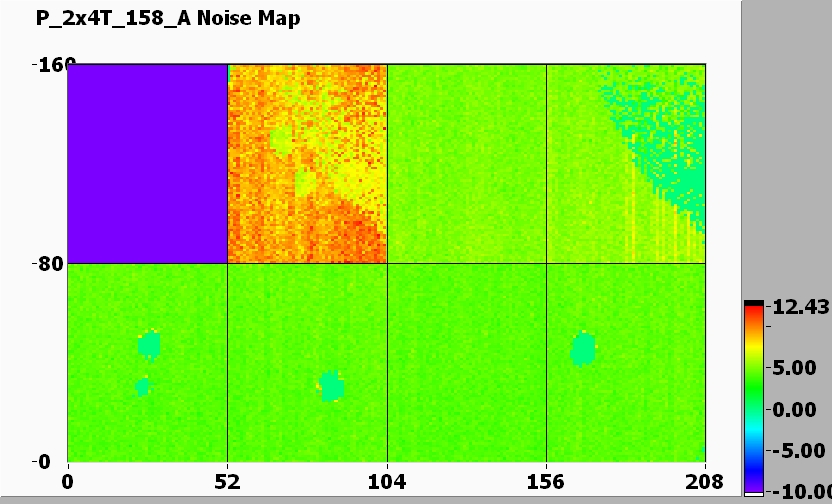

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

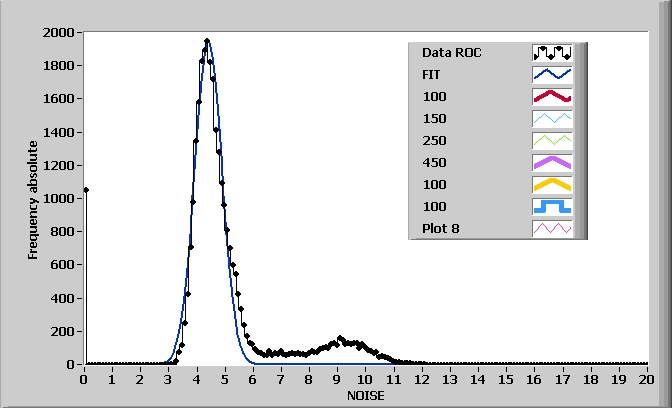

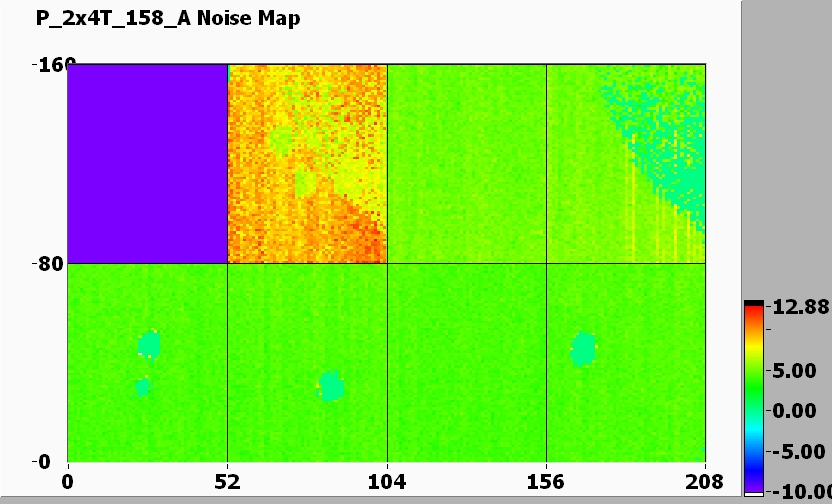

NOISE measurement taken at -122 V and current -7.944638E-07 , Acurrent 0.197354, Dcurrent 0.495688

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

NOISE measurement taken at -125 V and current -1.570277E-07 , Acurrent 0.198805, Dcurrent 0.495506

Noise MAP

[IMAGE] of

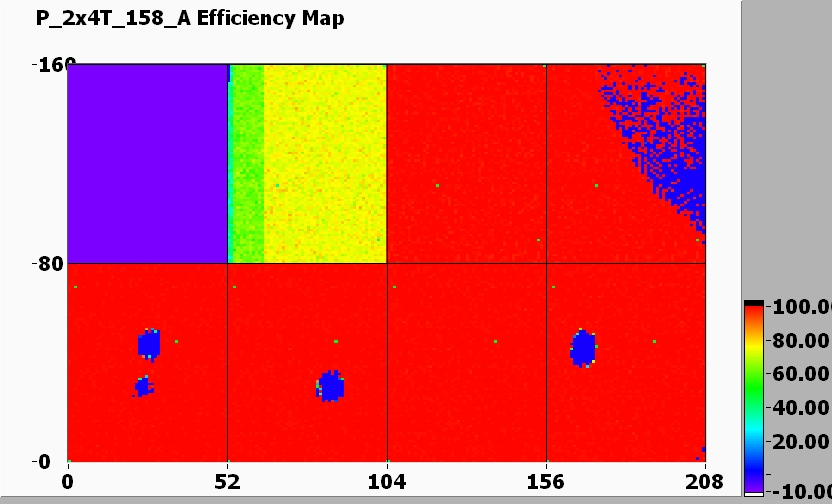

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

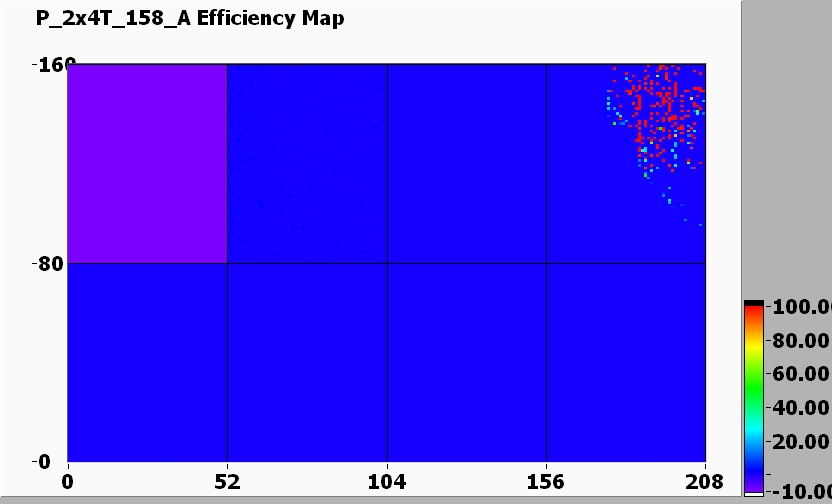

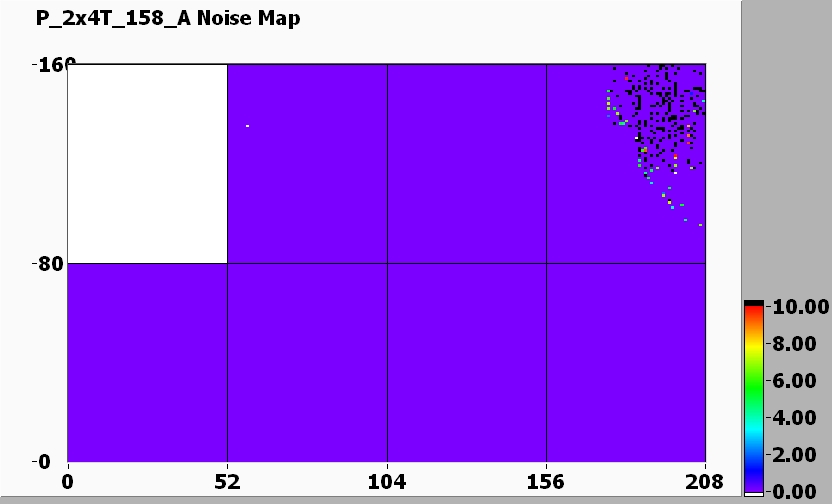

NOISE measurement taken at -127 V and current -1.667244E-07 , Acurrent 0.198841, Dcurrent 0.495447

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

P_2x4T_158_A-8on 6/4/2007 4:35 PM

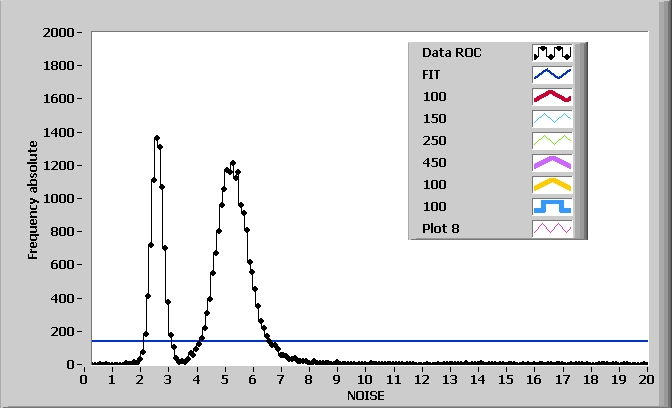

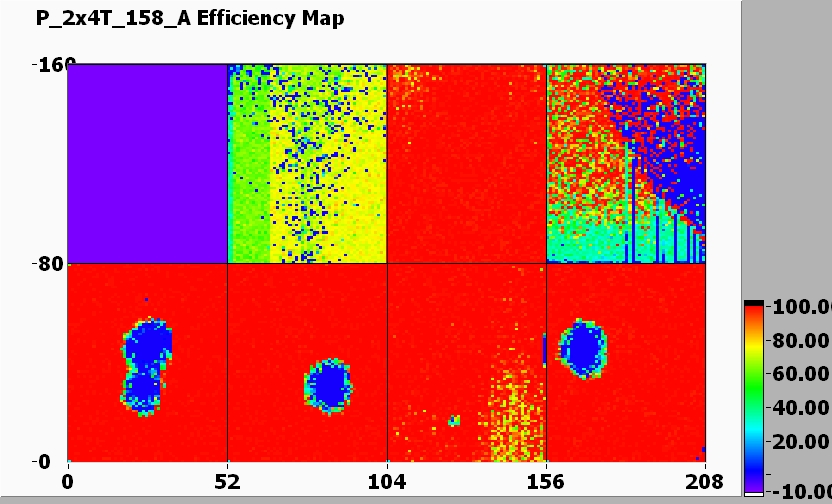

NOISE measurement taken at -129 V and current -1.897128E-07 , Acurrent 0.202073, Dcurrent 0.564041

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

NOISE HISTO

[IMAGE] of

Shipped on date 2007-09-10
