P_2x4T_158_A-7

Production testing

Date:5/31/2007

Operator: Gino Bolla

start testing time:8:47 AM

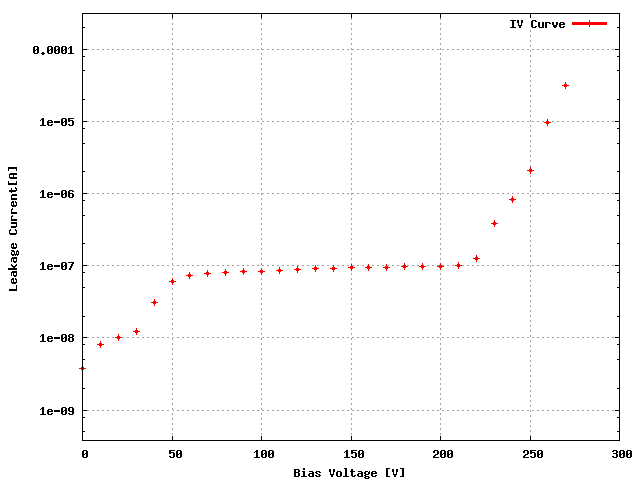

Sensor: S_2x4T_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0W21_XA4KFIT20D
ROC1W21_XA4KFIT20C
ROC2W21_XA4KFIT20B
ROC3W21_XA4KFIT20A
ROC4W21_XA4KFIT15C
ROC5W20_XP4K3AT47D
ROC6W20_XP4K3AT48A
ROC7W20_XP4K3AT48B

Ibias_DAC, Ibias_DAC Data 154 156 146 158 158 156 150 162
Vana, VanaData 129 122 118 124 121 127 127 128
CalDelData and plots7773919373869795
VthrCompData and plots6676676978748170
