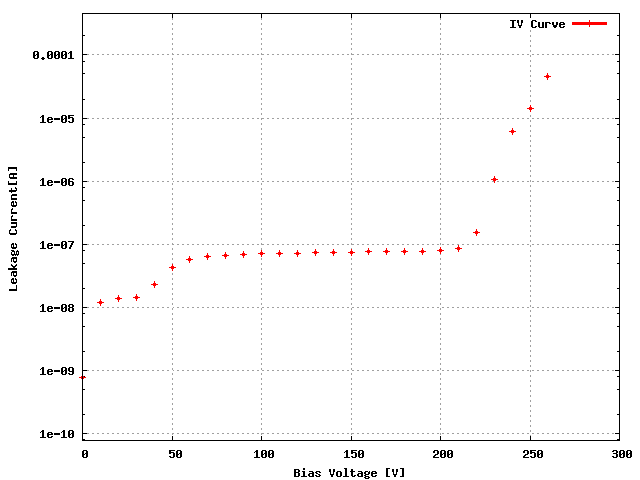

Sensor: S_2x4T_15, Data for leakage current measurement , and plot on overall it is a BAD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W21_XA4KFIT | 20D |
| ROC1 | W21_XA4KFIT | 20C |
| ROC2 | W21_XA4KFIT | 20B |
| ROC3 | W21_XA4KFIT | 20A |
| ROC4 | W21_XA4KFIT | 15C |
| ROC5 | W20_XP4K3AT | 47D |
| ROC6 | W20_XP4K3AT | 48A |
| ROC7 | W20_XP4K3AT | 48B |
| Ibias_DAC, Ibias_DAC Data | 136 | 138 | 129 | 140 | 140 | 138 | 135 | 144 |
| Vana, VanaData | 131 | 123 | 118 | 125 | 122 | 127 | 129 | 129 |
| CalDelData and plots | 77 | 73 | 91 | 93 | 73 | 86 | 97 | 95 |
| VthrCompData and plots | 66 | 77 | 66 | 70 | 79 | 74 | 82 | 70 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 0 | 1 | 0 | 3 | 1077 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 417 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | BAD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | BAD | GOOD | GOOD | GOOD |
Comment (if any): same as before.
This Device have been tested 1Times prior to this one and here are the links to the previous tests:End testing time: 12:18 PM
